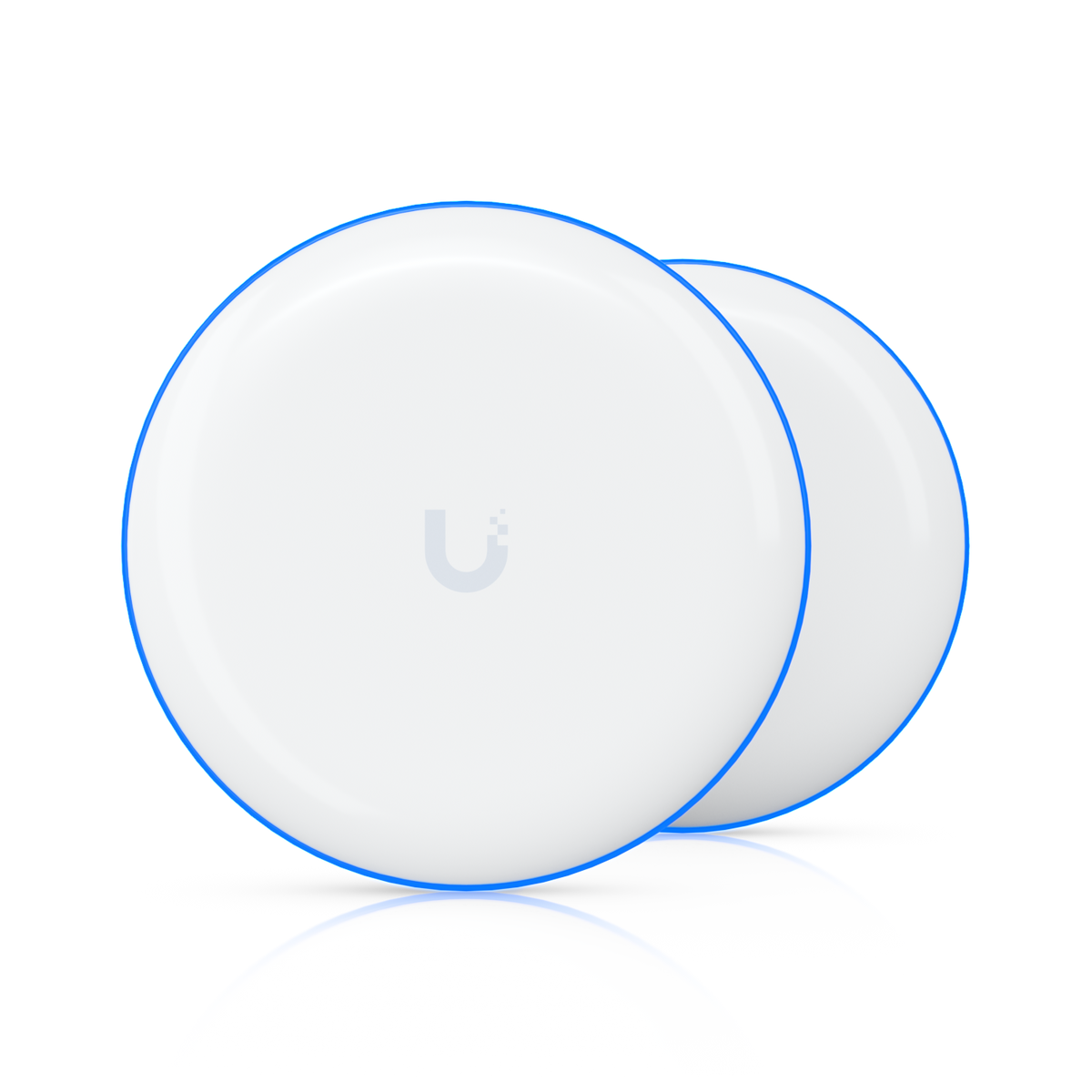

Ubiquiti UBIQUITI-UBB | UniFi Building Bridge Wireless Bridge, 60GHz + 5GHz, WiFi 5, IPX6, PoE

Name: Ubiquiti UBIQUITI-UBB | UniFi Building Bridge Wireless Bridge, 60GHz + 5GHz, WiFi 5, IPX6, PoE
Brand: Ubiquiti
SKU: UBIQUITI-UBB
Price: 1100.55 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UBIQUITI-UBB

In stock:2

$1,100.55 inc. GST

$1,000.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The UniFi Building Bridge is a 60 GHz point-to-point wireless bridge with a 5 GHz WiFi 5 backup radio, designed to link two buildings over line of sight at distances of up to 500 m. The 60 GHz main radio delivers data rates of up to 1.7 Gbps, while the 2x2 MU-MIMO (2 spatial stream) 5 GHz radio keeps the link running at up to 866.6 Mbps if weather degrades the 60 GHz path. It is managed through the UniFi Network application.

Built for outdoor deployment, the bridge has an IPX6 rated, UV-resistant polycarbonate enclosure and supports wall and pole mounting. It is powered over PoE with a Gigabit PoE adapter included, and connects to the network through a single GbE RJ45 port. A built-in LED ring assists with alignment, making it a practical option for extending a network between sites without trenching cable. The kit is supplied as a pair of units with mounts.

Features

- Links two networks across buildings with a 60 GHz radio
- 5 GHz backup radio keeps the link up if weather degrades the 60 GHz path
- Managed through the UniFi Network application
- Built-in LED ring helps with alignment
- Gigabit PoE adapters included
- UV-resistant polycarbonate enclosure, IPX6 rated
- Sold as a 2-unit kit with mounts

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 60 GHz main radio, up to 1.7 Gbps data rate
- 5 GHz backup radio, 2x2 MU-MIMO, up to 866.6 Mbps (BW80)
- WiFi 5, 2 spatial streams
- Range up to 500 m (1,640 ft)
- 1 x GbE RJ45 port
- PoE powered, PoE adapter included, supported voltage range 44-57V DC
- Maximum power consumption 11 W
- Antenna gain: 17.2 dBi (60 GHz), 10 dBi (5 GHz)
- TX power: 19 dBm (60 GHz), 25 dBm (5 GHz)
- IPX6 weatherproofing
- UV-resistant polycarbonate enclosure
- Wall and pole mounting
- Dimensions: 140 x 90 mm
- Weight: 376 g
- Wireless security: WPA2 AES
- Management via Ethernet and Bluetooth
- Operating mode: point-to-point (PtP)

FAQs

Q: What is the maximum range of the UniFi Building Bridge?
A: The Building Bridge supports line-of-sight links of up to 500 m (1,640 ft).

Q: What happens to the link in bad weather?
A: The 60 GHz radio can be affected by weather. The built-in 5 GHz WiFi 5 backup radio, with 2x2 MU-MIMO and up to 866.6 Mbps, keeps the link up when the 60 GHz path degrades.

Q: How is the Building Bridge powered?
A: It is powered over PoE with passive 48V, and a Gigabit PoE adapter is included. The supported voltage range is 44-57V DC and maximum power consumption is 11 W.

Q: Can it be mounted outdoors?
A: Yes. It has an IPX6 rated, UV-resistant polycarbonate enclosure and supports wall and pole mounting.

Q: How is the bridge managed?
A: It is managed through the UniFi Network application, with management available over Ethernet and Bluetooth.

Q: Does this come as a single unit or a pair?
A: It is sold as a 2-unit kit with mounts, so both ends of the point-to-point link are covered.
