Ubiquiti LOCO5AC | airMAX NanoStation 5AC Loco CPE, 5 GHz, 13 dBi, 1x GbE

Name: Ubiquiti LOCO5AC | airMAX NanoStation 5AC Loco CPE, 5 GHz, 13 dBi, 1x GbE
Brand: Ubiquiti
SKU: LOCO5AC
Price: 95.31 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:LOCO5AC

In stock:270

$95.31 inc. GST

$86.65 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

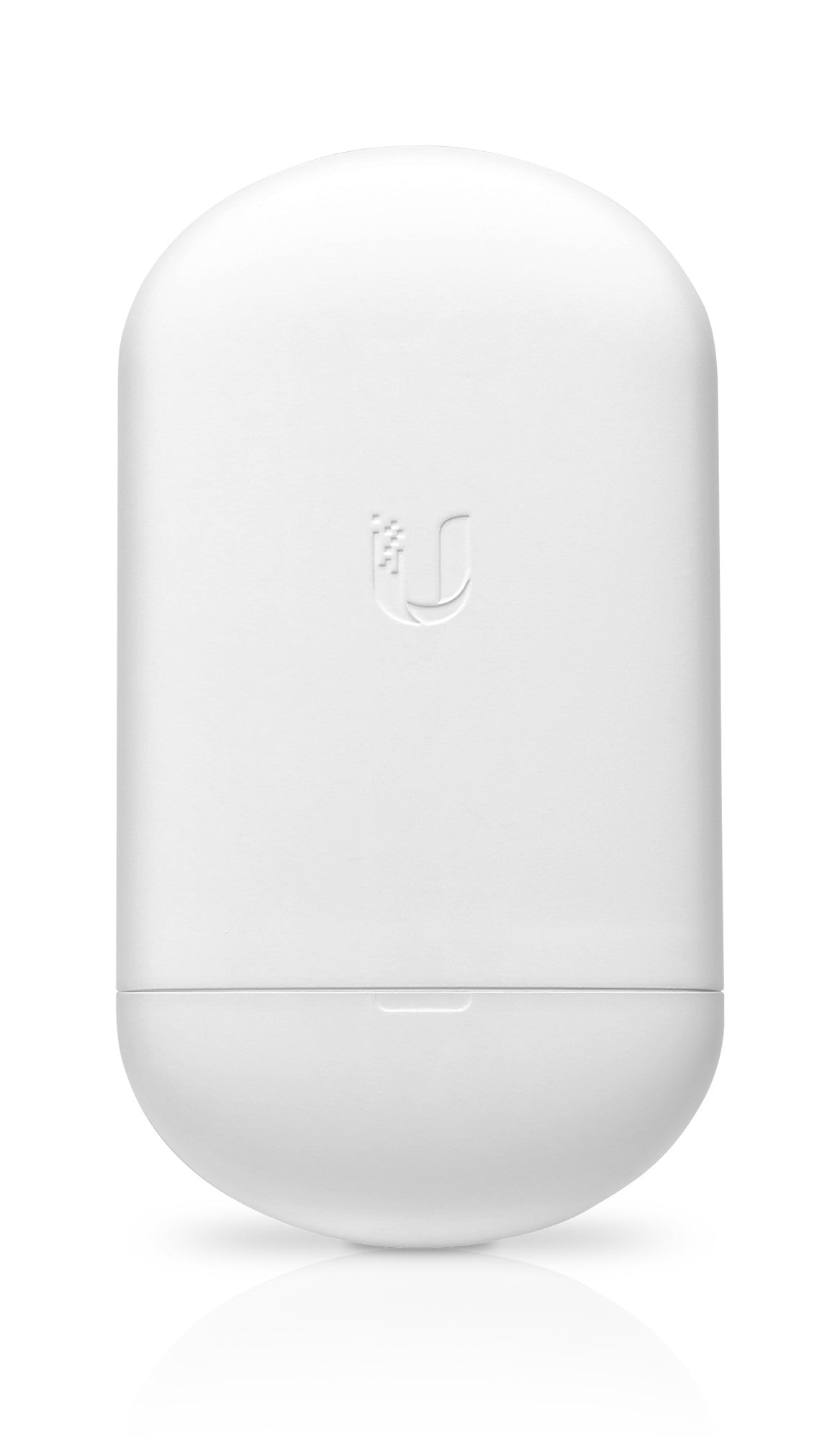

The Ubiquiti LOCO5AC (NS-5ACL) is a 5 GHz airMAX AC outdoor CPE radio with a built-in 13 dBi antenna and a single Gigabit Ethernet port. Compact and UISP-ready, it delivers up to 450+ Mbps for point-to-point and point-to-multipoint links, and runs in Access Point or Station mode. This version is supplied without a PoE injector.

Powered by passive PoE (22-27V DC, 7W maximum), the NanoStation 5AC Loco suits rooftop, pole and tower deployments thanks to a UV-stabilised polycarbonate enclosure, included pole-mount kit and an operating range of -40 to 70 degrees C. A separate Wi-Fi radio allows simple setup via the mobile app, and airOS 8 provides airMAX AC protocol support for scalable wireless backhaul and last-mile networks.

Features

- airMAX AC protocol support with airOS 8
- Access Point PtMP airMAX mixed mode
- Long-range point-to-point link mode
- Selectable channel width and automatic channel selection
- Automatic and manual transmit power control
- Automatic distance selection (ACK timing)
- WPA2 security
- Traffic shaping with burst support
- UISP-ready management
- Separate Wi-Fi radio for easy setup via mobile app
- Pole-mount kit included

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: NS-5ACL (Loco5AC)
- Frequency: 5 GHz (5150-5875 MHz)
- Built-in antenna gain: 13 dBi
- Throughput: up to 450+ Mbps
- Network interface: 1x 10/100/1000 Mbps GbE RJ45 port
- Power method: passive PoE 2-pair (pins 4,5+; 7,8 return)
- Supported voltage range: 22-27V DC
- Maximum power consumption: 7W
- Processor: MIPS 74K, 64 MB DDR2 memory
- Channel widths: PtP 10/20/30/40/50/60/80 MHz, PtMP 10/20/30/40 MHz
- Dimensions: 179 x 77.5 x 59.1 mm, weight 180 g
- Enclosure: UV-stabilised polycarbonate, pole mount included
- Operating temperature: -40 to 70 degrees C, humidity 5-95% non-condensing
- ESD/EMP protection: 24kV contact/air
- Operating modes: Access Point, Station
- NDAA compliant
- PoE injector (24V, 0.3A) not included

FAQs

Q: Does the LOCO5AC include a PoE injector?
A: No. This model is supplied without a PoE injector. It requires a 24V passive PoE supply (0.3A gigabit PoE) purchased separately.

Q: What frequency band does the NanoStation 5AC Loco use?
A: It operates in the 5 GHz band (5150-5875 MHz) with a built-in 13 dBi antenna.

Q: What throughput can I expect?
A: The radio delivers up to 450+ Mbps using airMAX AC, with channel widths of up to 80 MHz in point-to-point mode.

Q: Can it be used for both point-to-point and point-to-multipoint links?
A: Yes. It supports Access Point and Station modes, including airMAX PtMP mixed mode and long-range PtP link mode.

Q: How is the LOCO5AC powered?
A: It uses 2-pair passive PoE at 22-27V DC through its Gigabit Ethernet port, with a maximum power consumption of 7W.

Q: Is it suitable for outdoor installation?
A: Yes. It has a UV-stabilised polycarbonate enclosure, an operating range of -40 to 70 degrees C, ESD/EMP protection, and a pole-mount kit is included.
