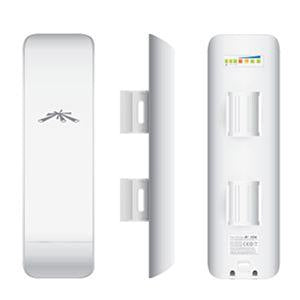

• Ubiquiti NanoStation M5 white rectangular wireless AP rear view
1 1

Ubiquiti

Ubiquiti NSM5-AU | NanoStation M5 Outdoor Bridge/AP with airMAX, 5GHz 2x2 MIMO, 16 dBi, 24V PoE

Ubiquiti NSM5-AU | NanoStation M5 Outdoor Bridge/AP with airMAX, 5GHz 2x2 MIMO, 16 dBi, 24V PoE

NSM5-AU

In stock:1

$178.37 AUD
$178.37 AUD
$178.37 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

NanoStation M5 is a rugged outdoor 5GHz 2x2 MIMO bridge/access point with an integrated 16 dBi directional antenna and airMAX TDMA for long‑range, low‑latency links.. Ideal for point‑to‑point backhaul or point‑to‑multipoint CPE, it ships with a 24V passive PoE injector and features a secondary Ethernet port for flexible deployments.. Designed for rapid install and reliable operation, it offers simple web‑based management (airOS/UISP), alignment LEDs, and a weather‑resistant enclosure. This AU variant is compliant for Australian spectrum use and is backed by the manufacturer’s limited warranty.. Need it fast?. iptrading.com.au delivers across Australia — shop now. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Long‑range connectivity with integrated 16 dBi antenna
- Low‑latency performance using airMAX TDMA
- Simple single‑cable installation via 24V passive PoE
- Secondary Ethernet with PoE passthrough for flexible deployments
- Weather‑resistant design for dependable outdoor operation
- Fast setup and alignment with airOS and signal LEDs

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Outdoor wireless bridge/access point (CPE)
- Radio: 5GHz 802.11a/n, 2x2 MIMO
- Integrated antenna: 16 dBi directional panel
- airMAX TDMA protocol support
- Channel widths: 5/10/20/40 MHz
- Throughput: up to 150+ Mbps (real TCP/IP, environment dependent)
- Ethernet: 2 x 10/100 Mbps RJ45
- Port 1: 24V passive PoE In
- Port 2: Secondary Ethernet with software‑enabled 24V PoE passthrough
- Power adapter: 24V passive PoE injector included (AU plug)
- Max power consumption: 8 W (approx.)
- Operating temperature: -30 to 75°C (approx.)
- Enclosure: weather‑resistant, UV‑stabilised outdoor housing
- Mounting: pole‑mount hardware included
- Typical link range: up to 15+ km line‑of‑sight (deployment dependent)
- Management: airOS web UI; UISP compatible for monitoring

FAQs

Q: What applications is the NanoStation M5 best suited for?
A: It’s ideal for long‑range point‑to‑point backhaul links and point‑to‑multipoint client CPE roles, providing stable throughput and low latency using airMAX TDMA.

Q: Does the NSM5 use 802.3af/at PoE?
A: No. It uses 24V passive PoE. Use the included 24V PoE injector or a compatible 24V passive PoE switch.

Q: Can I manage this with the UniFi Network application?
A: No. This is an airMAX device. Manage it via the built‑in airOS web interface and optionally monitor it with UISP.

Q: How far can a point‑to‑point link reach with the NSM5?
A: With clear line‑of‑sight, proper alignment, and minimal interference, links of 15+ km are achievable. Actual results depend on environment and configuration.

Q: What’s included in the box?
A: NanoStation M5 unit, pole‑mount strap, 24V passive PoE injector, and AU power cord.

Q: Can I purchase the NSM5 in Australia from IP Trading?
A: Yes. IP Trading supplies the NSM5 AU variant with fast nationwide delivery and GST‑compliant invoicing.
