Ubiquiti

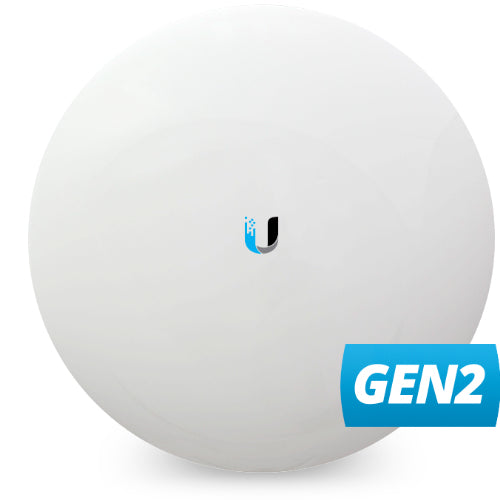

Ubiquiti NBE-5AC-GEN2-AU | NanoBeam 5AC Gen2 5 GHz Outdoor Bridge, 450 Mbps, 19 dBi, 1 x GbE PoE

Ubiquiti NBE-5AC-GEN2-AU | NanoBeam 5AC Gen2 5 GHz Outdoor Bridge, 450 Mbps, 19 dBi, 1 x GbE PoE

NBE-5AC-GEN2-AU

In stock:4

$192.28 AUD
$192.28 AUD
$192.28 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Build long‑range 5 GHz links with the NanoBeam 5AC Gen2.. This integrated 19 dBi dish CPE focuses RF energy for high throughput up to 450 Mbps, with a Gigabit Ethernet PoE port and a durable outdoor design ideal for point‑to‑point backhaul or subscriber CPE.. Gen2 adds a dedicated 2.4 GHz Wi‑Fi management radio for quick app‑based setup and alignment, plus a refined mount for precise aiming. Backed by a 1‑year limited manufacturer’s warranty and compatible with 24V passive PoE.. Need it fast?. iptrading.com.au delivers across Australia — shop now. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Long‑range 5 GHz backhaul up to 450 Mbps
- 19 dBi high‑gain dish for focused, interference‑resistant links
- Gigabit Ethernet for full‑rate throughput
- Fast app‑based setup via built‑in 2.4 GHz management radio
- Single‑cable installation with 24V passive PoE
- Precise alignment using integrated ball‑joint mount
- Rugged outdoor design for reliable field deployment

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: 5 GHz outdoor wireless bridge/CPE
- Antenna: Integrated 19 dBi directional dish
- Wireless standard: 802.11ac (airMAX ac)
- Max TCP/IP throughput: up to 450 Mbps
- Ethernet interfaces: 1 x 10/100/1000 RJ45 (PoE In)
- Power: 24V passive PoE input
- Management radio: 2.4 GHz Wi‑Fi (Gen2) for setup/alignment
- Mounting: Integrated ball‑joint pole mount
- Typical link distance: up to 15+ km line‑of‑sight (environment dependent)
- Operating frequency: 5 GHz band (region dependent)

FAQs

Q: What kind of wireless links is the NanoBeam 5AC Gen2 best suited for?
A: It’s ideal for long‑range 5 GHz point‑to‑point backhaul and point‑to‑multipoint CPE links where a focused, high‑gain antenna and compact form factor are required.

Q: What power method does it use?
A: It uses 24V passive PoE via its Gigabit Ethernet port. Ensure your injector or PoE switch supports 24V passive PoE.

Q: How far can it link?
A: With clear line‑of‑sight and proper planning, links of 15 km or more are achievable. Actual distance and throughput depend on environment and alignment.

Q: Can it operate as an access point or only as a station?
A: It supports both roles for airMAX ac—use it as an AP for PtMP sectors or as a station/CPE or for PtP bridges.

Q: Is it compatible with older airMAX M devices?
A: It’s an airMAX ac device; for optimal performance pair with other airMAX ac radios. It does not interoperate with airMAX M in ac mode.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading supplies genuine Australian stock and ships nationwide. Order online or contact the team for quotes and availability.
