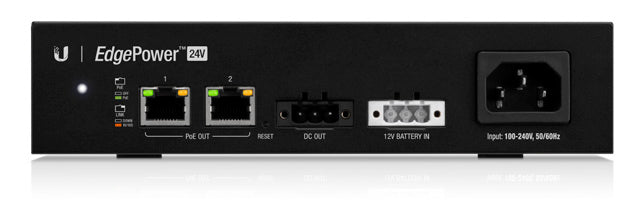

Ubiquiti EP-24V-72W | EdgePower UPS DC Power Supply, 24V 72W, 2x PoE, AU Plug

Authorised Ubiquiti Partner

SKU:EP-24V-72W

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Ubiquiti EdgePower EP-24V-72W is a 24V 72W UPS and DC power supply with two passive PoE outputs, supplied with an Australian plug power cord. It converts universal 100-240V AC input to 24V DC and switches to an external 12V lead-acid battery during a mains outage, keeping connected wireless and networking gear online.

Built for WISPs and field deployments, the EP-24V-72W supports UISP remote management with power-outage alerts. The compact chassis can be rack-mounted or wall-mounted, and the package includes mount brackets, screws and wall mount anchors. The 12V lead-acid battery is not included.

Features

- Reliable and convenient UPS for WISPs
- UISP remote management
- Automatic alerts for power outages
- Rack-mount or wall-mount options
- Two passive 24V PoE ports
- Universal 100-240V AC input
- Switches to external 12V lead-acid battery during outages

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Dimensions: 192 x 43.7 x 115 mm
- Weight: 650 g
- Networking: 2x 10/100 Mbps RJ45 ports
- Management interface: Ethernet In-Band
- AC input: 100-240V AC, 50-60 Hz, universal input
- Battery input: 12V DC lead-acid battery via DC terminal block (battery not included)
- PoE output: 2x 24V DC passive PoE (pins 4, 5+; 7, 8-)
- DC output: 24V, 3A
- Max power output: 72W, system consumption 2W
- ESD/EMP protection: Air ±12kV, contact ±12kV
- Operating temperature: 0 to 40°C
- Power cord: AU plug
- Package includes mount brackets, screws, wall mount anchors and power cord

FAQs

Q: Does the EP-24V-72W include a battery?
A: No. It operates with an external 12V lead-acid battery connected via the DC terminal block, and the battery is not included.

Q: How many PoE devices can it power?
A: It has two passive 24V PoE output ports, with a maximum total output of 72W (24V, 3A).

Q: What type of PoE does it provide?
A: Passive 24V DC PoE on pins 4, 5+ and 7, 8-. It is not 802.3af/at PoE, so only connect devices designed for 24V passive PoE.

Q: Can it be managed remotely?
A: Yes. It supports UISP remote management and sends automatic alerts for power outages.

Q: How can it be mounted?
A: It can be rack-mounted or wall-mounted. Mount brackets, screws and wall mount anchors are included.

Q: What mains input does it accept?
A: Universal 100-240V AC at 50-60 Hz. This SKU ships with an AU plug power cord.
