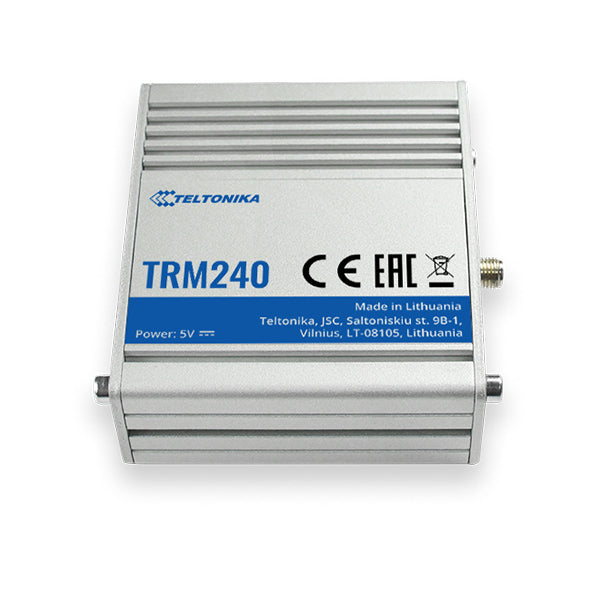

Teltonika TRM240 | Industrial 4G LTE Cat 1 Modem, USB, Mini SIM, Antenna

Authorised Teltonika Partner

SKU:TRM240

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Teltonika TRM240 is a compact industrial 4G LTE Cat 1 USB modem for adding cellular connectivity to industrial and IIoT equipment. This Standard Package variant uses a Mini SIM slot, connects over USB and ships with an LTE swivel antenna. It delivers up to 10 Mbps downlink and 5 Mbps uplink, with fallback to 3G and 2G networks.

The rugged aluminium housing is rated IP30 and operates from -40 °C to 75 °C, so it suits harsh cabinet and field installations. It can be mounted on a DIN rail or a flat surface, is powered over USB at 5 V with low power consumption, and offers drivers for Windows, Linux and Android with Windows Connection Manager (NDIS), USB serial and AT command support.

Features

- LTE Cat 1 for M2M/IoT communications
- Rugged aluminium housing
- Configurable via USB
- Low power consumption
- Compact size, easy integration
- External antenna for better signal coverage
- Backwards compatible with 3G and 2G
- Windows Connection Manager (NDIS), USB serial, and AT command support
- Drivers for Windows, Linux and Android

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- LTE Cat 1: up to 10 Mbps downlink / 5 Mbps uplink
- 3G: up to 42 Mbps
- 2G: up to 236.8 kbps
- 1 x microUSB port for power and data
- 5 V input via USB, 3.2 W max power consumption
- 1 x SIM slot (Mini SIM 2FF, 1.8V/3V)
- 1 x SMA antenna connector (LTE)
- Status LEDs: Power, Network, LTE
- Aluminium housing, IP30
- Dimensions: 74.5 x 64.5 x 25 mm
- Weight: 131 g
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Mounting: DIN rail or flat surface
- Kit: LTE swivel SMA antenna, 0.8 m Micro-USB cable, hex key, QSG

FAQs

Q: What SIM size does the TRM240 use?
A: This Standard Package variant has one Mini SIM (2FF) slot supporting 1.8V and 3V SIM cards.

Q: How is the TRM240 powered?
A: It is powered over its microUSB port from a 5 V USB source, with a maximum power consumption of 3.2 W. The same port carries data.

Q: What is included in the box?
A: The kit includes an LTE swivel SMA antenna, a 0.8 m Micro-USB cable, a hex key and a quick start guide.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and Android. It supports Windows Connection Manager (NDIS), USB serial and AT commands.

Q: What network speeds does it support?
A: LTE Cat 1 up to 10 Mbps downlink and 5 Mbps uplink, with fallback to 3G at up to 42 Mbps and 2G at up to 236.8 kbps.

Q: Can the TRM240 be installed in harsh environments?
A: Yes. It has an IP30 aluminium housing and operates from -40 °C to 75 °C, and it can be mounted on a DIN rail or flat surface.
