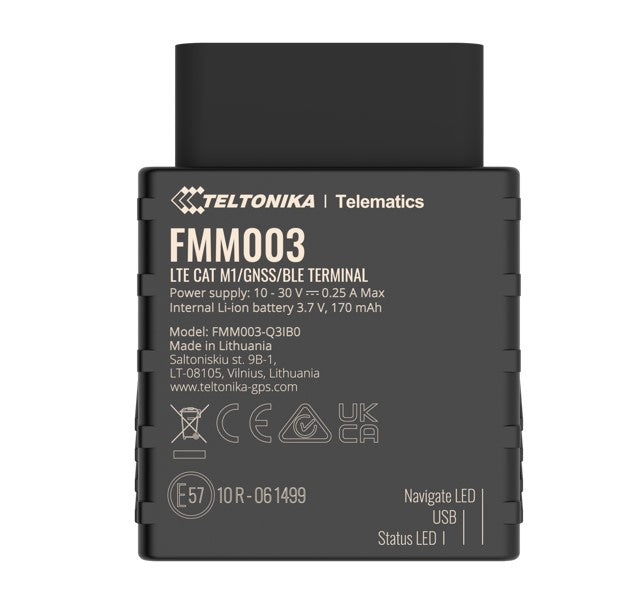

• Black Teltonika FMM003 LTE Cat M1 GNSS BLE tracker with matte finish
1 1

Teltonika

Teltonika FMM0037FAU01 | FMM003 LTE Cat M1 OBDII GPS Tracker, OEM Data, Bluetooth

Teltonika FMM0037FAU01 | FMM003 LTE Cat M1 OBDII GPS Tracker, OEM Data, Bluetooth

Authorised Teltonika Partner

FMM0037FAU01

In stock:5

$179.63 inc. GST
$163.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FMM003 is a compact plug-and-play OBDII GPS tracker with LTE Cat M1 connectivity, NB-IoT and a 2G fallback. This AU package model includes Advanced OBD OEM data reading, so it can pull real vehicle parameters such as the true odometer and fuel level directly from the vehicle's OBD port. Bluetooth 4.0 LE is built in, making it a strong fit for fleet management, telematics and vehicle rental deployments.

The tracker uses a Quectel BG95-M3 module and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou), with internal high-gain antennas and a built-in movement sensor. Smart data acquisition can be triggered by time, speed, angle, distance, ignition or I/O events, and 128 MB of internal flash holds records when coverage is unavailable. A 170 mAh backup battery keeps the unit reporting if vehicle power is lost.

Features

- OEM OBD data reading for real odometer and fuel level
- Compact plug-and-play OBDII form factor
- Internal high-gain GNSS and GSM antennas
- Built-in movement sensor
- Smart data acquisition based on time, speed, angle, distance, ignition or I/O events
- GPRS and SMS I/O events
- Virtual odometer
- Jamming detection
- Real-time tracking

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- LTE Cat M1 / Cat NB2 with 2G (EGPRS) fallback
- Quectel BG95-M3 module
- GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
- Bluetooth 4.0 LE
- OEM OBD data reading (real odometer and fuel level)
- Standard OBD-II connector, Mini/Micro USB
- 128 MB internal flash (422,400 records)
- 170 mAh Li-ion backup battery
- Input voltage 10-30 V DC
- Operating temperature -40 to +85 C (without battery)
- Dimensions 67.2 x 49.6 x 25 mm, weight 63 g
- Ingress protection IP41

FAQs

Q: What connectivity does the FMM003 use?
A: It uses LTE Cat M1 and Cat NB2 (NB-IoT) with a 2G (EGPRS) fallback, built on the Quectel BG95-M3 module.

Q: What does Advanced OBD OEM data reading provide?
A: It reads OEM vehicle parameters (PIDs) over the OBD port, including real odometer and real fuel level, rather than only estimated values.

Q: How does the tracker connect to the vehicle?
A: It plugs directly into the standard OBD-II port and accepts 10-30 V DC input, so no separate wiring is needed.

Q: Does it keep working if vehicle power is disconnected?
A: Yes. A 170 mAh Li-ion backup battery keeps the unit operating briefly after power loss.

Q: Which satellite systems does it support?
A: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS and AGPS, with position accuracy under 2.5 m CEP.

Q: How much data can it store when there is no coverage?
A: The 128 MB internal flash stores up to 422,400 records until the device reconnects.
