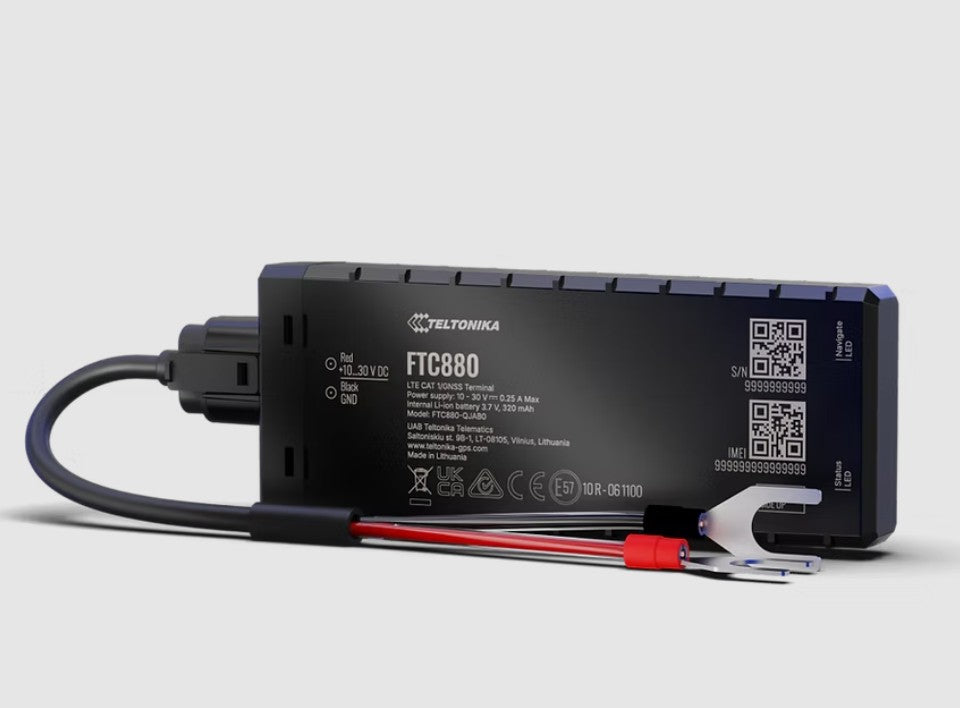

• Black teltonika ftc880aaau801 4g lte cat 1 vehicle gps tracker with coiled cable and red terminal connectors

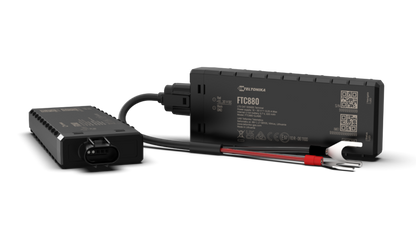

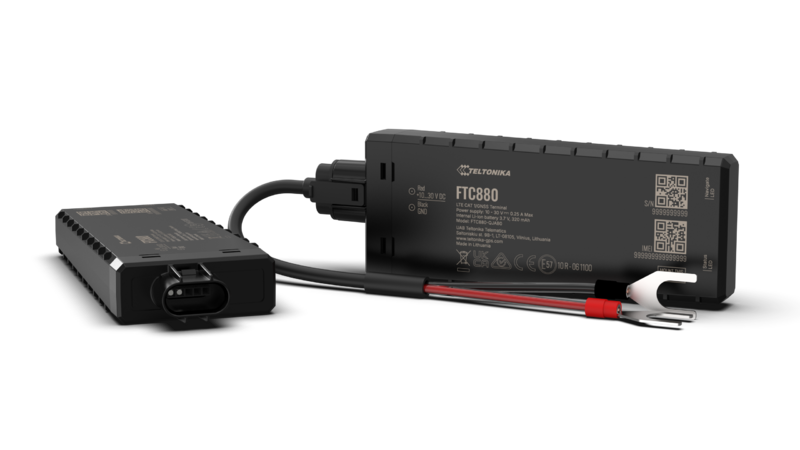

  • Black rectangular teltonika ftc880 4g lte cat 1 vehicle gps tracker with certification marks on the back side
1 2

Teltonika

Teltonika FTC880AAU801 | FTC880 4G LTE Cat 1 Vehicle GPS Tracker, IP69K, Multi-GNSS

Teltonika FTC880AAU801 | FTC880 4G LTE Cat 1 Vehicle GPS Tracker, IP69K, Multi-GNSS

FTC880AAU801

In stock:1

$136.62 inc. GST
$124.20 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FTC880 is a next-generation 4G LTE Cat 1 vehicle GPS tracker designed for fast, tool-free deployment across commercial and fleet vehicle applications. Mounting directly to the vehicle battery via a U-type clamp cable, it requires no specialist knowledge or additional wiring — making it ideal for large-scale fleet rollouts. The FTC880 features enhanced multi-GNSS accuracy (GPS, GLONASS, Galileo, BeiDou) with up to 41 visible satellites, sub-1.5m CEP position accuracy, and an IP69K-rated casing that withstands dust, high-pressure jets, and steam — ensuring reliable tracking in the harshest operating environments.

Built on Teltonika's next-generation FT Platform, the FTC880 supports smart fleet scenarios including Green Driving, Over Speeding, Jamming Detection, Auto Geofence, and crash/towing/unplug detection via its built-in accelerometer. Optimised sleep modes minimise vehicle battery drain, while remote FOTA updates and configuration via USB, Bluetooth, SMS, or GPRS reduce ongoing maintenance overhead. RCM-certified for the Australian market and backed by expert local support. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Next-generation FT Platform with advanced firmware and hardware architecture
- Enhanced multi-GNSS accuracy — up to 41 visible satellites for precise location-based services
- IP69K-rated casing — dust-tight and resistant to high-pressure water jets and steam cleaning
- Tool-free battery clamp installation — no specialist knowledge or external wiring required
- High-gain internal GNSS and cellular antennas eliminate the need for external antenna cabling
- Optimised sleep modes (Online Deep Sleep, Deep Sleep, Power Off Sleep) to protect vehicle battery
- Built-in accelerometer for crash detection, towing detection, unplug detection, and idling monitoring
- Smart scenarios: Green Driving, Over Speeding, Jamming Detection, Auto Geofence, Trip
- Accelerometer-based ignition detection — no hardwiring to ignition circuit needed
- Remote firmware and configuration updates via FOTA WEB and Teltonika Configuration Tool (TCT)
- Configuration via USB, Bluetooth, SMS, and GPRS commands
- Data transmission via TCP/UDP and SMS; time sync via GNSS, NITZ, and NTP
- Two status LEDs for on-device diagnostics
- RCM-certified for Australian market compliance

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Cellular: 4G LTE Cat 1 with 2G (GSM/GPRS) fallback
- LTE FDD Bands: B1/B3/B5/B7/B8/B20/B28
- LTE data rates: 10 Mbps downlink / 5 Mbps uplink
- GNSS: GPS, GLONASS, Galileo, BeiDou (L1, 75-channel, up to 41 visible satellites)
- GNSS tracking sensitivity: -165 dBm
- GNSS position accuracy: < 1.5 m CEP
- GNSS velocity accuracy: < 0.1 m/s
- GNSS hot start: < 1 second
- Power input: 10–30 V DC (vehicle battery clamp)
- Internal backup battery: 320 mAh Li-Ion
- Power consumption (Power Off Sleep): < 0.601 mA at 12V
- Internal flash memory: 128 MB
- Interface: USB Type-C, Nano-SIM
- Ingress protection: IP69K
- Operating temperature (without battery): -30°C to +85°C
- Operating temperature (with battery): 0°C to +45°C
- Dimensions: 118 x 48 x 18.5 mm (L x W x H)
- Weight: 118 g
- Certifications: CE/RED, E-Mark, RCM, UK CA

FAQs

Q: Is the Teltonika FTC880 compatible with Australian 4G LTE networks?
A: Yes. The FTC880 supports LTE FDD Bands B1, B3, B5, B7, B8, B20, and B28, covering the primary bands used by Australian carriers including Telstra, Optus, and Vodafone. It also includes 2G GSM/GPRS fallback for extended coverage in remote areas, and is RCM-certified for use in Australia.

Q: How is the FTC880 installed in a vehicle?
A: The FTC880 uses a U-type clamp cable that connects directly to the vehicle battery terminals — no tools, specialist knowledge, or additional wiring are required. High-gain internal GNSS and cellular antennas eliminate the need for external antenna installation, making it one of the fastest-to-deploy battery-mounted trackers available.

Q: What GNSS systems does the FTC880 support and how accurate is it?
A: The FTC880 supports GPS, GLONASS, Galileo, and BeiDou simultaneously via a 75-channel L1 receiver capable of tracking up to 41 visible satellites. This delivers a position accuracy of under 1.5 m CEP and a hot start time of under 1 second, providing high-quality location data for fleet management and logistics applications.

Q: Will the FTC880 drain my vehicle's battery when the engine is off?
A: The FTC880 is designed with multiple optimised sleep modes — Online Deep Sleep, Deep Sleep, and Power Off Sleep — to minimise current draw when the vehicle is stationary. In Power Off Sleep mode, consumption drops to under 0.601 mA at 12V, making it suitable for long-term parking without risk of battery drain.

Q: What smart fleet features are built into the FTC880?
A: The FTC880 includes a built-in accelerometer enabling crash detection, towing detection, unplug detection, and excessive idling detection. Smart scenarios include Green Driving, Over Speeding alerts, Jamming Detection, Auto Geofence, and Trip logging. Configuration and firmware updates can be managed remotely via FOTA WEB or the Teltonika Configuration Tool (TCT).

Q: Can I purchase the Teltonika FTC880 in Australia through IP Trading?
A: Yes. The FTC880 (SKU: FTC880AAU801) is available through iptrading.com.au, an Australian B2B IT hardware reseller offering enterprise-grade hardware with expert local support. Visit iptrading.com.au to place your order or contact the team for volume pricing and fleet deployment enquiries.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
