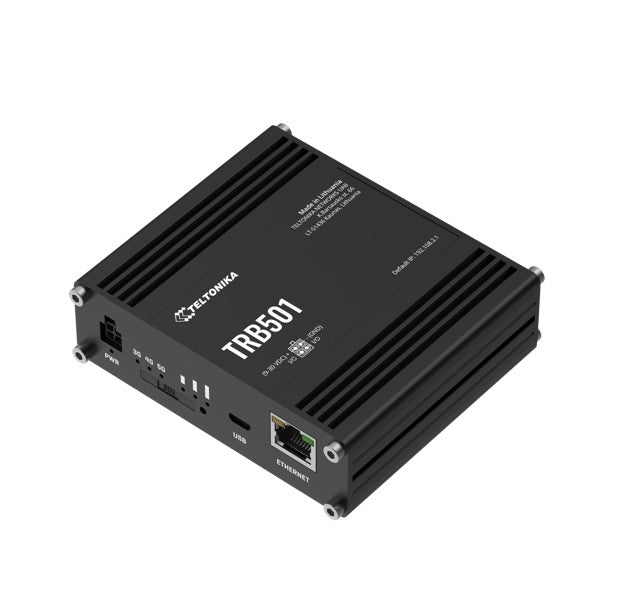

Teltonika TRB501100400 | TRB501 Industrial 5G Gateway, 2.5G LAN, PSU Included

Name: Teltonika TRB501100400 | TRB501 Industrial 5G Gateway, 2.5G LAN, PSU Included
Brand: Teltonika
SKU: TRB501100400
Price: 915.86 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB501100400

In stock:55

$915.86 inc. GST

$832.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika TRB501 is a compact industrial 5G gateway with Sub-6GHz SA/NSA cellular connectivity and 4G LTE and 3G fallback. It combines a single 2.5 Gbps Ethernet port with two configurable digital I/O channels and a 4-pin 9-30 VDC power input, making it well suited to remote sites, industrial automation, kiosks and machine connectivity.

This TRB501100400 is the standard package with the PSU included, along with four swivel SMA mobile antennas, a micro-USB cable and an Ethernet cable. It runs RutOS with Teltonika RMS remote management support and a broad industrial protocol and VPN toolset, housed in an anodised aluminium DIN rail mountable enclosure rated for -40 to 75 C operation.

Features

- 5G Sub-6GHz SA/NSA with 4G and 3G fallback
- Multi-gigabit Ethernet port up to 2.5 Gbps
- RutOS operating system with Teltonika RMS remote management support
- Industrial protocols including Modbus TCP, OPC UA, BACnet/IP, DNP3, DLMS/COSEM and MQTT
- Routing, firewall, VLAN, QoS, failover, load balancing and extensive VPN support
- Two configurable digital I/O channels for monitoring and control
- Wide 9-30 VDC input with passive PoE option
- Anodised aluminium housing and -40 to 75 C operating range

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Sub-6GHz SA/NSA, 4x4 MIMO downlink
- 5G speeds up to 2.4/3.4 Gbps DL (SA/NSA), 900/550 Mbps UL
- 4G LTE fallback (Cat 19 DL / Cat 18 UL) and 3G fallback
- 1 x RJ45 Ethernet, 10/100/1000/2500 Mbps
- 2 x configurable digital I/O on 4-pin power connector
- 9-30 VDC input with overvoltage, reverse polarity and surge protection
- Passive PoE via Ethernet port, Mode B, 9-30 VDC (not IEEE 802.3af/at/bt compatible)
- 4 x SMA mobile antenna connectors, 1 x Mini SIM (2FF) slot
- 1 x virtual network interface via micro USB
- Qualcomm 1.5 GHz ARM Cortex-A7 CPU, 512 MB RAM, 512 MB flash
- Power consumption: idle under 1.5 W, maximum under 5 W
- Operating temperature -40 to 75 C, IP30 anodised aluminium housing
- Dimensions 100 x 30 x 93.4 mm, weight 241 g
- Mounting: DIN rail, wall mount or flat surface
- Standard package: gateway, 9 W PSU, 4 x swivel SMA antennas, micro-USB cable, Ethernet cable, SIM adapter kit, QSG

FAQs

Q: Does the TRB501100400 include a power supply?
A: Yes. This is the standard package and includes a 9 W PSU, four swivel SMA mobile antennas, a micro-USB cable, an Ethernet cable and a SIM adapter kit.

Q: Which cellular networks does the TRB501 support?
A: It supports 5G Sub-6GHz in both SA and NSA modes, with fallback to 4G LTE and 3G networks.

Q: Can it be powered over Ethernet?
A: It supports passive PoE (Mode B, 9-30 VDC) via the Ethernet port. It is not compatible with IEEE 802.3af/at/bt PoE standards.

Q: What is the input voltage range?
A: The 4-pin industrial power connector accepts 9-30 VDC, with overvoltage, reverse polarity and surge protection.

Q: How can the TRB501 be mounted?
A: It can be mounted on a DIN rail, on a wall or on a flat surface. The housing is anodised aluminium with IP30 protection.

Q: Can it be managed remotely?
A: Yes. It runs RutOS and supports Teltonika RMS for remote monitoring and management, as well as industrial protocols such as Modbus TCP, OPC UA, DNP3 and MQTT.
