Teltonika TRB141 | Industrial LTE Cat 1 Gateway, I/O Block, Micro-USB

Name: Teltonika TRB141 | Industrial LTE Cat 1 Gateway, I/O Block, Micro-USB
Brand: Teltonika
SKU: TRB141
Price: 217.36 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB141

In stock:18

$217.36 inc. GST

$197.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

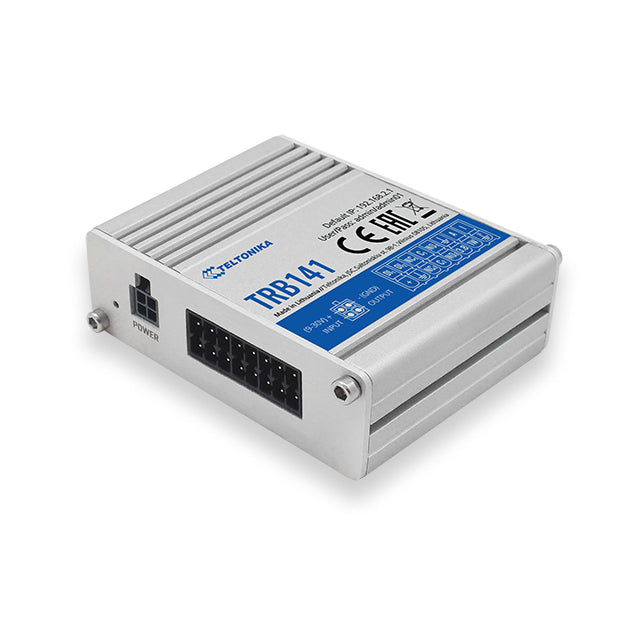

The Teltonika TRB141 is a compact industrial 4G LTE Cat 1 gateway built for M2M and IoT deployments that need remote monitoring and control. It combines digital, analog, isolated and relay I/O on an I/O connector block with a Micro-USB port, and ships with a PSU, so it is ready to connect field equipment to a cellular network. LTE Cat 1 delivers up to 10 Mbps with 3G and 2G fallback.

Powered by an ARM Cortex-A7 1.2 GHz processor running RutOS (OpenWrt based), the TRB141 supports firewall and VPN functions including OpenVPN, IPsec and GRE, along with MODBUS TCP, MQTT and data-to-server. It is compatible with the Teltonika Remote Management System (RMS), accepts a 9-30 VDC input and mounts on a DIN rail or flat surface in an IP30 aluminium housing rated from -40 to 75 C.

Features

- Multiple digital, analog and relay I/O for remote monitoring and control
- LTE Cat 1 connectivity for M2M and IoT communications
- Compact size for easy integration into cabinets and enclosures
- Wide 9-30 VDC input voltage range
- Compatible with Teltonika Remote Management System (RMS)
- RutOS with firewall, VPN (OpenVPN, IPsec, GRE and others) and DDoS prevention
- MODBUS TCP, MQTT and data-to-server support
- Management via HTTP/HTTPS, JSON-RPC and RMS

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 1 up to 10 Mbps, 3G up to 42 Mbps and 2G up to 236.8 kbps fallback
- 3 x Digital inputs (2 configurable dry/wet, 1 isolated)
- 1 x Analog input (0-30 V, 4-20 mA capable)
- 2 x Relay outputs (latching and non-latching)
- 2 x configurable I/O pins on the 4-pin power connector
- 1 x 1-Wire interface on 16-pin connector
- 1 x Micro-USB (virtual network interface)
- 1 x Mini-SIM (2FF) slot, 1.8 V/3 V
- 1 x SMA LTE antenna connector
- ARM Cortex-A7 1.2 GHz, 128 MB RAM, 512 MB flash
- RutOS (OpenWrt based Linux OS)
- 9-30 VDC input with reverse polarity and surge protection, under 5 W consumption
- Aluminium housing, 74.5 x 25 x 64.4 mm, 136 g
- Bottom and sideways DIN rail or flat surface mounting
- IP30, operating temperature -40 to 75 C, humidity 10 to 90% non-condensing
- Package includes gateway, PSU, LTE antenna (magnetic mount, SMA male, 3 m cable), Micro-USB cable (0.8 m), hex key, I/O connector and QSG

FAQs

Q: What cellular technology does the TRB141 use?
A: It uses 4G LTE Cat 1 with speeds up to 10 Mbps, and falls back to 3G and 2G where LTE is unavailable.

Q: What I/O does the TRB141 offer?
A: It provides 3 digital inputs, 1 analog input (4-20 mA capable), 2 relay outputs and 2 configurable I/O pins on the power connector, plus a 1-Wire interface.

Q: Does the TRB141 come with a power supply?
A: Yes. The package includes the gateway, PSU, LTE antenna, Micro-USB cable, hex key, I/O connector and quick start guide.

Q: Can the TRB141 be managed remotely?
A: Yes. It is compatible with Teltonika RMS and can also be managed via HTTP/HTTPS, JSON-RPC and MODBUS TCP.

Q: What SIM size does the TRB141 use?
A: It has one Mini-SIM (2FF) slot, supporting 1.8 V and 3 V SIM cards.

Q: How can the TRB141 be mounted?
A: It can be mounted on a DIN rail (bottom or sideways) or on a flat surface.
