Teltonika TRB500 | Industrial 5G Gateway, Gigabit RJ45, 4x4 MIMO

Authorised Teltonika Partner

SKU:TRB500

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

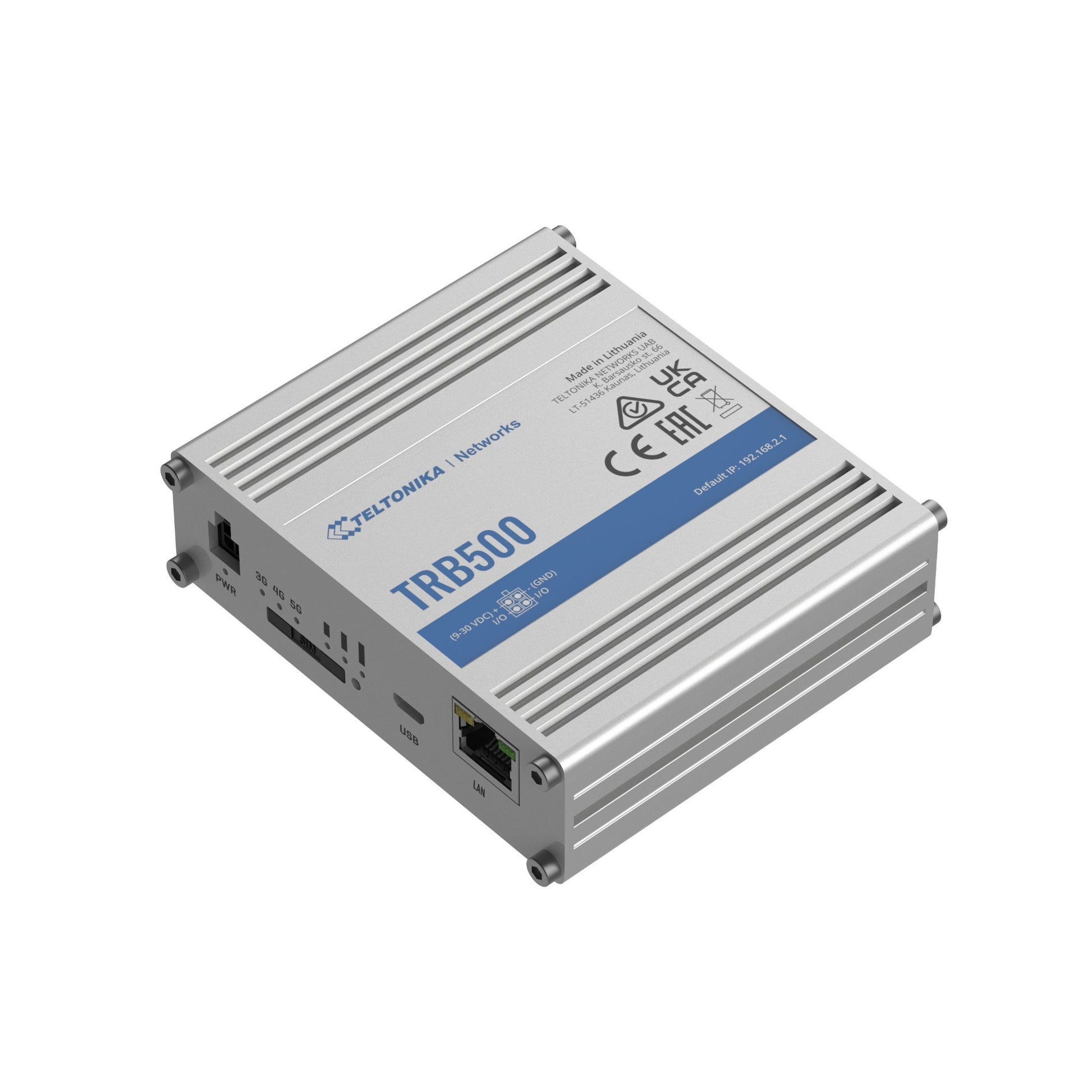

The Teltonika TRB500 is a compact industrial 5G gateway with SA and NSA support, delivering cellular speeds up to 1 Gbps and backward compatibility with 4G LTE Cat 20 and 3G. It pairs a Gigabit Ethernet port with four external SMA antenna connectors for 4x4 MIMO, making it well suited to mission-critical connectivity where low latency matters.

Two configurable I/O pins on the power connector let the TRB500 trigger events by Email, SMS or RMS, and it runs RutOS with advanced security features and remote management through Teltonika RMS. The aluminium housing mounts on a DIN rail or flat surface and operates from -40 °C to 75 °C, so it suits demanding industrial and remote deployments.

Features

- Single-digit latency for mission-critical applications
- Supports both SA and NSA 5G architectures
- One of the smallest 5G gateways on the market
- RutOS operating system with advanced security features
- I/O juggler triggers Email, RMS or SMS events on I/O conditions
- Remote management via Teltonika RMS
- Grounding screw terminal

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G (SA and NSA) with cellular speeds up to 1 Gbps; backward compatible with 4G (LTE Cat 20) and 3G
- 1 x RJ45 port, 10/100/1000 Mbps
- 2 x configurable I/O pins on the 4-pin power connector (1 digital input, 1 open-collector digital output, max 30 V / 300 mA)
- 1 x SIM slot (Mini SIM 2FF), 1.8 V/3 V
- 4 x SMA antenna connectors for mobile (4x4 MIMO)
- 1 x virtual network interface via micro USB
- CPU: single-core ARM Cortex-A7, 1.5 GHz
- Power: 4-pin DC connector, 9-30 VDC with reverse polarity and surge protection
- Power consumption: idle under 3 W, maximum under 6 W
- Aluminium housing, 100 x 30 x 93.4 mm, 241 g
- Mounting: DIN rail or flat surface
- Operating temperature -40 °C to 75 °C; humidity 10-90% non-condensing; IP30

FAQs

Q: Does the TRB500 support both SA and NSA 5G networks?
A: Yes. The TRB500 supports both Standalone (SA) and Non-Standalone (NSA) 5G architectures, with backward compatibility for 4G LTE Cat 20 and 3G.

Q: What Ethernet connectivity does the TRB500 provide?
A: It has one RJ45 port supporting 10/100/1000 Mbps, plus a virtual network interface via micro USB.

Q: What can the configurable I/O pins be used for?
A: The two I/O pins on the 4-pin power connector provide one digital input and one open-collector digital output, rated up to 30 V / 300 mA. The I/O juggler can trigger Email, RMS or SMS events based on I/O conditions.

Q: How is the TRB500 powered and mounted?
A: It is powered through a 4-pin DC connector accepting 9-30 VDC with reverse polarity and surge protection. It can be mounted on a DIN rail or on a flat surface.

Q: What SIM type does the TRB500 use?
A: It has one Mini SIM (2FF) slot supporting 1.8 V and 3 V SIM cards.

Q: Can the TRB500 be managed remotely?
A: Yes. It runs RutOS and supports remote monitoring and management through Teltonika RMS.
