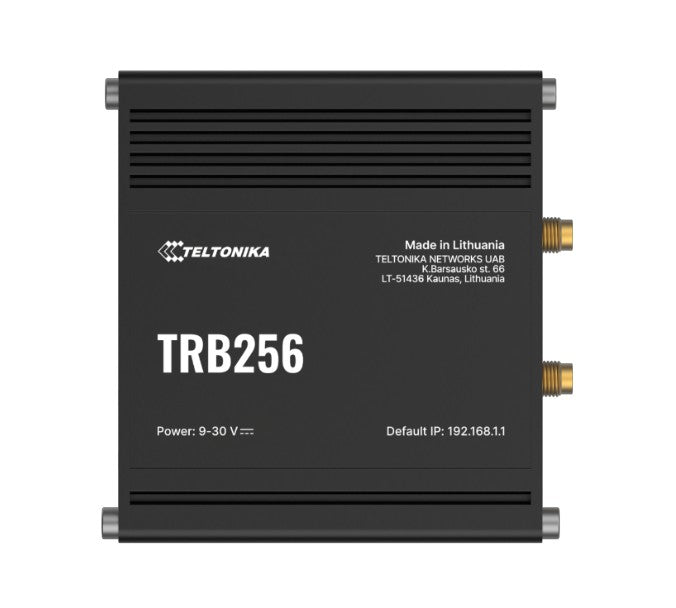

Teltonika TRB256000200 | TRB256 Industrial IoT Gateway, 4G LTE Cat M1, 450 MHz, No PSU

Name: Teltonika TRB256000200 | TRB256 Industrial IoT Gateway, 4G LTE Cat M1, 450 MHz, No PSU
Brand: Teltonika
SKU: TRB256000200
Price: 330.17 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB256000200

In stock:19

$330.17 inc. GST

$300.15 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika TRB256 is a compact industrial IoT gateway with 4G LTE Cat M1 and NB-IoT connectivity, built for remote monitoring, telemetry and machine-to-machine deployments. This variant supports the 450 MHz band for improved signal penetration and wider coverage, and is supplied without a power supply unit, so it suits sites that already have 9-30 V DC power available.

Dual SIM with auto-failover and backup WAN keeps connections alive, while the Ethernet port, configurable digital I/O and RS232/RS485 serial interfaces let the gateway bridge legacy equipment to cellular networks. RutOS provides routing, firewall, a wide range of VPN options and remote management through Teltonika RMS.

Features

- 450 MHz band support for greater LTE signal penetration and wider coverage
- Dual SIM with auto-failover, backup WAN and multiple switching scenarios
- Ethernet, I/O and serial (RS232, RS485) interfaces on a 16-pin terminal block
- Serial functions include console, serial over IP, modem, MODBUS gateway and NTRIP client
- RutOS software for advanced routing, firewall, QoS and network backup
- Remote management through WebUI, SSH, SMS, SNMP, MQTT, TR-069 and Teltonika RMS
- VPN and tunnelling support including WireGuard, OpenVPN, IPsec, GRE, L2TP and DMVPN
- Passthrough and bridge modes for connecting a LAN device directly to the mobile network

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat M1 / Cat NB1, NB2 / EGPRS
- 450 MHz band support
- Cat M1 up to 588 kbps DL / 1119 kbps UL
- Cat NB2 up to 127 kbps DL / 158.5 kbps UL
- Cat NB1 up to 32 kbps DL / 70 kbps UL
- Dual SIM with auto-failover and backup WAN
- 1 x 10/100 Mbps Ethernet port, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX
- RS232 and RS485 serial via 16-pin terminal block (2 or 4 wire RS485)
- 3 x configurable digital outputs
- 1 x LTE SMA and 1 x GNSS SMA antenna connector
- 9-30 V DC power input
- Package: TRB256 gateway, 16-pin terminal block, hex key, quick start guide (PSU not included)

FAQs

Q: Is a power supply included with the TRB256000200?
A: No. This variant is supplied without a PSU. The gateway accepts 9-30 V DC input, so it can be powered from a suitable DC supply.

Q: What is the difference between this model and other TRB256 SKUs?
A: This SKU uses 4G LTE Cat M1 with 450 MHz band support and ships without a power supply. Other TRB256 variants may differ in supported bands and package contents.

Q: What serial interfaces does the TRB256 provide?
A: It provides RS232 and RS485 (2 or 4 wire) on the 16-pin terminal block, with functions such as console, serial over IP, modem, MODBUS gateway and NTRIP client.

Q: Does the TRB256 support dual SIM failover?
A: Yes. It has dual SIM support with auto-failover and backup WAN, so traffic can switch to a second SIM or connection if the primary link drops.

Q: Can the TRB256 be managed remotely?
A: Yes. It supports WebUI, SSH, SMS, SNMP, MQTT, TR-069, JSON-RPC and FOTA, and can be managed through Teltonika RMS.

Q: Can it use GNSS and cellular at the same time?
A: No. Simultaneous cellular and GNSS operation is not supported on this gateway, although it has a dedicated GNSS SMA connector.
