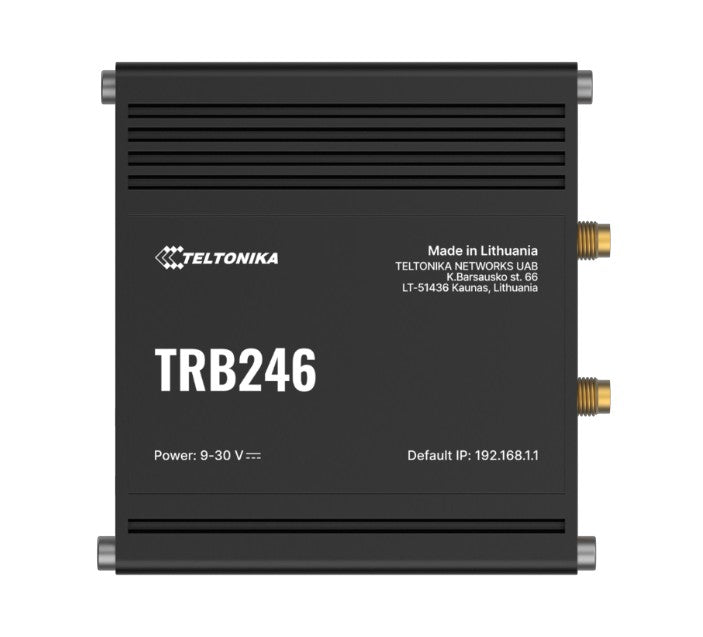

Teltonika TRB246100300 | TRB246 Industrial 4G LTE Cat 4 IoT Gateway, Dual SIM, AU, No PSU

Name: Teltonika TRB246100300 | TRB246 Industrial 4G LTE Cat 4 IoT Gateway, Dual SIM, AU, No PSU
Brand: Teltonika
SKU: TRB246100300
Price: 403.54 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB246100300

In stock:5

$403.54 inc. GST

$366.85 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika TRB246 is an industrial 4G LTE Cat 4 IoT gateway with dual SIM auto-failover, built for remote monitoring, telemetry and backup WAN connectivity. This AU region order code does not include a power supply (PSU excluded). It delivers up to 150 Mbps download and 50 Mbps upload with 3G and 2G fallback, and combines one 10/100 Ethernet port, RS232, RS485, digital and analog I/O and GNSS in a compact housing.

The TRB246 runs RutOS and supports Modbus, DNP3, DLMS, MQTT, SNMP and SSH for integration with SCADA and metering systems. It accepts a 9-30 VDC input, operates from -40 C to 75 C and mounts on a DIN rail or flat surface, making it suited to harsh industrial and utility environments.

Features

- Dual SIM with auto-failover and SIM idle protection
- Backup WAN over mobile, VRRP or wired connections
- Modbus (server/client), DNP3 and DLMS support
- VPN: OpenVPN, IPsec, GRE, L2TP/PPTP, WireGuard, ZeroTier, DMVPN, SSTP, Tinc
- Firewall, DDoS and port scan prevention, VLAN, web filter and access control
- Data to server over HTTP(S), MQTT, Azure MQTT and Kinesis
- Hotspot captive portal, QoS/SQM and DDNS
- RMS remote management with event alerts by email, RMS and SMS

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4G LTE Cat 4: 150 Mbps download, 50 Mbps upload, with 3G and 2G fallback
- Dual SIM (1.8 V/3 V) with auto-failover
- 1 x 10/100 Mbps Ethernet port
- RS232 and RS485 serial in 16-pin terminal block
- 3 x digital inputs, 3 x digital outputs, 1 x analog input (0-30 V)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- CPU: Mediatek 580 MHz MIPS 24KEc, 128 MB RAM, 16 MB flash
- Antennas: 1 x SMA for LTE, 1 x SMA for GNSS
- Input voltage: 9-30 VDC with reverse polarity and surge protection
- Power consumption: idle under 1.5 W, maximum under 3.5 W
- Operating temperature: -40 C to 75 C, humidity 10% to 90% non-condensing
- IP30 housing, 83 x 25 x 74.2 mm, 165 g
- Mounting: DIN rail or flat surface
- Power supply not included

FAQs

Q: Does the TRB246100300 include a power supply?
A: No. This AU region order code is supplied without a PSU. The gateway accepts 9-30 VDC through its terminal block, so a suitable DC supply must be sourced separately.

Q: What mobile speeds does the TRB246 support?
A: The 4G LTE Cat 4 module delivers up to 150 Mbps download and 50 Mbps upload, with 3G and 2G fallback where LTE coverage is unavailable.

Q: Which industrial protocols does it support?
A: It supports Modbus (RS232, RS485 and TCP, server and client), DNP3 (station and outstation), DLMS, MQTT and SNMP for SCADA, metering and telemetry integration.

Q: How does the dual SIM failover work?
A: The gateway can switch SIMs automatically on weak signal, data limit, SMS limit, roaming, no network, network denied or data connection failure.

Q: What I/O and serial interfaces are available?
A: There are 3 digital inputs, 3 digital outputs, 1 analog input (0-30 V), RS232 and RS485, all via the 16-pin terminal block, plus one 10/100 Ethernet port.

Q: How can the TRB246 be mounted?
A: It can be mounted on a DIN rail or placed on a flat surface. The IP30 housing is rated for -40 C to 75 C operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
