Teltonika TRB160100200 | TRB160 4G LTE Cat 6 IoT Gateway, 300 Mbps, AU Plug, PSU

Name: Teltonika TRB160100200 | TRB160 4G LTE Cat 6 IoT Gateway, 300 Mbps, AU Plug, PSU
Brand: Teltonika
SKU: TRB160100200
Price: 395.94 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB160100200

In stock:29

$395.94 inc. GST

$359.95 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

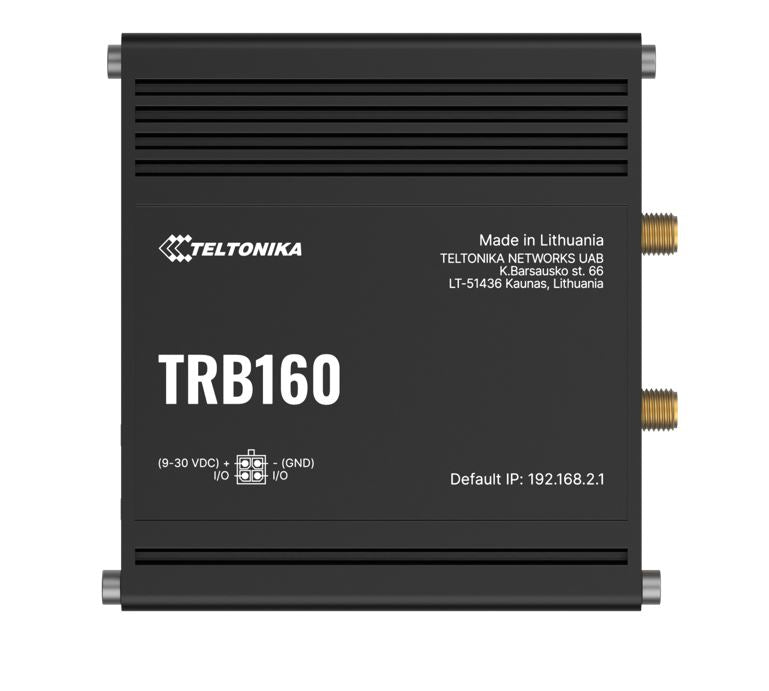

The Teltonika TRB160 is an ultra-small 4G LTE Cat 6 IoT gateway delivering cellular speeds of up to 300 Mbps downlink and 50 Mbps uplink, with a Gigabit Ethernet port and a USB Type-C port that supplies both power and a virtual network interface. This TRB160100200 variant ships with the Australian-plug 9 W power supply included, so it is ready to deploy on a standard local outlet.

Built around a 1.2 GHz ARM Cortex-A7 CPU with 128 MB RAM and 256 MB flash, the TRB160 runs in an anodised aluminium casing rated from -40 °C to 75 °C. It supports 9-30 VDC input, passive PoE, DIN rail, wall or flat-surface mounting (additional kit required), industrial protocols such as Modbus, MQTT and OPC UA, VPN options including OpenVPN, IPsec and WireGuard, and remote management through Teltonika RMS.

Features

- LTE Cat 6 cellular speeds up to 300 Mbps with carrier aggregation
- USB Type-C powers the device and provides a network data interface at the same time
- Supports OPC UA, Modbus, MQTT, DNP3, DLMS and Data to Server protocols
- VPN support including OpenVPN, IPsec and WireGuard
- Advanced firewall and attack prevention
- FOTA firmware updates
- Compatible with Teltonika RMS remote management
- Compact, lightweight design for easy installation
- Wide -40 °C to 75 °C operating temperature range
- Overvoltage, reverse polarity and surge protection on the DC input

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 6: up to 300 Mbps DL / 50 Mbps UL
- 3G: up to 42 Mbps DL / 5.76 Mbps UL
- 3GPP Release 12
- 1 x 10/100/1000 Mbps Ethernet port (IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX)
- USB Type-C port for power and virtual network interface
- Qualcomm 1.2 GHz ARM Cortex-A7 CPU, 128 MB RAM, 256 MB flash
- 1 x Mini-SIM slot, 2 x detachable SMA LTE antenna connectors
- Power input: 9-30 VDC 4-pin socket, 5 VDC via USB Type-C, passive PoE (Mode B) via ETH port
- Power consumption: idle under 0.25 W, maximum under 3.3 W
- Anodised aluminium casing, IP30
- Dimensions: 83 x 25 x 74.2 mm, weight 172 g
- Operating temperature: -40 °C to 75 °C, humidity 10% to 90% non-condensing
- Mounting: DIN rail, wall mount or flat surface (additional kit required)
- Included: 9 W AU plug PSU, 2 x magnetic SMA mobile antennas (3 m cable), USB Type-C cable (0.8 m), hex key, Ethernet cable

FAQs

Q: Does the TRB160100200 include a power supply?
A: Yes. This variant includes a 9 W power supply with an Australian plug, along with two magnetic SMA antennas, a USB Type-C cable, an Ethernet cable and a hex key.

Q: What cellular speeds does the TRB160 support?
A: It supports 4G LTE Cat 6 with up to 300 Mbps downlink and 50 Mbps uplink, and falls back to 3G at up to 42 Mbps downlink and 5.76 Mbps uplink.

Q: How can the TRB160 be powered?
A: It accepts 9-30 VDC on the 4-pin industrial connector, 5 VDC over USB Type-C, or passive PoE (Mode B, 9-30 VDC) via the Ethernet port. It is not compatible with IEEE 802.3af/at/bt PoE.

Q: What is the USB Type-C port used for?
A: It can power the gateway and also provide a virtual network interface, so the gateway can share its cellular connection with a connected host over a single cable.

Q: Can the TRB160 be mounted on a DIN rail?
A: Yes. It supports DIN rail, wall and flat-surface mounting, although the mounting kit is sold separately.

Q: Which industrial protocols and VPNs does it support?
A: It supports OPC UA, Modbus, MQTT, DNP3, DLMS and Data to Server protocols, plus OpenVPN, IPsec and WireGuard VPNs. It can be managed remotely via Teltonika RMS.
