Teltonika TRB142108000 | TRB142 Industrial LTE Cat 1 RS232 Gateway, PSU Included

Name: Teltonika TRB142108000 | TRB142 Industrial LTE Cat 1 RS232 Gateway, PSU Included
Brand: Teltonika
SKU: TRB142108000
Price: 245.41 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TRB142108000

In stock:10

$245.41 inc. GST

$223.10 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

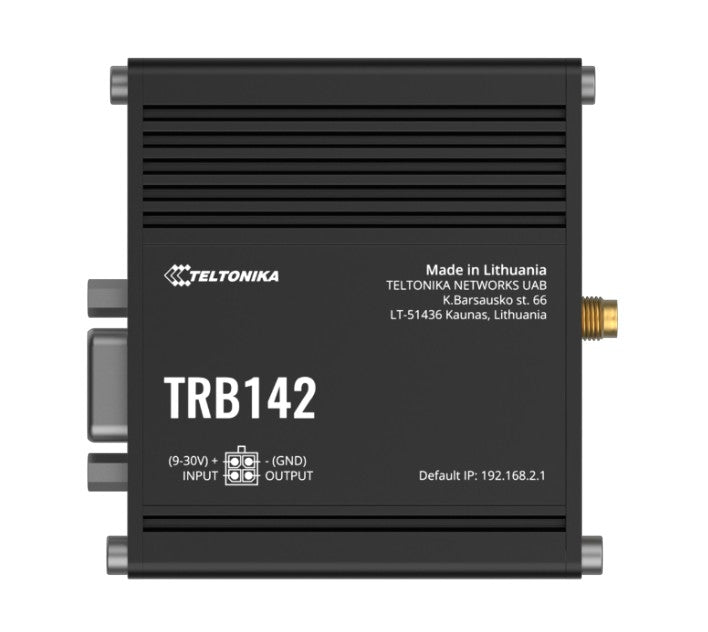

The Teltonika TRB142 industrial LTE RS232 gateway brings remote connectivity to legacy serial equipment over 4G LTE Cat 1, with download speeds up to 10 Mbps and upload speeds up to 5 Mbps. This TRB142108000 variant includes the power supply and features an RS232 serial interface, a digital input, a relay output and a micro-USB port, making it suited to remote monitoring and control in industrial deployments.

Built in an aluminium housing rated IP30 for operation from -40 °C to +75 °C, the gateway runs RutOS (OpenWRT-based) and is compatible with Teltonika RMS for centralised remote management. It supports industrial protocols including Modbus TCP/RTU, MQTT, DLMS and DNP3, and offers VPN, firewall and failover features for secure and resilient connections.

Features

- RutOS (OpenWRT-based) firmware
- SMS control and SMS/email utilities
- VPN support (OpenVPN, IPsec, PPTP, GRE)
- Firewall, access control and web filtering
- FOTA firmware updates
- Teltonika Remote Management System (RMS) compatible
- Network backup / failover, bridge and passthrough modes
- Teltonika Networks Web API support

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 1: up to 10 Mbps download / 5 Mbps upload, with 3G/2G fallback
- 1 x RS232 serial interface
- Micro-USB port for virtual network interface
- Digital input and relay output (configurable I/O)
- 1.2 GHz ARM Cortex-A7 CPU, 128 MB RAM, 512 MB Flash
- 1 x Mini-SIM (2FF) slot
- 1 x SMA LTE antenna connector
- Power input: 9-30 VDC via 4-pin industrial DC socket, with reverse polarity and surge protection
- Power consumption: under 5 W
- Aluminium housing, 74.5 x 25 x 64.4 mm, 135 g
- Operating temperature -40 °C to +75 °C, IP30
- Mounting: DIN rail, wall or flat surface (additional kit required)
- Industrial protocols: Modbus (TCP/RTU), MQTT gateway, DLMS, DNP3
- Power supply included

FAQs

Q: What cellular connectivity does the TRB142108000 support?
A: It supports 4G LTE Cat 1 with speeds up to 10 Mbps download and 5 Mbps upload, with 3G/2G fallback.

Q: Does the TRB142108000 include a power supply?
A: Yes, this variant includes a power supply. The gateway accepts 9-30 VDC through a 4-pin industrial DC socket.

Q: What serial interface does this gateway provide?
A: It has one RS232 serial interface for connecting legacy industrial devices, along with a micro-USB port, a digital input and a relay output.

Q: Which industrial protocols are supported?
A: The TRB142 supports Modbus (TCP/RTU), MQTT gateway, DLMS and DNP3, making it suitable for SCADA and metering applications.

Q: Can the TRB142108000 be managed remotely?
A: Yes, it is compatible with the Teltonika Remote Management System (RMS) and supports FOTA firmware updates and SMS control.

Q: What SIM and antenna connections does it use?
A: It has one Mini-SIM (2FF) slot and one SMA connector for the LTE antenna.

Q: How can the gateway be mounted?
A: It can be mounted on a DIN rail, a wall or a flat surface, although an additional mounting kit is required.
