Teltonika PR1KCO28 | Combo MIMO Roof Antenna, 2x LTE, GNSS, 3 m, 2x WiFi

Name: Teltonika PR1KCO28 | Combo MIMO Roof Antenna, 2x LTE, GNSS, 3 m, 2x WiFi
Brand: Teltonika
SKU: PR1KCO28
Price: 120.18 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:PR1KCO28

In stock:19

$120.18 inc. GST

$109.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

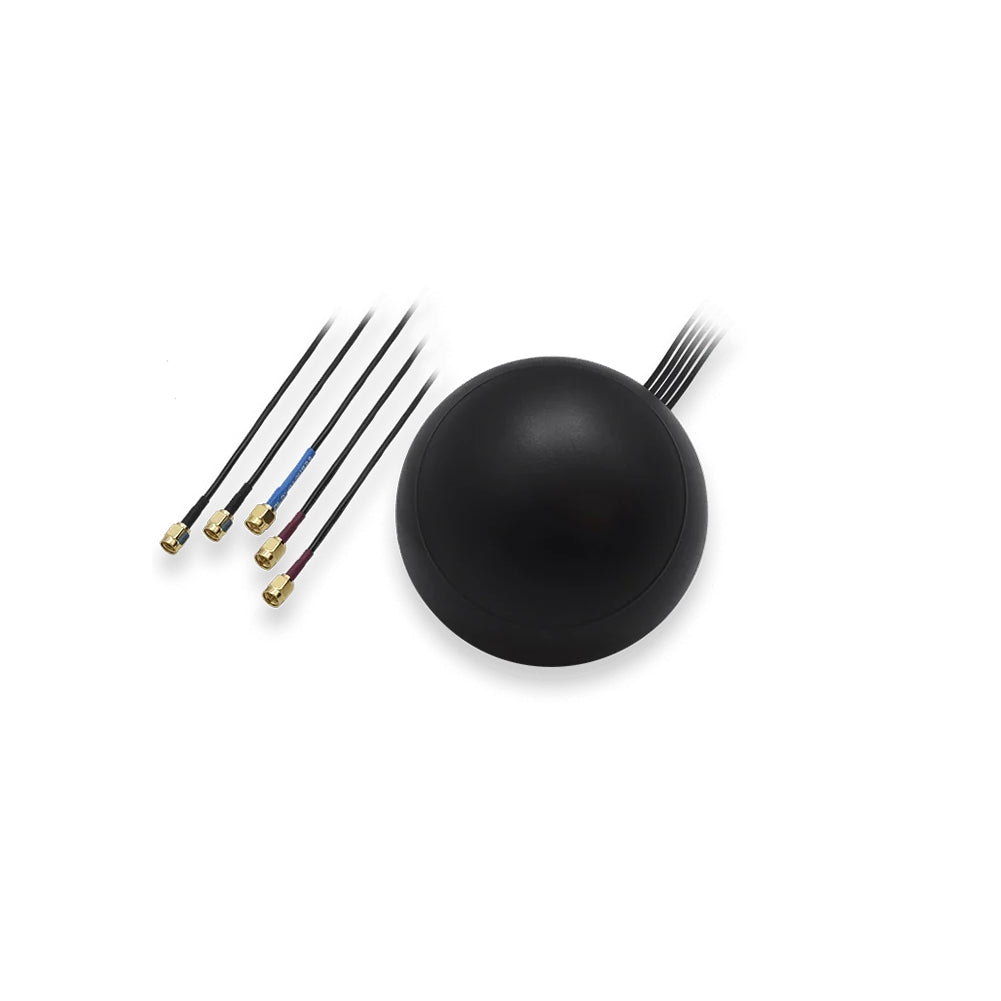

The Teltonika PR1KCO28 is a combo MIMO roof-mount antenna that combines 2x LTE, 2x WiFi and 1x active GNSS elements in a single IP65 black ABS dome. It suits vehicle and cabinet installations, giving one mounting point for cellular, wireless LAN and positioning on compatible Teltonika routers. The 3 m cable set and SMA connectors make it a ready-to-fit option for the RUT955, RUTX09 and RUTX11.

The LTE elements cover 698 to 960 MHz and 1710 to 2690 MHz at 3.0 dBi, while the WiFi elements cover 2.4 GHz and 4.9 to 5.8 GHz at 2.0 dBi. The GNSS element is active, with a 28 dB LNA gain and RHCP polarisation, for dependable positioning. Screw mounting secures the antenna flush to a roof or cabinet panel. Formerly sold as 003R-00253.

Features

- All-in-one antenna combining LTE, WiFi and GNSS in one housing
- MIMO on both LTE and WiFi for improved signal strength and data speeds
- Active GNSS element with LNA for accurate positioning
- Weatherproof IP65 ABS dome for outdoor and vehicle use
- Screw mounting for flush installation on a roof or cabinet
- Compatible with Teltonika RUT955, RUTX09 and RUTX11

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- GNSS: 1575 to 1610 MHz, RHCP polarisation, 50 ohm
- GNSS LNA gain: 28 ± 2 dB, noise figure 1.5 dB
- GNSS supply: 3.0 to 5.0 VDC, 15 mA, SMA male connector
- LTE MIMO: 698 to 960 MHz and 1710 to 2690 MHz, 3.0 dBi, linear polarisation
- LTE connectors: 2x SMA male
- WiFi MIMO: 2400 to 2483 MHz and 4900 to 5825 MHz, 2.0 dBi, linear polarisation
- WiFi connectors: 2x RP-SMA male
- Cable: 5x RG174, 3000 mm
- Radome: black ABS, IP65 (excluding cable outlet)
- Mounting: screw mount
- Dimensions: Ø 110 x 55 mm
- Weight: 550 g
- RoHS compliant

FAQs

Q: Which Teltonika routers is this antenna designed for?
A: It is intended for use with the Teltonika RUT955, RUTX09 and RUTX11 routers.

Q: Is the 28 dBi in the product name the antenna gain?
A: No. The 28 figure refers to the GNSS LNA gain of 28 ± 2 dB. The LTE elements are 3.0 dBi and the WiFi elements are 2.0 dBi.

Q: What connector types does it use?
A: The LTE and GNSS elements use SMA male connectors, and the two WiFi elements use RP-SMA male connectors.

Q: How is it mounted?
A: It uses screw mounting for a flush fit on a vehicle roof or cabinet panel.

Q: Is it suitable for outdoor use?
A: Yes. The black ABS dome is rated IP65, excluding the cable outlet, for outdoor and vehicle installations.

Q: How long are the cables?
A: It has 5x RG174 cables, each 3000 mm long.
