Moxa MAT-WDB-DA-RM-2-0203-1m | Dual-Band 2/3 dBi Desktop WLAN Antenna, RP-SMA, 1m

Authorised Moxa Partner

SKU:MAT-WDB-DA-RM-2-0203-1m

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

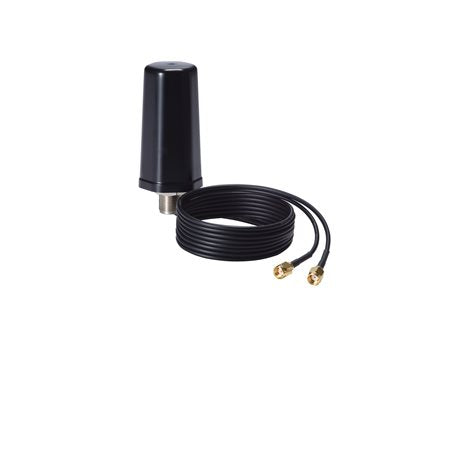

The MAT-WDB-DA-RM-2-0203-1m is a dual-band 2.4/5 GHz MIMO 2x2 omni-directional desktop WLAN antenna with 2/3 dBi typical gain. It connects through an RP-SMA (male) connector on an attached 1 m RG-174 cable, making it a practical choice for desktop-mounted wireless access points, gateways and industrial wireless clients that need a compact external antenna.

The small, black PC radome is rated IP55 and operates from -40 to 75°C, so it suits both office and demanding industrial environments. Linear vertical polarisation and a 360 degree horizontal beamwidth provide even coverage across the 2.4 to 2.5 GHz and 4.9 to 5.85 GHz bands.

Features

- Dual-band operation across both the 2.4 GHz and 5 GHz bands
- MIMO 2x2 omni-directional design
- Compact size for easy installation
- Desktop mount for simple placement
- RP-SMA (male) connector on a 1 m RG-174 cable
- IP55 rated radome with wide -40 to 75°C operating range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Frequency: 2.4 to 2.5 GHz, 4.9 to 5.85 GHz
- Antenna type: MIMO 2x2, omni-directional
- Typical antenna gain: 2/3 dBi
- Connector: RP-SMA (male)
- Impedance: 50 ohms
- Polarisation: Linear vertical
- HPBW horizontal/vertical: 360/114 degrees, 75/54 degrees
- Cable: RG-174, 1 m
- Installation: Desktop mount
- IP rating: IP55
- Radome: Black, PC-1250G
- Weight: 156 g
- Length including RF cable: 1094.3 mm
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (30°C, non-condensing)

FAQs

Q: Which frequency bands does this antenna support?
A: It supports both 2.4 to 2.5 GHz and 4.9 to 5.85 GHz, so it can be used with dual-band 2.4/5 GHz wireless equipment.

Q: What connector does it use?
A: It has an RP-SMA (male) connector on a 1 m RG-174 cable. Confirm your device has a matching RP-SMA female antenna port.

Q: What is the antenna gain?
A: Typical antenna gain is 2 dBi in the 2.4 GHz band and 3 dBi in the 5 GHz band (listed as 2/3 dBi).

Q: How is it mounted?
A: It is a desktop-mount antenna that sits on a flat surface, with the 1 m cable running back to the wireless device.

Q: Is it suitable for industrial environments?
A: It carries an IP55 rating and an operating temperature range of -40 to 75°C, which suits many industrial deployments.

Q: Is this an omni-directional antenna?
A: Yes. It is a MIMO 2x2 omni-directional antenna with a 360 degree horizontal beamwidth and linear vertical polarisation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
