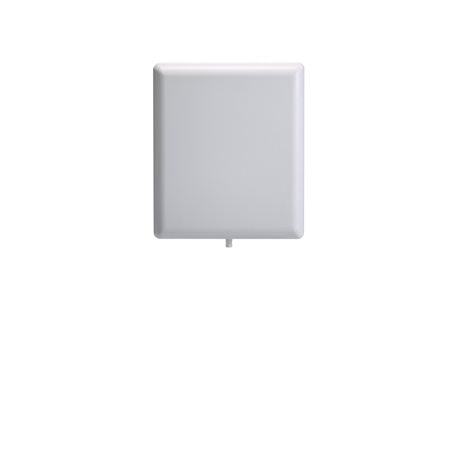

Moxa MAT-WDB-PA-NF-2-0708 | Dual-Band Panel Antenna, 7/8 dBi, 2x2 MIMO, N-Type Female

Authorised Moxa Partner

SKU:MAT-WDB-PA-NF-2-0708

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MAT-WDB-PA-NF-2-0708 is a dual-band 2.4/5 GHz directional panel antenna with 2x2 MIMO, delivering a typical gain of 7 dBi in the 2.4 GHz band and 8 dBi in the 5 GHz band. It uses N-type female connectors and offers vertical polarisation with a 90 degree horizontal and 50 degree vertical beamwidth, making it well suited to focused WLAN coverage in industrial and outdoor deployments.

The compact, lightweight ABS radome supports pole mounting and operates across a -40 to 75°C temperature range. With a 50 ohm impedance, 2:1 maximum VSWR and 2 W power handling, it is a practical WLAN accessory for extending or directing wireless coverage from compatible access points and wireless clients.

Features

- Dual-band operation with 7 dBi at 2.4 GHz and 8 dBi at 5 GHz
- 2x2 MIMO directional panel design for focused coverage
- N-type female connectors
- Lightweight and compact form factor
- Pole-mounting support
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Frequency: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
- Antenna type: MIMO 2x2, directional, panel
- Typical antenna gain: 7/8 dBi
- Connector: N-type (female)
- Impedance: 50 ohms
- Polarisation: Vertical
- HPBW horizontal: 90°
- HPBW vertical: 50°
- VSWR: 2:1 max.
- Power handling: 2 W (max.)
- Dimensions: 206 x 177 x 45 mm
- Weight: 935 g
- Radome: White ABS
- Installation: Pole mount
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (30°C, non-condensing)

FAQs

Q: Which frequency bands does this antenna support?
A: It covers the 2.4 to 2.5 GHz and 4.9 to 5.9 GHz bands, with a typical gain of 7 dBi on 2.4 GHz and 8 dBi on 5 GHz.

Q: What connector type does it use?
A: It uses N-type female connectors with a 50 ohm impedance, so matching N-type male cabling or pigtails are required.

Q: Is this an omnidirectional or directional antenna?
A: It is a directional panel antenna with a 90 degree horizontal and 50 degree vertical half-power beamwidth and vertical polarisation.

Q: How is the antenna mounted?
A: It supports pole mounting and measures 206 x 177 x 45 mm, weighing 935 g.

Q: Does it support MIMO?
A: Yes, it is a 2x2 MIMO antenna, suited to access points and clients with two dual-band antenna ports.

Q: What temperatures can it operate in?
A: The operating temperature range is -40 to 75°C, suitable for demanding industrial and outdoor environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
