Moxa MAT-5G-PA-SM-2-06-3m | MIMO Panel Antenna, 6 dBi, 2x SMA Male, 3m

Authorised Moxa Partner

SKU:MAT-5G-PA-SM-2-06-3m

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

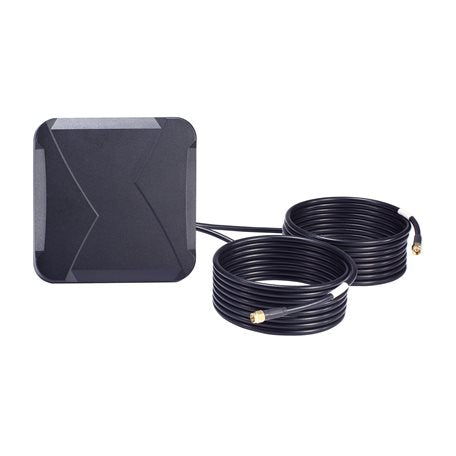

The Moxa MAT-5G-PA-SM-2-06-3m is a 2-in-1 MIMO cellular panel antenna delivering 6 dBi gain across GSM, UMTS, LTE and 5G NR bands. It terminates in 2x SMA male connectors on a 3 m SNC200 cable, making it suited to connecting industrial cellular routers and gateways to a well-placed external antenna.

Covering 617 to 960, 1427 to 1510, 1710 to 2170 and 2300 to 2690 MHz, it supports global LTE bands and is rated IPx9K with an operating temperature range of -40 to 85 C. The compact screw-mount panel design allows flexible installation in demanding outdoor and industrial environments.

Features

- Supports all global LTE bands
- High-gain design to enhance cellular performance
- 2-in-1 LTE combination antenna design
- Flexible screw-mount installation
- 3 m cable for remote placement
- SMA male connectors for direct connection
- IPx9K rating for harsh environments
- Wide operating temperature range of -40 to 85 C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Antenna type: panel, 2-in-1 MIMO
- Gain: 6 dBi
- Frequency: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
- Connectors: 2x SMA (male)
- Cable: SNC200, 3 m
- Impedance: 50 ohms
- Polarisation: linear vertical
- Dimensions: 135.95 x 135.95 x 47.44 mm
- Radome: black plastic
- Installation: screw mount
- IP rating: IPx9K
- Operating temperature: -40 to 85 C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: Which cellular bands does this antenna support?
A: It covers 617 to 960, 1427 to 1510, 1710 to 2170 and 2300 to 2690 MHz, spanning GSM, UMTS, LTE and 5G NR bands.

Q: What connectors and cable does it use?
A: It has 2x SMA male connectors on a 3 m SNC200 cable.

Q: Is it suitable for outdoor and harsh environments?
A: Yes. It is rated IPx9K and operates from -40 to 85 C, with a black plastic radome.

Q: How is the antenna mounted?
A: It is a screw-mount panel antenna measuring 135.95 x 135.95 x 47.44 mm.

Q: Does it support MIMO?
A: Yes. It is a 2-in-1 MIMO design with two SMA connectors, suited to routers and gateways with dual cellular antenna ports.

Q: What is the antenna gain?
A: The antenna gain is 6 dBi, with typical gains from 1.55 dBi to 7.10 dBi depending on the frequency band.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
