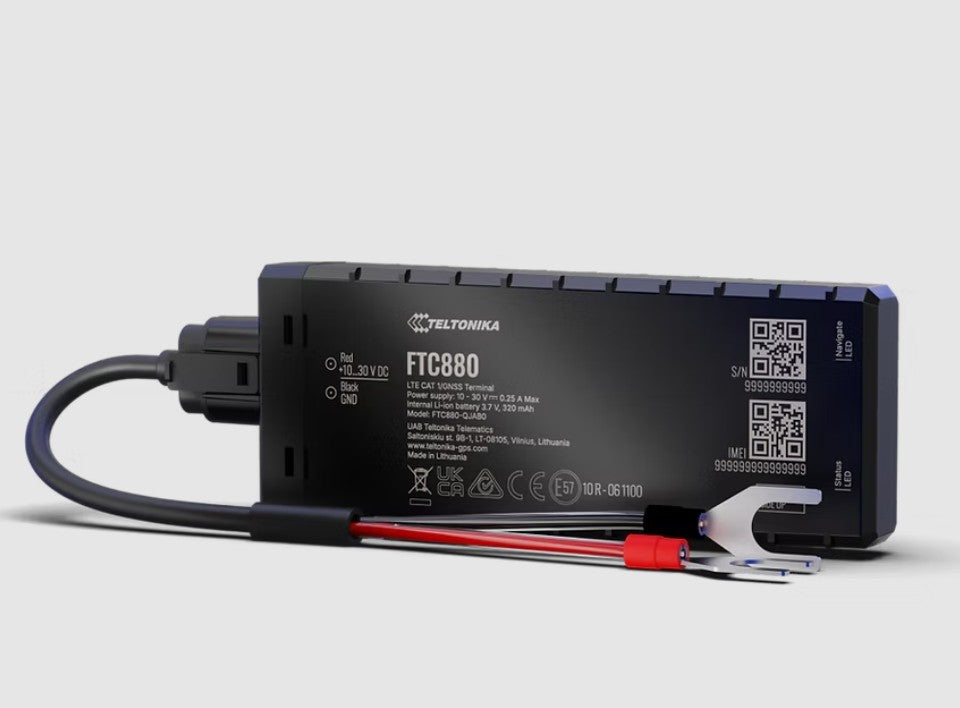

Teltonika FTC880 | 4G LTE Cat 1 Battery-Mount Vehicle GPS Tracker, IP69K

Authorised Teltonika Partner

SKU:FTC880

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Teltonika FTC880 is a next-generation 4G LTE Cat 1 vehicle GPS tracker designed for fast, tool-free installation via battery clamp connectors — no drilling, no complex wiring. Built for harsh operating environments, it carries an IP69K rating for protection against dust, high-pressure water and steam, making it ideal for fleet tracking across agriculture, construction, mining and logistics. Quad-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) with up to 41 visible satellites delivers positioning accuracy under 1.5 m CEP, while 2G GSM/GPRS fallback ensures connectivity where LTE coverage is limited.

The FTC880 supports advanced smart telematics scenarios including Green Driving, Crash Detection, Jamming Detection, Excessive Idling, Auto Geofence and Trip reporting — all managed remotely via Teltonika's FOTA WEB platform or Configuration Tool (TCT). Optimised sleep modes draw as little as 0.601 mA to protect the host vehicle battery. RCM certified for compliance with Australian AS/NZS 4417 standards, with a 128 MB internal flash memory, USB-C interface, and built-in accelerometer for ignition and crash event detection.

Features

- Quad-constellation GNSS (GPS/GLONASS/Galileo/BeiDou) with up to 41 visible satellites for sub-1.5 m CEP accuracy
- IP69K-rated enclosure — dust-tight and resistant to high-pressure water jets and steam
- Tool-free battery clamp installation for rapid fleet deployment — no drilling or wiring harness required
- 4G LTE Cat 1 (10 Mbps DL / 5 Mbps UL) with automatic 2G GSM/GPRS fallback
- Optimised sleep modes (Deep Sleep, Online Deep Sleep, Power Off Sleep) with minimum 0.601 mA draw to protect vehicle battery
- Built-in accelerometer for ignition detection, crash detection and driving behaviour monitoring
- Smart telematics scenarios: Green Driving, Over Speeding, Crash Detection, Excessive Idling, Jamming Detection, Auto Geofence, Trip
- Remote configuration and FOTA firmware updates via FOTA WEB and Teltonika Configuration Tool (TCT)
- Internal high-gain GNSS and cellular antennas — no external antenna wiring required
- Configuration via SMS, GPRS commands, USB-C and Bluetooth
- 128 MB internal flash memory for on-device data storage
- RCM certified — compliant with Australian AS/NZS 4417 standards
- Time synchronisation via GNSS, NITZ and NTP
- Two diagnostic status LEDs for quick field troubleshooting

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular: 4G LTE Cat 1 — Max 10 Mbps DL / 5 Mbps UL
- LTE FDD Bands: B1/B3/B5/B7/B8/B20/B28 (EU/AU version)
- 2G Fallback: GSM/GPRS
- GNSS: GPS, GLONASS, Galileo, BeiDou — L1, 75-channel receiver
- Visible Satellites: Up to 41
- GNSS Sensitivity: -165 dBm (tracking); Hot-start < 1 s
- Position Accuracy: < 1.5 m CEP
- Velocity Accuracy: < 0.1 m/s
- Ingress Protection: IP69K (dust, high-pressure water and steam)
- Power Input: 10–30 V DC (vehicle battery terminal)
- Internal Backup Battery: 320 mAh Li-Ion
- Sleep Modes: Deep Sleep, Online Deep Sleep, Power Off Sleep (min 0.601 mA draw)
- Internal Flash Memory: 128 MB
- Interface: USB-C, Nano-SIM slot
- Sensors: Built-in 3-axis accelerometer
- Dimensions: 118 × 48 × 18.5 mm
- Certifications: CE/RED, E-Mark, RCM (AS/NZS 4417), UK CA

FAQs

Q: How is the FTC880 installed on a vehicle?
A: The FTC880 is designed for fast, tool-free installation using battery clamp connectors that attach directly to the vehicle's 10–30 V DC battery terminals. Power supply cables are included in the box, so no drilling or complex wiring is required — making it ideal for rapid deployment across large fleets.

Q: Is the FTC880 suitable for outdoor and harsh-environment use?
A: Yes. The FTC880 carries an IP69K rating, meaning it is fully protected against dust ingress and against high-pressure, high-temperature water jets and steam. This makes it well suited for agricultural machinery, construction equipment, mining vehicles and any application exposed to extreme conditions.

Q: What GNSS systems does the FTC880 support, and how accurate is it?
A: The FTC880 supports four satellite constellations — GPS, GLONASS, Galileo and BeiDou — via a 75-channel L1 receiver capable of tracking up to 41 visible satellites simultaneously. Position accuracy is under 1.5 m CEP with a hot-start acquisition time of less than 1 second, providing highly reliable location data for fleet and asset management.

Q: Does the FTC880 drain the vehicle battery when the engine is off?
A: No. The FTC880 includes multiple optimised sleep modes — Deep Sleep, Online Deep Sleep, and Power Off Sleep — that reduce current draw to as low as 0.601 mA when the vehicle is stationary. The built-in 320 mAh backup battery also allows the device to continue operating briefly without vehicle power.

Q: What smart telematics features does the FTC880 support?
A: The FTC880 supports a wide range of pre-built smart scenarios via Teltonika's FT Platform firmware, including Green Driving, Over Speeding Detection, Crash Detection, Excessive Idling, Jamming Detection, Unplug Detection, Auto Geofence and Trip reporting. It is remotely configurable and supports FOTA firmware updates via FOTA WEB.

Q: Can I purchase the Teltonika FTC880 in Australia, and how quickly can I get it?
A: Yes. The FTC880 is available through IP Trading at iptrading.com.au, a specialist B2B IT hardware reseller with stock and delivery across Australia. The device is RCM certified for compliance with Australian AS/NZS 4417 standards. Visit iptrading.com.au to order or enquire about volume pricing for fleet deployments.
