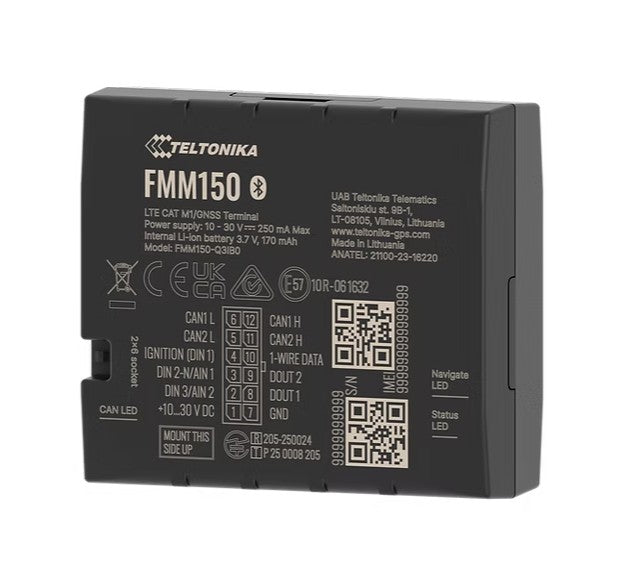

Teltonika FMM150XYU801 | FMM150 4G LTE Cat M1 GPS Tracker, CAN Data, Bluetooth LE

Teltonika FMM150XYU801 | FMM150 4G LTE Cat M1 GPS Tracker, CAN Data, Bluetooth LE

Authorised Teltonika Partner

FMM150XYU801

In stock:10

$202.40 inc. GST
$184.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FMM150 is a compact 4G LTE Cat M1 GPS tracker with an integrated CAN data processor, built for vehicle tracking and fleet telematics. It combines a vehicle tracker and a CAN data adapter in one unit, reading CAN bus data from light vehicles, electric vehicles, trucks, buses and coaches, with 2G fallback where LTE Cat M1 coverage is unavailable.

Multi-constellation GNSS positioning covers GPS, GLONASS, Galileo and BeiDou, with internal GNSS and GSM antennas and an internal backup battery for a tidy install. Bluetooth 4.0 + LE supports external devices and low-energy sensors, while configurable digital and analogue inputs allow remote monitoring and control for scenarios such as over-speeding, towing, crash and unplug detection, and auto geofence.

Features

- Integrated CAN data processor for reading CAN bus data
- CAN data reading from light vehicles, electric vehicles, trucks, buses and coaches
- LTE Cat M1 connectivity with 2G fallback
- Bluetooth 4.0 + LE for external devices and low-energy sensors
- Configurable digital and analogue inputs for remote monitoring and control
- Internal GNSS and GSM antennas with internal backup battery
- Scenario support including green driving, over-speeding, jamming, towing, crash and unplug detection, and auto geofence

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular: LTE Cat M1 with GSM (2G) fallback
- Cellular module: Quectel BG95-M3
- GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
- GNSS receiver: 33 tracking channels, 99 acquisition channels
- Tracking sensitivity: -165 dBm
- Position accuracy: < 2.5 m CEP
- Cold start: < 35 s, warm start: < 25 s, hot start: < 1 s
- LTE data rate: max 588 Kbps (DL) / 1119 Kbps (UL)
- Bluetooth: 4.0 + LE
- Antennas: internal GNSS and GSM
- Backup battery: internal 170 mAh Li-Ion
- Moisture resistance: IP41

FAQs

Q: What vehicles can the FMM150 read CAN data from?
A: The integrated CAN data processor reads CAN data from light vehicles, electric vehicles, trucks, buses and coaches.

Q: Which cellular networks does the FMM150 use?
A: It uses LTE Cat M1 with GSM (2G) fallback, via a Quectel BG95-M3 cellular module.

Q: Which satellite systems does the FMM150 support?
A: It supports GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS and AGPS.

Q: Does the FMM150 need external antennas?
A: No. It has internal GNSS and GSM antennas, so it can be installed without external antennas.

Q: Can it connect to wireless sensors?
A: Yes. Bluetooth 4.0 + LE allows connection to external devices and low-energy sensors.

Q: Does the FMM150 have a backup battery?
A: Yes. It includes an internal 170 mAh Li-Ion backup battery.
