Teltonika FMC6508TFE01 | FMC650 4G LTE Cat 1 GPS Fleet Tracker, GNSS L1+L5, CAN/Tacho, Latin America

Name: Teltonika FMC6508TFE01 | FMC650 4G LTE Cat 1 GPS Fleet Tracker, GNSS L1+L5, CAN/Tacho, Latin America
Brand: Teltonika
SKU: FMC6508TFE01
Price: 264.38 AUD
Availability: BackOrder

Authorised Teltonika Partner

SKU:FMC6508TFE01

Stock Status: Enquire

$264.38 inc. GST

$240.35 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

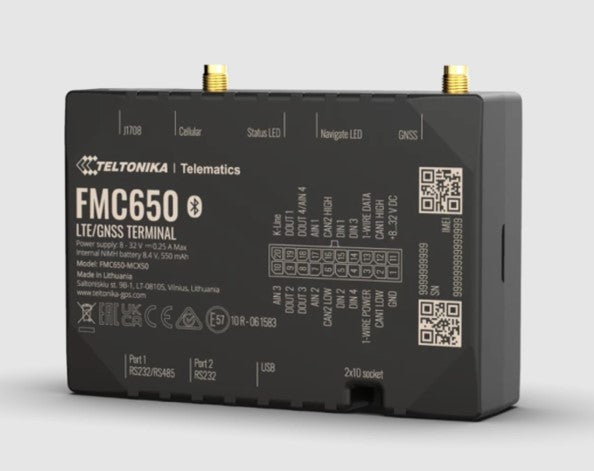

The Teltonika FMC650 is a 4G LTE Cat 1 GPS fleet tracker with 2G fallback, built for advanced vehicle telematics. This FMC6508TFE01 variant is configured for Latin America cellular bands and ships with external GNSS and cellular antennas. It combines a dedicated dual-band L1 + L5 GNSS module with CAN J1939, CAN J1708 and K-Line tachograph interfaces, so fleet operators can pull FMS, fuel and tachograph data directly from the vehicle.

The FMC650 offers 2 x RS232, RS485 and 1-Wire interfaces for third-party peripherals such as Garmin devices, RFID and iButton readers, TPMS sensors and carrier freezers. It includes Bluetooth 5.2 Low Energy, dual Nano SIM or eSIM support, a 550 mAh Ni-MH backup battery and an 8-32 V DC operating range. Remote configuration and firmware updates are handled through FOTA Web and the Teltonika Configurator. It is the direct successor to the FMC640, with a new processor and more internal memory.

Features

- Direct successor to the FMC640 with a new processor and more internal memory
- Switchable CAN terminators for CAN networks with many nodes
- Remote tachograph file download and live tachograph data
- FMS CAN data (J1939) and fuel CAN data (J1708)
- Supports third-party RS232/RS485 devices such as Garmin, RFID, iButton, TPMS, Iridium SBD, NMEA and carrier freezers
- Scenarios: Green Driving, Over Speeding, Crash Detection, Immobilizer, Geofencing, Jamming Detection, Towing Detection, Odometer, Offline Tracking
- Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep
- Remote configuration and firmware updates via FOTA Web and Teltonika Configurator
- Powered via USB for easier configuration
- Separate GNSS module suited to free-flow electronic tolling integration

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Cellular: 4G LTE Cat 1 with 2G (GSM) fallback
- Bands: Latin America variant
- GNSS: Dedicated module, dual-band L1 + L5 (GPS, GLONASS, Galileo, BeiDou, QZSS, DGPS)
- GNSS accuracy: <2.5 m CEP
- GNSS channels: 75 acquisition/tracking channels (L1), 60 tracking channels (L5)
- GNSS tracking sensitivity: -165 dBm
- GNSS hot start: 1 s
- Serial interfaces: 2 x RS232, 1 x RS485, 1-Wire
- CAN interfaces: 2 x CAN J1939, 1 x CAN J1708, K-Line
- Digital inputs: 4
- Digital outputs: 4
- Analog inputs: 4
- Bluetooth: 5.2 Low Energy
- SIM: Dual Nano SIM or eSIM
- Backup battery: 550 mAh Ni-MH
- Operating voltage: 8-32 V DC
- Protection: Reverse polarity and overvoltage protection
- Storage: MicroSD card support up to 32 GB
- Configuration: Mini-USB
- Antennas: External GNSS and cellular antennas

FAQs

Q: Which cellular networks does the FMC6508TFE01 support?
A: It is the Latin America band variant of the FMC650, with 4G LTE Cat 1 and 2G (GSM) fallback. Check that your carrier's bands match before deploying.

Q: Does it include external antennas?
A: Yes. This variant is supplied with external GNSS and cellular antennas.

Q: Can it read tachograph and CAN bus data?
A: Yes. It supports K-Line tachograph connectivity with remote file download and live data, plus CAN J1939 (FMS) and CAN J1708 (fuel) data.

Q: Which GNSS systems and frequencies does it use?
A: A dedicated dual-band L1 + L5 module covering GPS, GLONASS, Galileo, BeiDou and QZSS, with accuracy under 2.5 m CEP.

Q: What third-party devices can I connect?
A: The RS232, RS485 and 1-Wire interfaces support devices such as Garmin units, RFID and iButton readers, TPMS sensors, Iridium SBD modules and carrier freezers.

Q: How is the FMC650 configured and updated?
A: Configure it with the Teltonika Configurator over Mini-USB, or manage settings and firmware remotely via FOTA Web.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
