Teltonika FMC150UAXW01 | FMC150 4G LTE Cat 1 GPS Tracker, CAN Data Processor

Name: Teltonika FMC150UAXW01 | FMC150 4G LTE Cat 1 GPS Tracker, CAN Data Processor
Brand: Teltonika
SKU: FMC150UAXW01
Price: 202.4 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:FMC150UAXW01

In stock:9

$202.40 inc. GST

$184.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

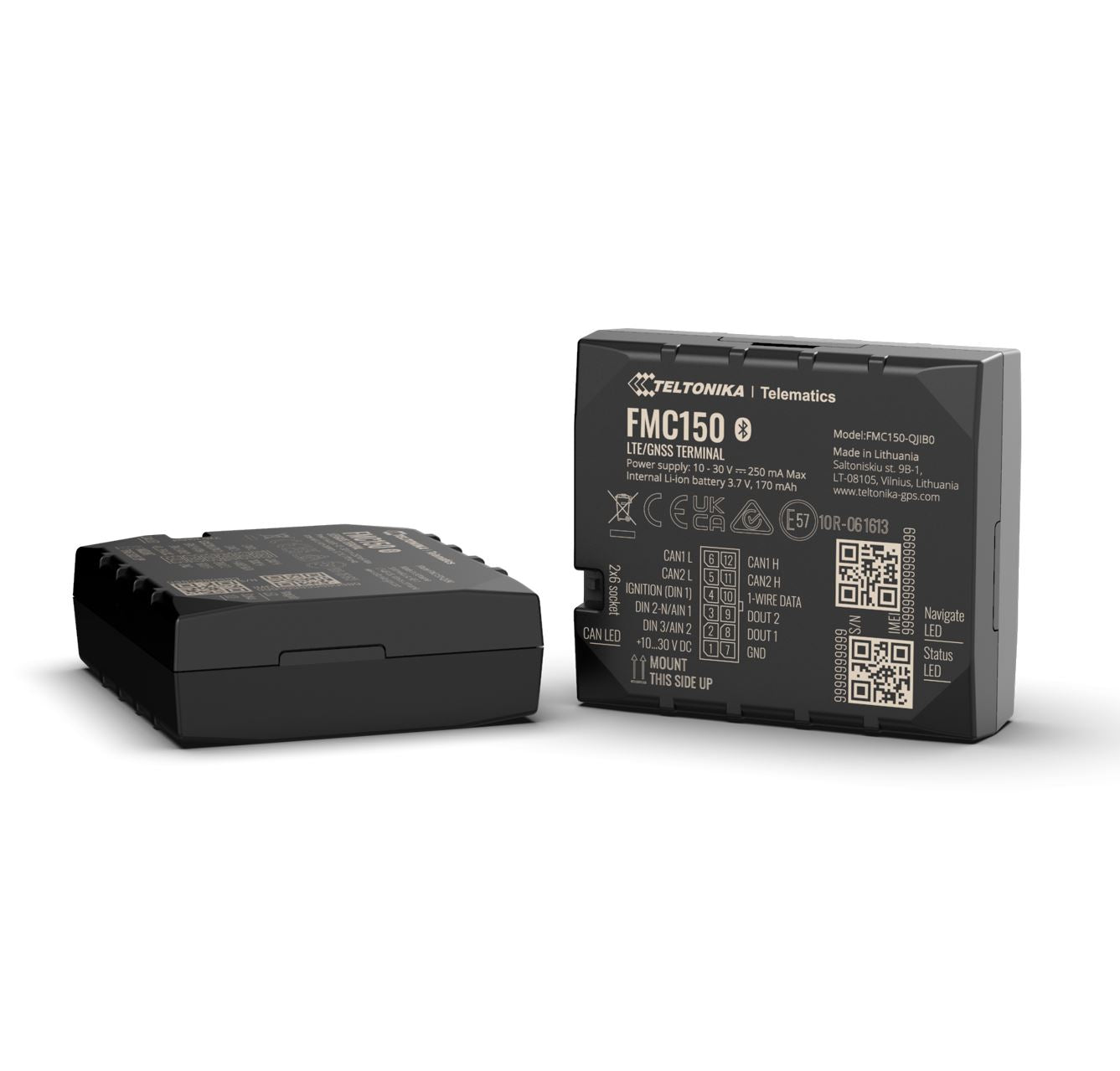

The Teltonika FMC150 is a 4G LTE Cat 1 GPS tracker with an integrated CAN data processor, built for vehicle and fleet telematics. It combines LTE Cat 1 with GSM/GPRS fallback, multi-constellation GNSS and Bluetooth 4.0 + LE in one compact 65 x 56.6 x 20.6 mm unit, and reads CAN data from light vehicles, electric vehicles, trucks and buses.

The FMC150 monitors fuel level and consumption, vehicle speed, driven distance, engine RPM and accelerator pedal position. It supports scenarios such as green driving, over speeding, jamming detection, excessive idling, immobiliser, towing and crash detection, and geofencing. Internal GNSS and GSM antennas, a 170 mAh Li-Ion backup battery and a 10-30 V DC input with overvoltage protection make for a simple, self-contained installation. Configuration and firmware updates are supported over USB, Bluetooth and FOTA.

Features

- Reliable 4G LTE Cat 1 connection with 2G (GSM) fallback
- Reads CAN data from electric vehicles, light vehicles, trucks and buses
- Monitors real fuel consumption and level, full mileage and engine temperature
- Negative input allows easier installation of accessories
- Scenarios include green driving, over speeding, jamming detection, excessive idling, immobiliser, towing and crash detection, geofencing and trip
- Multi-constellation GNSS with A-GPS for fast position fixes
- Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep and Ultra Deep Sleep
- Remote configuration and firmware updates via FOTA, Teltonika Configurator and the FMBT mobile app
- Internal GNSS and GSM antennas and internal backup battery

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 1 with GSM/GPRS fallback
- GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS, A-GPS
- Integrated CAN data processor with 2 CAN interfaces
- Bluetooth 4.0 + LE
- Micro-SIM or eSIM
- 10-30 V DC input with overvoltage protection
- 170 mAh Li-Ion backup battery (3.7 V)
- Internal high-gain GNSS and GSM antennas
- 128 MB internal flash memory
- 2.0 Micro-USB port and 1-Wire interface
- Built-in accelerometer
- 3 status LED indicators
- Operating temperature: -40 °C to +85 °C (without battery)
- IP41 ingress protection
- Dimensions: 65 x 56.6 x 20.6 mm, weight 55 g

FAQs

Q: Which networks does the FMC150 support?
A: It supports 4G LTE Cat 1 with GSM/GPRS fallback. 2G bands are B2/B3/B5/B8. LTE band support depends on the hardware variant, so confirm the bands needed for your region.

Q: What CAN data can the FMC150 read?
A: The integrated CAN data processor reads data such as fuel level, total fuel consumption, vehicle speed, driven distance, engine RPM and accelerator pedal position, from light vehicles, electric vehicles, trucks and buses.

Q: Which positioning systems does it use?
A: It uses GPS, GLONASS, Galileo, BeiDou and QZSS, with A-GPS support, through an internal high-gain GNSS antenna.

Q: What SIM options are available?
A: The FMC150 accepts a Micro-SIM or an eSIM.

Q: What is the power input range?
A: It operates from 10-30 V DC with overvoltage protection and includes a 170 mAh Li-Ion backup battery.

Q: Does it support Bluetooth accessories?
A: Yes. It has Bluetooth 4.0 + LE and supports peripherals such as temperature and humidity sensors, headsets, OBDII dongles, barcode scanners and universal Bluetooth LE sensors.
