Teltonika FMC1304OXW01 | FMC130 4G LTE Cat 1 Fleet Tracker, High Gain GNSS, Backup Battery

Name: Teltonika FMC1304OXW01 | FMC130 4G LTE Cat 1 Fleet Tracker, High Gain GNSS, Backup Battery
Brand: Teltonika
SKU: FMC1304OXW01
Price: 129.03 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:FMC1304OXW01

In stock:5

$129.03 inc. GST

$117.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

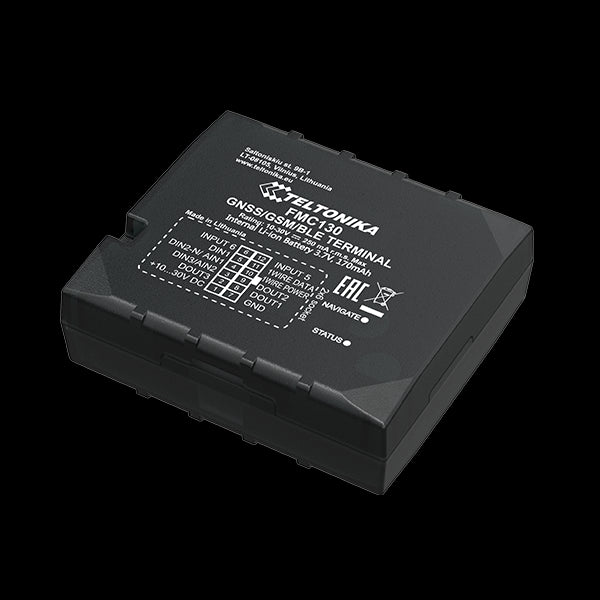

The Teltonika FMC130 is a hard-wired 4G LTE Cat 1 fleet tracker for real-time vehicle tracking, with 3G and 2G fallback for wider network coverage. This FMC1304OXW01 variant is fitted with high gain GNSS and IoT/GSM antennas and an internal backup battery, so the unit keeps reporting if vehicle power is lost or disconnected.

A compact terminal measuring 65 x 56.6 x 20.6 mm and weighing 55 g, it supports GPS, GLONASS, Galileo, BeiDou and QZSS positioning and runs from a 10-30 V DC supply. Configurable digital, negative and impulse inputs, three digital outputs, Bluetooth 4.0 + LE, 1-Wire and CAN adapter support make it suited to driver behaviour monitoring, fuel monitoring and asset management deployments.

Features

- 4G LTE Cat 1 with 3G/2G fallback for wider network coverage
- Internal backup battery keeps the device working without external power
- High gain GNSS and IoT/GSM antennas for dependable positioning and connectivity
- Configurable digital, analogue, negative and impulse inputs
- Three configurable digital outputs for scenarios such as immobiliser, buzzer, alarm lights and door lock
- Bluetooth support for BLE sensors, OBDII dongle and barcode scanner
- Supports 1-Wire sensors and CAN adapters
- Scenarios include eco driving, speeding detection and GNSS fuel counting
- Remote configuration and updates via FOTA Web, Teltonika Configurator (USB, Bluetooth) and the FMBT mobile app

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular: LTE Cat 1 with UMTS (3G) and GSM (2G) fallback
- GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS, A-GPS
- GNSS tracking sensitivity: -165 dBm, position accuracy under 2.5 m CEP
- Antennas: high gain GNSS and IoT/GSM
- Power input: 10-30 V DC with overvoltage protection
- Internal backup battery: 170 mAh Li-Ion, 3.7 V (0.63 Wh)
- Bluetooth 4.0 + LE
- Inputs/outputs: 3 digital inputs, 3 digital outputs, 1 negative input, 2 impulse inputs
- Interfaces: Micro USB, 1-Wire, CAN adapter support
- Dimensions: 65 x 56.6 x 20.6 mm, weight 55 g
- Operating temperature (without battery): -20 to +85 C

FAQs

Q: What cellular networks does the FMC1304OXW01 support?
A: It uses LTE Cat 1 with UMTS (3G) and GSM (2G) fallback, so it can stay connected where 4G coverage is limited.

Q: What does the internal backup battery do?
A: The 170 mAh Li-Ion backup battery lets the tracker keep operating and reporting if external vehicle power is interrupted.

Q: Which satellite systems does it use for positioning?
A: GPS, GLONASS, Galileo, BeiDou, QZSS and A-GPS, with position accuracy under 2.5 m CEP.

Q: What supply voltage does it accept?
A: It accepts a 10-30 V DC input with overvoltage protection, suitable for common 12 V and 24 V vehicle electrical systems.

Q: Can it connect to external sensors?
A: Yes. It supports Bluetooth 4.0 + LE peripherals such as temperature and humidity sensors, an OBDII dongle and a barcode scanner, plus 1-Wire sensors and CAN adapters.

Q: How is the device configured and updated?
A: Configuration and firmware updates can be done remotely via FOTA Web and FOTA, or locally using the Teltonika Configurator over USB or Bluetooth, and the FMBT mobile app.
