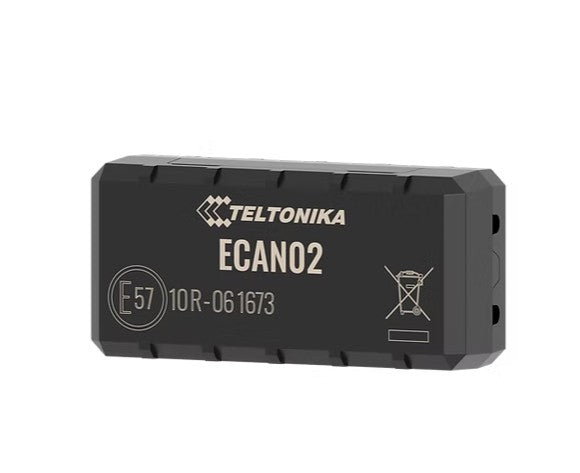

Teltonika ECAN02HWL301 | ECAN02 Contactless CAN Bus Adapter, 10-30V DC

Name: Teltonika ECAN02HWL301 | ECAN02 Contactless CAN Bus Adapter, 10-30V DC
Brand: Teltonika
SKU: ECAN02HWL301
Price: 45.76 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:ECAN02HWL301

In stock:20

$45.76 inc. GST

$41.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika ECAN02 is a contactless CAN bus adapter that reads vehicle CAN data through the insulation of the original CAN wires. Because the wires are not cut or physically connected, the vehicle warranty is kept intact, making it well suited to fleet telematics installations. It supports CAN bus speeds from 33 to 1000 kb/s and runs from a 10-30 V DC on-board power source.

The compact 39 x 19 x 12 mm adapter passes CAN signals to a compatible Teltonika tracking device or CAN reader, including the FMB140, FMB150, FMC150, FMM150, FMB640, FMB630, FM6320, FM6300, LV-CAN200 and ALL-CAN300 (J1939 CAN data). LED indicators confirm correct installation and data transmission, and the adapter operates from -40 to 85 C. It is designed for use with Teltonika devices only.

Features

- Collects vehicle data from the CAN bus without damaging the wires
- Reads the signals through the insulation of the CAN bus wires
- Warranty-friendly: no physical wire connections
- LED indicators show whether the adapter is installed correctly and when data is being transmitted
- Reads up to 100% of available CAN data at 1000 kb/s
- Newer, stronger and more robust casing
- Powered from the on-board power source
- Automatically adjusts signal level and speed
- Easy to install and operate
- Designed for use with Teltonika devices only

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Contactless CAN bus reading through wire insulation
- Input voltage range: 10-30 V DC
- Power consumption (standby, at 12 V): < 1.7 mA
- Power consumption (working, at 12 V): < 7.5 mA
- CAN bus speeds: 33 to 1000 kb/s
- Internal resettable fuse (max 33 V): 750 mA
- Dimensions (L x W x H): 39.0 x 19.0 x 12.0 mm
- Weight: 16.1 g
- Operating temperature: -40 to 85 C
- Operating humidity: max 85% non-condensing
- LED status indicators
- Supported with: LV-CAN200, ALL-CAN300, FMB140, FMB150, FMC150, FMM150, FMB640, FMB630, FM6320, FM6300 (J1939 CAN data)

FAQs

Q: Does the ECAN02 require cutting or splicing the vehicle's CAN wires?
A: No. The ECAN02 reads CAN signals through the insulation of the original CAN bus wires, so there are no physical wire connections and the vehicle warranty is kept.

Q: Which Teltonika devices is the ECAN02 compatible with?
A: It is supported with the LV-CAN200, ALL-CAN300, FMB140, FMB150, FMC150, FMM150, FMB640, FMB630, FM6320 and FM6300 for J1939 CAN data. It is designed for use with Teltonika devices only.

Q: What CAN bus speeds does the ECAN02 support?
A: It supports CAN bus speeds from 33 to 1000 kb/s and automatically adjusts signal level and speed. At 1000 kb/s it can read up to 100% of the available CAN data.

Q: What power supply does the ECAN02 need?
A: It is powered from the on-board power source and accepts an input voltage of 10-30 V DC. It draws less than 1.7 mA in standby and less than 7.5 mA when working, at 12 V.

Q: How can I tell if the ECAN02 is installed correctly?
A: The LED indicators show whether the adapter is installed correctly and when data is being transmitted.

Q: Can the ECAN02 be used in harsh environments?
A: It operates from -40 to 85 C at up to 85% non-condensing humidity, and has a newer, stronger and more robust casing than earlier CAN adapters.
