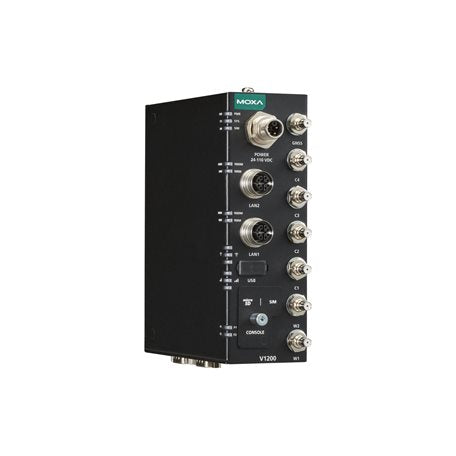

Moxa V1200-LTECat4-GL | V1200 LTE Cat 4 mPCIe Module Kit, Telit LE910C4, GNSS

Authorised Moxa Partner

SKU:V1200-LTECat4-GL

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The V1200-LTECat4-GL is an LTE Cat. 4 mPCIe cellular module kit for Moxa V1200 Series Arm-based computers. Built around the Telit LE910C4 card with global (GL) band coverage, it adds cellular connectivity and GNSS positioning to rugged industrial and transportation deployments. The kit includes three RF coaxial cables, two thermal pads and a heat sink, so installation needs no extra parts.

The module covers a wide range of LTE bands, with UMTS/HSPA and 2G fallback where LTE coverage is limited. GNSS support spans GPS, GLONASS, BeiDou, Galileo and QZSS via an external active antenna. It is designed for the mPCIe slot on the V1200 Series, whose railway certifications include EN 50155.

Features

- Adds LTE Cat. 4 cellular connectivity to V1200 Series Arm-based computers
- Global LTE, UMTS/HSPA and 2G band coverage
- Integrated GNSS support for GPS, GLONASS, BeiDou, Galileo and QZSS
- Complete kit with RF cables, thermal pads and heat sink for installation
- Designed for the V1200 Series, whose railway certifications include EN 50155

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Telit LE910C4 LTE Cat. 4 mPCIe card
- 3 x coaxial cables, I-PEX MHF male to QMA female (2 for data, 1 for GNSS)
- 2 x thermal pads and 1 x heat sink included
- Compatible with Moxa V1200 Series (mPCIe slot for LTE)
- LTE bands: 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 14, 18, 19, 20, 25, 26, 28
- UMTS/HSPA bands: 1, 2, 4, 5, 6, 8, 19
- 2G bands: PCS 1900, DCS 1800, GSM 850, EGSM 900
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- GNSS frequency range: 1559 to 1606 MHz
- GNSS antenna: external active antenna with pre-filter, typ. 14 to 17 dBi gain
- GNSS time to first fix: hot start 1.1 s, warm start 22.1 s, cold start 29.9 s
- GNSS sensitivity: cold start -145 dBm, tracking -160 dBm, acquisition -147 dBm
- GNSS update rate: minimum 1 Hz

FAQs

Q: Which Moxa computers is the V1200-LTECat4-GL compatible with?
A: It is designed for the Moxa V1200 Series Arm-based computers and installs in the mPCIe slot used for LTE.

Q: What is included in the kit?
A: The kit includes one Telit LE910C4 LTE Cat. 4 mPCIe card, three RF coaxial cables (I-PEX MHF male to QMA female), two thermal pads and one heat sink.

Q: Does it support GNSS positioning?
A: Yes. It supports GPS, GLONASS, BeiDou, Galileo and QZSS. One of the three cables is for GNSS, and an external active antenna is required.

Q: Can I use LTE and 5G at the same time on the V1200?
A: No. LTE and 5G cannot be operated at the same time on the V1200 Series.

Q: Does it fall back to 3G or 2G networks?
A: Yes. The module supports UMTS/HSPA and 2G bands in addition to LTE.

Q: What does the GL suffix mean?
A: GL denotes the global band variant of the Telit LE910C4 module, which covers a broad set of LTE, UMTS/HSPA and 2G bands.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
