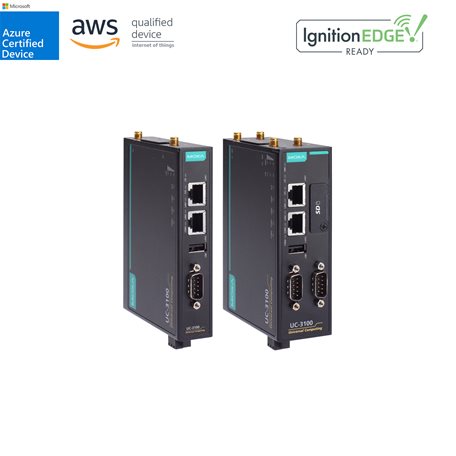

Moxa UC-3121-T-EU-LX | UC-3100 LTE Cat 1 Wi-Fi IoT Gateway, Serial, CAN, -40 to 70C

Authorised Moxa Partner

SKU:UC-3121-T-EU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UC-3121-T-EU-LX is a wide-temperature Arm-based industrial IoT gateway with built-in LTE Cat. 1 for the EU region and Wi-Fi 802.11a/b/g/n. Powered by a 1 GHz Armv7 Cortex-A8 processor with 1 GB DDR3 RAM and 8 GB eMMC storage, it connects serial and CAN devices to cellular, Wi-Fi and Ethernet networks for remote monitoring and edge data processing.

The gateway provides two 10/100 Mbps Ethernet ports, one software-selectable RS-232/422/485 serial port, one CAN 2.0 A/B port, a USB 2.0 host port and an SD slot. It runs Moxa Industrial Linux with long-term support, accepts a 9 to 36 VDC input and operates from -40 to 70°C, suiting transport, utility, energy and field-automation deployments.

Features

- Integrated LTE Cat. 1 (EU region) and Wi-Fi 802.11a/b/g/n connectivity
- Serial and CAN 2.0 A/B interfaces for connecting field devices
- Moxa Industrial Linux with long-term support
- Wide operating temperature range of -40 to 70°C
- Meets EN 61000-6-2 and EN 61000-6-4 industrial EMC standards
- Dual Ethernet ports with 1.5 kV magnetic isolation
- TPM v2.0 for hardware-based security
- CE, FCC and UL industrial-grade certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- Memory: 1 GB DDR3 RAM
- Storage: 8 GB eMMC
- Cellular: built-in LTE Cat. 1 (EU region), 2 x SMA antenna connectors, 2 x Nano SIM
- Wi-Fi: IEEE 802.11a/b/g/n
- Bluetooth 4.2
- Ethernet: 2 x 10/100 Mbps RJ45, 1.5 kV magnetic isolation
- Serial: 1 x RS-232/422/485 (software-selectable)
- CAN: 1 x CAN 2.0 A/B
- USB: 1 x USB 2.0 host (Type-A)
- Storage expansion: 1 x SD slot
- Security: TPM v2.0
- Input voltage: 9 to 36 VDC
- Operating temperature: -40 to 70°C
- Dimensions: 128.5 x 89.1 x 26 mm
- Weight: 550 g

FAQs

Q: Which cellular region does the UC-3121-T-EU-LX support?
A: This model has built-in LTE Cat. 1 for the EU region. Other UC-3100 variants cover the US and APAC regions.

Q: What serial and fieldbus interfaces does it provide?
A: It has one software-selectable RS-232/422/485 serial port and one CAN 2.0 A/B port, plus two 10/100 Mbps Ethernet ports.

Q: What is the operating temperature range?
A: It operates from -40 to 70°C, making it suitable for harsh industrial and outdoor cabinet environments.

Q: What operating system does it run?
A: It runs Moxa Industrial Linux, which includes long-term support.

Q: What power input does the gateway require?
A: It accepts 9 to 36 VDC input.

Q: Does it include Wi-Fi and Bluetooth?
A: Yes. It has Wi-Fi 802.11a/b/g/n and Bluetooth 4.2 built in, alongside LTE Cat. 1.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
