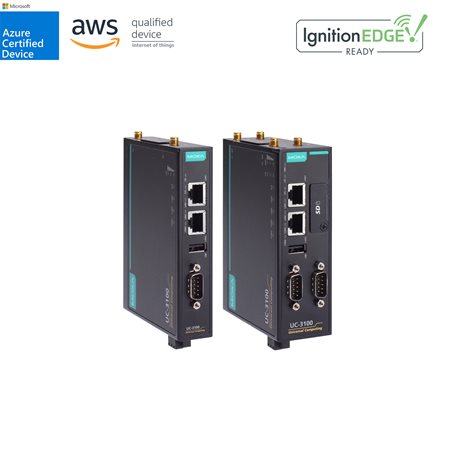

Moxa UC-3111-T-EU-LX-NW | UC-3100 Arm IoT Gateway, LTE Cat 1, 2x Serial, 2x Ethernet, -40 to 70°C

Authorised Moxa Partner

SKU:UC-3111-T-EU-LX-NW

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UC-3111-T-EU-LX-NW is a compact industrial Arm-based computer and IoT gateway for the EU region, built around a 1 GHz Armv7 Cortex-A8 CPU with 1 GB DDR3 RAM and 8 GB eMMC storage. It combines a built-in LTE Cat. 1 cellular module with 2 x 10/100 Mbps Ethernet ports and 2 x software-selectable RS-232/422/485 serial ports, making it well suited to connecting serial field devices to remote monitoring and cloud platforms. This NW variant has no Wi-Fi module and is rated for operation from -40 to 70°C.

The UC-3100 Series runs Moxa Industrial Linux 1 (Debian 9, kernel 4.4) with long-term support, and adds a Type-A USB 2.0 host port and a microSD-class SD storage slot for expansion. Hazardous location approvals (Class I Division 2, ATEX, IECEx) and industrial EMC, shock and vibration compliance allow deployment in demanding energy, utility and factory automation environments.

Features

- Built-in LTE Cat. 1 cellular module for EU region
- Wide operating temperature range of -40 to 70°C
- Software-selectable RS-232/422/485 serial ports
- Moxa Industrial Linux (Debian-based) with long-term support
- Hazardous location certifications (Class I Div 2, ATEX, IECEx)
- Industrial EMC, shock and vibration compliance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- RAM: 1 GB DDR3
- Storage: 8 GB eMMC pre-installed
- Storage slot: 1 x SD
- Ethernet: 2 x auto-sensing 10/100 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 software-selectable (DB9 male)
- USB: 1 x USB 2.0 host (Type-A)
- Cellular: LTE Cat. 1 (EU region), 2 x SMA antenna connectors, Nano SIM
- Wi-Fi antenna connectors: 2 x RP-SMA
- Operating temperature: -40 to 70°C
- OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4)
- Hazardous locations: Class I Division 2, ATEX, IECEx

FAQs

Q: Does the UC-3111-T-EU-LX-NW include Wi-Fi?
A: No. The NW designation means this model has no Wi-Fi module. It provides LTE Cat. 1 cellular connectivity and 2 x Ethernet ports.

Q: What serial interfaces does this gateway support?
A: It has 2 x DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: What operating temperature range is supported?
A: The -T variant is rated for operation from -40 to 70°C, suitable for outdoor cabinets and unheated industrial sites.

Q: Which operating system does it run?
A: It runs Moxa Industrial Linux 1, which is based on Debian 9 with kernel 4.4 and includes long-term support.

Q: Is this unit certified for hazardous locations?
A: Yes. The UC-3100 Series carries Class I Division 2, ATEX and IECEx hazardous location certifications.

Q: What SIM type does the cellular module use?
A: The LTE Cat. 1 module uses a Nano SIM and connects to cellular antennas through 2 x SMA connectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
