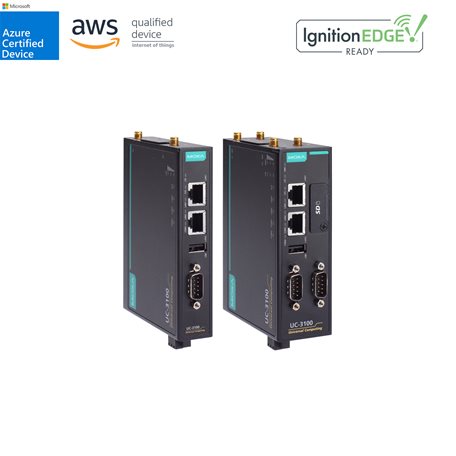

Moxa UC-3101-T-EU-LX | UC-3101 IIoT Gateway, LTE Cat 1 EU, 2x LAN, Linux

Authorised Moxa Partner

SKU:UC-3101-T-EU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UC-3101-T-EU-LX is a wide-temperature IIoT gateway and Arm-based industrial computer with a built-in LTE Cat. 1 module for the EU region. Powered by an Armv7 Cortex-A8 1 GHz CPU with 1 GB DDR3 RAM and 8 GB eMMC storage, it suits remote monitoring, protocol conversion and edge data collection where a cellular uplink is needed. This variant has 1 serial port, no CAN, no Wi-Fi and no SD slot.

Two 10/100 Mbps Ethernet ports, one software-selectable RS-232/422/485 serial port and a USB 2.0 host cover common field connectivity, while dual Nano SIM slots support cellular redundancy. It ships with Moxa Industrial Linux 1 (Debian 9), a long-term support distribution, TPM v2.0 for secure applications, and a metal housing for DIN-rail installation in a -40 to 70°C operating range.

Features

- Integrated LTE Cat. 1 module for EU bands, with dual Nano SIM slots for cellular connectivity
- Armv7 Cortex-A8 1 GHz processor for edge computing and protocol conversion
- Ships with Moxa Industrial Linux, with long-term Linux support until 2027 including bug fixes and security patches
- Wide -40 to 70°C operating range for harsh industrial environments
- TPM v2.0 for secure boot and credential storage applications
- Compliant with EN 61000-6-2 and EN 61000-6-4 industrial EMC standards
- Compact metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- Memory: 1 GB DDR3 RAM, 8 GB eMMC storage
- Cellular: built-in LTE Cat. 1 (EU bands 1/3/7/8/20/28A), UMTS bands 1/3/8
- SIM: 2 x Nano SIM, 2 x SMA cellular antenna connectors, 1 x SMA GPS antenna connector
- Ethernet: 2 x 10/100 Mbps auto-sensing (RJ45)
- Serial: 1 x RS-232/422/485 software-selectable (DB9 male), 50 bps to 921.6 kbps
- USB: 1 x USB 2.0 host (type-A)
- Security: TPM v2.0, 1.5 kV built-in magnetic isolation on Ethernet
- OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4)
- Power input: 9 to 36 VDC, 6 W maximum
- Dimensions: 128.5 x 89.1 x 26 mm (without ears), 550 g
- Operating temperature: -40 to 70°C
- Mounting: DIN-rail, wall mount with optional kit
- Hazardous locations: Class I Division 2, ATEX, IECEx

FAQs

Q: Does the UC-3101-T-EU-LX include Wi-Fi, CAN or an SD slot?
A: No. This EU LTE variant has 2 Ethernet ports, 1 RS-232/422/485 serial port and 1 USB 2.0 host. Wi-Fi, Bluetooth, CAN and SD slot options apply to other UC-3100 models.

Q: Which cellular bands does this model support?
A: It supports EU LTE Cat. 1 bands 1, 3, 7, 8, 20 and 28A, plus UMTS bands 1, 3 and 8, with two Nano SIM slots.

Q: What operating system does it run?
A: It runs Moxa Industrial Linux 1, based on Debian 9 with kernel 4.4, with long-term support until 2027.

Q: What power supply does it need?
A: It accepts 9 to 36 VDC input and draws up to 6 W. A power adapter is not described as included, so confirm your power source for the installation.

Q: How is it mounted?
A: It supports DIN-rail mounting as standard, and wall mounting with an optional kit.

Q: What temperature range can it operate in?
A: The -T variant is rated for -40 to 70°C operation, suitable for outdoor cabinets and harsh industrial sites.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
