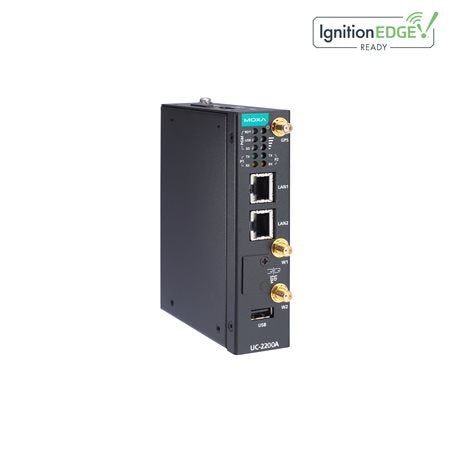

Moxa UC-2222A-T-EU | UC-2200A Industrial IoT Gateway, LTE Cat. 4 (EU), 2x RS-232/422/485, 2x GbE

Authorised Moxa Partner

SKU:UC-2222A-T-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UC-2222A-T-EU is a compact, fanless industrial IoT gateway from the UC-2200A series, built on an Armv8 Cortex-A53 dual-core 1 GHz processor with 2 GB DDR4 RAM and 16 GB eMMC storage. This variant includes a preinstalled LTE Cat. 4 module for European bands (B1/B3/B7/B8/B20/B28A), a 12 to 24 VDC power input and a -40 to 70°C operating range, making it well suited to remote sites, field cabinets and harsh industrial environments.

Two 10/100/1000 Mbps Ethernet ports and two software-selectable RS-232/422/485 serial ports let it bridge serial field devices to IP networks and cellular backhaul. It runs Moxa Industrial Linux with long-term support, includes a TPM v2.0 module and IEC 62443-4-2 Security Level 2 cybersecurity, and ships in an IP30 metal housing for DIN-rail mounting. GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS) and ATEX and Class I Division 2 hazardous location certifications broaden the deployment options.

Features

- Compact fanless design with metal housing for space-critical installations
- Preinstalled LTE Cat. 4 module with European band support
- TPM v2.0 and IEC 62443-4-2 Security Level 2 for secure deployments
- Moxa Industrial Linux (Debian-based) with long-term support
- Wide -40 to 70°C operating temperature range
- ATEX and Class I Division 2 hazardous location certifications
- Integrated GNSS support across GPS, GLONASS, BeiDou, Galileo and QZSS
- Software-selectable RS-232/422/485 serial ports for flexible field device connectivity
- External RTC and watchdog timer for reliable unattended operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv8 Cortex-A53 dual-core 1 GHz
- Memory: 2 GB DDR4 RAM
- Storage: 16 GB eMMC, 1x micro SD slot
- Ethernet: 2x auto-sensing 10/100/1000 Mbps (RJ45), 1.5 kV magnetic isolation
- Serial: 2x RS-232/422/485 (software-selectable, terminal block), 300 bps to 921.6 kbps
- USB: 1x USB 2.0 host (Type-A)
- Expansion: 1x mPCIe slot
- Cellular: LTE Cat. 4, 1x Nano SIM, LTE B1/B3/B7/B8/B20/B28A, UMTS/HSPA B8/B3/B1, GSM DCS 1800/GSM 900
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS, 2.0 m accuracy @CEP50
- Security: TPM v2.0, IEC 62443-4-2 Security Level 2, EN 18031-1
- Operating system: Moxa Industrial Linux 3 (Debian 11) or Moxa Industrial Linux 4 (Debian 13)
- Power input: 12 to 24 VDC, 7.8 W typical (10.5 W with USB device)
- Operating temperature: -40 to 70°C
- Housing: IP30 metal (SECC), 102 x 32 x 128 mm, 546 g
- Mounting: DIN-rail, wall mount with optional kit
- Approvals: CE (RED), EN 62368-1, UL 62368-1, ATEX, Class I Division 2, AT&T, Verizon, PTCRB

FAQs

Q: Which cellular bands does the UC-2222A-T-EU support?
A: It includes a preinstalled LTE Cat. 4 module for the European region covering LTE B1/B3/B7/B8/B20/B28A, with UMTS/HSPA B8/B3/B1 and GSM DCS 1800/GSM 900 fallback. It uses a single Nano SIM.

Q: What operating systems does it support?
A: It runs Moxa Industrial Linux 3 (Debian 11, kernel 5.10) or Moxa Industrial Linux 4 (Debian 13, kernel 6.12), both with long-term support.

Q: Are the serial ports fixed to one interface type?
A: No. Both serial ports are software-selectable between RS-232, RS-422 and RS-485, with baud rates from 300 bps to 921.6 kbps.

Q: What power input does this model use?
A: It accepts 12 to 24 VDC. Typical power consumption is 7.8 W without an external USB device and 10.5 W with one attached.

Q: Can it operate in extreme temperatures?
A: Yes. The operating temperature range is -40 to 70°C, and it is rated to 5 to 95% non-condensing humidity.

Q: How is the UC-2222A-T-EU mounted?
A: It mounts on a DIN rail as standard, with an optional kit available for wall mounting. The IP30 metal housing suits installation inside enclosures and cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
