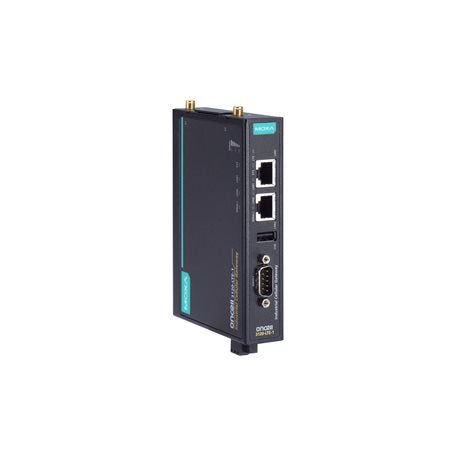

Moxa OnCell3120-LTE-1-AU | OnCell 3120-LTE-1 Industrial LTE Cat. 1 Cellular Gateway, AU Bands, 0-55C

Authorised Moxa Partner

SKU:OnCell3120-LTE-1-AU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The OnCell 3120-LTE-1-AU is an industrial LTE Cat. 1 cellular gateway that connects remote serial and Ethernet devices to a cellular network. This AU variant covers Australian LTE bands (B1/B3/B5/B8/B9/B18/B19/B26/B28), is rated for 0 to 55°C operation and supports wall and DIN-rail mounting. It provides 1 x RS-232/422/485 serial port, 2 x 10/100BaseT(X) RJ45 ports and dual Nano SIM slots.

Built for remote monitoring and control deployments, it offers IPsec, GRE and OpenVPN support, GuaranLink for reliable cellular connectivity, and cellular/Ethernet WAN backup for path redundancy. The IP30 metal housing accepts 9 to 36 VDC input with reverse polarity protection, and the unit carries hazardous location approvals including ATEX Zone 2, IECEx and Class I Division 2.

Features

- Dual-SIM design supports backup between two cellular operators
- GuaranLink for reliable cellular connectivity
- Cellular WAN and Ethernet WAN backup for path redundancy
- IPsec, GRE, OpenVPN and NAT support for secure remote links
- Cybersecurity features based on IEC 62443-4-2
- Supports MRC Quick Link Ultra for centralised monitoring and remote access
- Low power consumption, under 40 mW in standby
- Rugged design suited to hazardous locations (ATEX Zone 2, C1D2, IECEx)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- LTE Cat. 1 with AU bands B1/B3/B5/B8/B9/B18/B19/B26/B28
- Fallback to HSPA, UMTS, EDGE, GPRS and GSM
- LTE data rate (10 MHz bandwidth): 10.2 Mbps downlink, 5.2 Mbps uplink
- HSPA data rates: 7.2 Mbps downlink, 5.76 Mbps uplink
- Dual Nano SIM slots
- 2 x SMA female cellular antenna connectors
- 2 x 10/100BaseT(X) RJ45 ports
- 1 x RS-232/422/485 serial port, DB9 male, 75 bps to 921.6 kbps
- 1 x USB 2.0 Type A port
- Concurrent VPN tunnels: 5 x IPsec and 5 x OpenVPN
- Input voltage: 9 to 36 VDC, terminal block, reverse polarity protection
- Power consumption: 5 W (typical), 0.8 A (maximum)
- IP30 metal housing, 128.5 x 26 x 89.1 mm, 550 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 85°C
- Hazardous locations: ATEX, IECEx, Class I Division 2
- Radio approvals include RCM, KC, JATE, NCC and TELEC
- MTBF: 585,775 hrs (Telcordia SR332)

FAQs

Q: Which cellular bands does the OnCell 3120-LTE-1-AU support?
A: This AU model supports LTE bands B1, B3, B5, B8, B9, B18, B19, B26 and B28, with fallback to HSPA, UMTS, EDGE, GPRS and GSM.

Q: What interfaces does it provide for connecting field devices?
A: It has 1 x RS-232/422/485 serial port (DB9 male), 2 x 10/100BaseT(X) RJ45 ports and 1 x USB 2.0 Type A port.

Q: Does it support dual SIM operation?
A: Yes. It has two Nano SIM slots, allowing backup between two cellular operators.

Q: What is the operating temperature range?
A: This model is rated for operation from 0 to 55°C. It is not a wide-temperature variant.

Q: How is it powered and mounted?
A: It takes 9 to 36 VDC through a terminal block with reverse polarity protection. It mounts on a DIN rail, or on a wall with the optional mounting kit.

Q: Which VPN protocols are supported?
A: It supports IPsec, GRE and OpenVPN, with up to 5 concurrent IPsec tunnels and 5 concurrent OpenVPN tunnels.
