Moxa OnCell 3120-LTE-1-AU | OnCell 3120-LTE-1 Cellular Gateway, LTE Cat 1, B3/B5/B8/B28

Authorised Moxa Partner

SKU:OnCell 3120-LTE-1-AU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

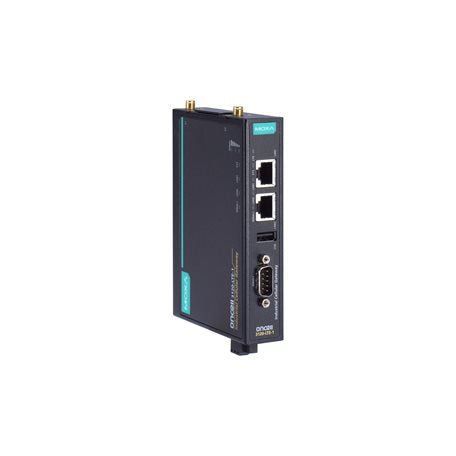

The Moxa OnCell 3120-LTE-1-AU is an industrial LTE Cat. 1 cellular gateway built for the Australian market, supporting LTE bands B3, B5, B8 and B28. It connects serial and Ethernet devices to a cellular network, making it suited to remote monitoring, telemetry and industrial automation deployments where a wired uplink is not available.

The gateway provides one RS-232/422/485 serial port and two 10/100BaseT(X) RJ45 Ethernet ports, and operates across a 0 to 55°C temperature range. This AU band variant is intended for use on Australian LTE networks.

Features

- LTE Cat. 1 cellular connectivity for remote sites
- Bands B3, B5, B8 and B28 for Australian LTE networks
- Serial and Ethernet interfaces for connecting legacy and IP devices
- Industrial design for 0 to 55°C operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: Industrial LTE Cat. 1 cellular gateway
- LTE bands: B3/B5/B8/B28 (AU band variant)
- Serial: 1 x RS-232/422/485 port
- Ethernet: 2 x 10/100BaseT(X) RJ45 ports
- Operating temperature: 0 to 55°C

FAQs

Q: Which LTE bands does the OnCell 3120-LTE-1-AU support?
A: It supports LTE bands B3, B5, B8 and B28, which is the AU band variant of the OnCell 3120-LTE-1.

Q: What interfaces does this gateway provide?
A: It provides one RS-232/422/485 serial port and two 10/100BaseT(X) RJ45 Ethernet ports.

Q: What is the operating temperature range?
A: The OnCell 3120-LTE-1-AU operates from 0 to 55°C.

Q: What cellular technology does it use?
A: It is an LTE Cat. 1 cellular gateway, suited to low to moderate bandwidth industrial and telemetry applications.

Q: Is this model intended for Australian networks?
A: Yes, the -AU variant is configured with LTE bands B3, B5, B8 and B28 for the Australian market.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
