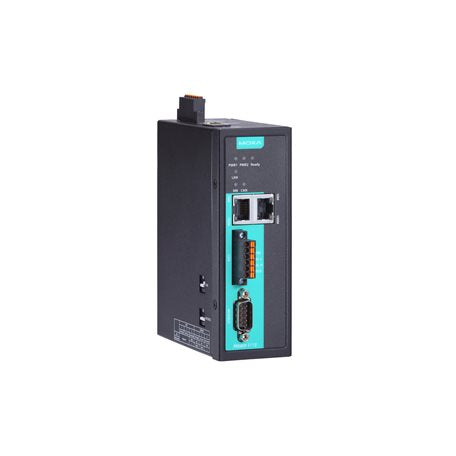

Moxa MGate 5118 | J1939 to Modbus/PROFINET/EtherNet/IP Gateway

Authorised Moxa Partner

SKU:MGate 5118

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5118 is an industrial protocol gateway that converts SAE J1939 (CAN bus) data from engines, generators and similar equipment into Modbus RTU/ASCII/TCP, PROFINET IO device or EtherNet/IP, so PLCs and SCADA systems can monitor and control J1939 devices. This standard temperature model operates from 0 to 60°C and pairs a single isolated CAN port with an RS-232/422/485 serial port and two 10/100 Ethernet ports.

A built-in web console with a configuration wizard and J1939 command auto-detection simplifies setup, while the microSD slot supports configuration backup, duplication and event logging. The metal IP30 housing suits DIN-rail mounting in control cabinets, with 12 to 48 VDC input and IEC 62443-based security features for industrial networks.

Features

- Converts J1939 to Modbus, PROFINET or EtherNet/IP
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Key-in-free J1939 command auto-detection via web console
- Web-based configuration wizard for quick setup
- Built-in Ethernet cascading for simpler wiring
- Embedded traffic monitoring and diagnostics, including a Live List function
- microSD card for configuration backup, duplication and event logs
- Status monitoring and fault protection for cable faults
- CAN bus and serial port with 2 kV isolation protection
- Security features based on IEC 62443

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN (J1939) port, 250/500 kbps, 2 kV isolation, spring-type Euroblock terminal
- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation, 50 bps to 921.6 kbps
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with built-in cascading, 1.5 kV magnetic isolation
- Ethernet protocols: Modbus TCP Client/Server, PROFINET IO Device, EtherNet/IP Scanner and Adapter
- Serial protocols: J1939, Modbus RTU/ASCII Master and Slave
- J1939: up to 256 commands, 2048 bytes input and 2048 bytes output data
- PROFINET: 512 bytes input, 512 bytes output, 1 IO controller connection
- EtherNet/IP: 496 bytes input, 496 bytes output, up to 4 adapter connections
- microSD slot up to 32 GB
- Input voltage 12 to 48 VDC, 416 mA @ 12 VDC, spring-type Euroblock terminal
- Operating temperature 0 to 60°C, storage -40 to 85°C, humidity 5 to 95% non-condensing
- Metal housing, IP30, DIN-rail mount
- Dimensions 45.8 x 105 x 134 mm, weight 589 g
- Hazardous locations: ATEX, Class I Division 2, IECEx

FAQs

Q: What protocols does the MGate 5118 convert between?
A: It converts SAE J1939 data from the CAN port to Modbus RTU/ASCII/TCP, PROFINET IO device or EtherNet/IP, allowing PLCs and SCADA systems to read and control J1939 equipment.

Q: Can the MGate 5118 act as both a Modbus master and slave?
A: Yes. It supports Modbus RTU/ASCII master and slave on the serial port, and Modbus TCP client and server over Ethernet.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for 0 to 60°C operation.

Q: What CAN bus speeds are supported?
A: The isolated CAN port supports 250 kbps and 500 kbps, with a built-in 120 ohm terminator option.

Q: How is the gateway configured?
A: Configuration is done through the web console (HTTP/HTTPS), Device Search Utility or Telnet. The web console includes a wizard and J1939 command auto-detection to reduce manual entry.

Q: What power supply does the MGate 5118 need?
A: It accepts 12 to 48 VDC via a spring-type Euroblock terminal, drawing 416 mA at 12 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
