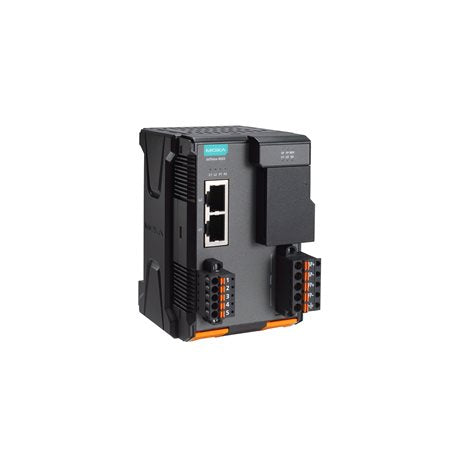

Moxa ioThinx 4533-LX (V1) | ioThinx 4533-LX V1 Modular Linux Controller, 512MB, 3-in-1 Serial

Authorised Moxa Partner

SKU:ioThinx 4533-LX (V1)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioThinx 4533-LX (V1) is a modular Linux controller for industrial edge control, built around a dual-core Cortex-A7 1 GHz CPU with 512 MB DDR3 RAM and 8 GB eMMC storage. This V1 (legacy) hardware revision includes a built-in 3-in-1 serial port and is rated for operation from -20 to 60 C, making it suited to control cabinets and DIN-rail installations.

The controller expands with ioThinx 45MR I/O modules (up to 64) and ioThinx 45ML communication modules (up to 5), supporting up to 1,024 digital I/O points in a compact footprint under 10 cm wide. A microSD slot provides storage expansion, and the open Linux platform allows custom edge control applications to be deployed.

Features

- Tool-free installation and removal of the controller and modules
- Supports up to 64 45MR I/O modules and up to 5 45ML communication modules
- Up to 1,024 digital I/O points per fully equipped controller in a compact footprint under 10 cm wide
- microSD socket for storage expansion
- Open Linux platform for custom edge control applications
- Series carries Class I Division 2 and ATEX Zone 2 certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: NXP i.MX7D Armv7 Cortex-A7 dual-core, 1 GHz
- Memory: 512 MB DDR3 RAM
- Storage: 8 GB eMMC pre-installed, microSD slot x 1
- Serial: 1 x built-in 3-in-1 serial port
- Expansion: up to 64 x 45MR I/O modules and up to 5 x 45ML communication modules
- Operating system: Linux
- Operating temperature: -20 to 60 C
- Mounting: DIN-rail
- Hardware revision: V1 (V1.0.1 legacy)

FAQs

Q: How many I/O modules can the ioThinx 4533-LX (V1) support?
A: It supports up to 64 ioThinx 45MR I/O modules and up to 5 ioThinx 45ML communication modules, giving up to 1,024 digital I/O points in a fully equipped configuration.

Q: What operating system does this controller run?
A: It runs Linux on a dual-core Cortex-A7 1 GHz CPU, so custom edge control applications can be developed and deployed on an open platform.

Q: What does the V1 (legacy) designation mean?
A: V1 refers to the V1.0.1 hardware revision with 512 MB DDR3 RAM and a -20 to 60 C operating range. Check hardware revision compatibility before mixing it with newer units in an existing deployment.

Q: What serial connectivity is built in?
A: It has one built-in 3-in-1 serial port. Additional serial connectivity can be added with ioThinx 45ML communication modules.

Q: Can storage be expanded?
A: Yes. The controller ships with 8 GB of eMMC storage and includes a microSD slot for additional storage.

Q: Is this model suitable for extreme temperatures?
A: This model is rated for -20 to 60 C. A wide-temperature -40 to 75 C variant (4533-LX-T) is available in the same series.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
