Moxa ioThinx 4533-LX-T (V1) | ioThinx 4533 Modular Controller, Linux, Dual-Core 1 GHz, -40 to 75°C

Authorised Moxa Partner

SKU:ioThinx 4533-LX-T (V1)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

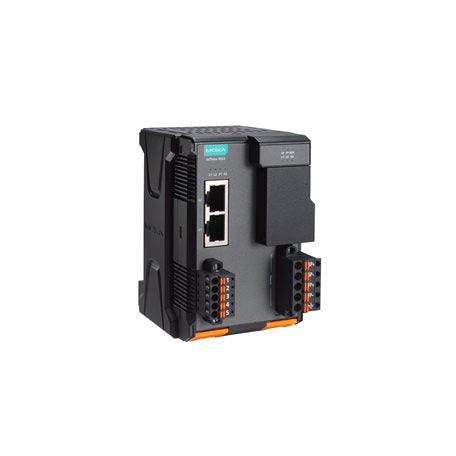

The Moxa ioThinx 4533-LX-T (V1) is a modular controller from the ioThinx 4530 Series, built around an Armv7 Cortex-A7 dual-core 1 GHz CPU and running Moxa Industrial Linux 3. This -T variant is rated for a wide -40 to 75°C operating temperature and includes a built-in serial port, making it well suited to harsh industrial automation, remote monitoring and data acquisition deployments.

It supports up to 64 ioThinx 45MR I/O modules and up to 5 45ML communication modules, so the system can be scaled to match each site. With 2 GB DDR3L memory, 8 GB eMMC storage, a microSD slot for expansion and C/C++ and Python programming support, it gives developers a flexible edge platform. Class I Division 2 and ATEX certifications allow use in hazardous locations.

Features

- Wide -40 to 75°C operating temperature for harsh environments
- Built-in serial port for connecting legacy field devices
- Tool-free installation and removal
- Scales with up to 64 45MR I/O modules and up to 5 45ML communication modules
- microSD socket for storage expansion
- Class I Division 2 and ATEX Zone 2 certifications
- Moxa Industrial Linux 3 with C/C++ and Python development support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
- DRAM: 2 GB DDR3L
- MRAM: 128 kB
- Storage: 8 GB eMMC pre-installed (6 GB reserved for user)
- Storage expansion: 1 x microSD slot (up to 32 GB)
- Expansion: up to 64 x 45MR I/O modules and up to 5 x 45ML communication modules
- Programming languages: C/C++, Python
- Real-time clock with capacitor backup
- Power input: 12/24 VDC, spring-type Euroblock terminal
- Operating temperature: -40 to 75°C
- Hazardous locations: Class I Division 2, ATEX
- MTBF: 954,606 hrs (Telcordia SR-332)

FAQs

Q: What operating system does the ioThinx 4533-LX-T (V1) run?
A: It runs Moxa Industrial Linux 3, which is based on Debian 11 with kernel 5.10. Applications can be developed in C/C++ or Python.

Q: What temperature range is this controller rated for?
A: The -T variant is rated for an operating temperature of -40 to 75°C, suitable for outdoor cabinets and unconditioned industrial enclosures.

Q: How many I/O modules can be attached?
A: It supports up to 64 ioThinx 45MR I/O modules and up to 5 ioThinx 45ML communication modules.

Q: Can the storage be expanded?
A: Yes. It has 8 GB of eMMC storage (6 GB reserved for user data) and a microSD slot that accepts cards up to 32 GB.

Q: Is it approved for hazardous locations?
A: Yes. It carries Class I Division 2 and ATEX certifications for use in hazardous locations.

Q: What power supply does it need?
A: It operates from a 12/24 VDC input through a spring-type Euroblock terminal.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
