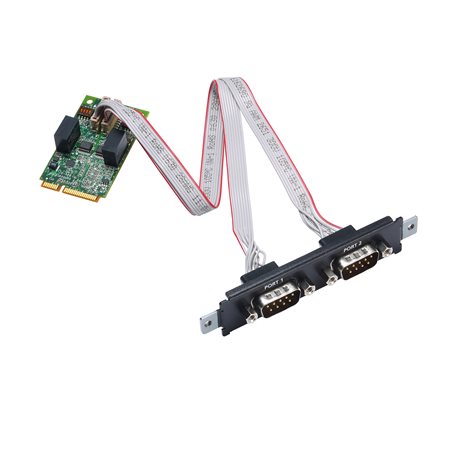

Moxa CP-102N-T/KC | CP-102N Mini PCIe Serial Board, 2-Port RS-232, -40 to 85°C

Authorised Moxa Partner

SKU:CP-102N-T/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CP-102N-T/KC is a 2-port RS-232 Mini PCI Express serial board designed for industrial automation systems and industrial PC manufacturers. It adds two DB9 male serial ports to any host with a Mini PCI Express slot, and its wide operating temperature range of -40 to 85°C suits harsh and temperature-critical deployments.

The board runs from a 3.3 VDC supply and works with everything from compact DIN-rail PCs through to standard-sized PCs. It provides full modem control signals for compatibility with a broad range of serial peripherals, offers 1 kV line-to-line surge protection, and supports Windows and Linux. This is the /KC variant of the CP-102N-T.

Features

- Compatible with any Mini PCI Express slot
- Requires only a 3.3 VDC power supply
- Full modem control signals for compatibility with a wide range of serial peripherals
- 1 kV line-to-line surge protection
- Supports Windows and Linux
- Wide-temperature operation from -40 to 85°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Bus: Mini PCI Express
- Serial ports: 2 x RS-232
- Connector: 2 x DB9 male
- Communication controller: 16C550C compatible
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- FIFO: 128 bytes
- Parity: None, Even, Odd, Space, Mark
- Stop bits: 1, 1.5, 2
- Flow control: None, RTS/CTS, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input current: 377 mA @ 3.3 VDC
- Dimensions: 30 x 50.95 mm
- Operating temperature: -40 to 85°C

FAQs

Q: What type of slot does the CP-102N-T/KC require?
A: It requires a Mini PCI Express slot on the host system and runs from a 3.3 VDC supply.

Q: How many serial ports does it provide and what interface?
A: It provides two RS-232 ports on DB9 male connectors, with full modem control signals including RTS, CTS, DTR, DSR and DCD.

Q: What operating systems are supported?
A: The board supports Windows and Linux.

Q: What is the operating temperature range?
A: This wide-temperature model operates from -40 to 85°C, suitable for harsh industrial environments.

Q: What baudrates does it support?
A: It supports baudrates from 50 bps up to 921.6 kbps, including non-standard baudrates, with a 128-byte FIFO.

Q: Does the board include surge protection?
A: Yes, it provides 1 kV line-to-line surge protection on its serial ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
