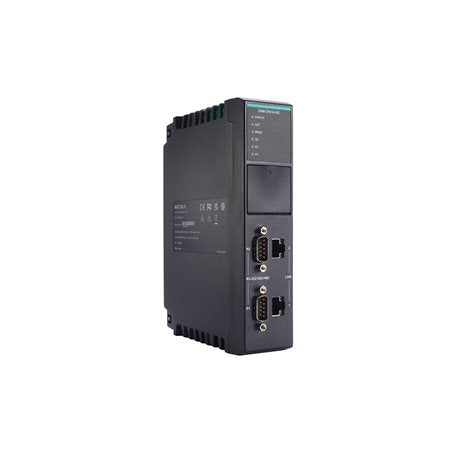

Moxa 65M-CPU14-IEC-CT-T | ioPAC 6500 IEC 61131-3 CPU Module, 2x Serial, -40 to 75°C, Coated, 2x GbE

Authorised Moxa Partner

SKU:65M-CPU14-IEC-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-CPU14-IEC-CT-T is an ioPAC 6500 IEC 61131-3 CPU module for rugged, modular RTU and controller deployments. Built on a quad-core Arm Cortex-A53 processor running Moxa Industrial Linux 3, it provides two Gigabit Ethernet ports and two 3-in-1 RS-232/422/485 serial ports, with a conformal coating and a -40 to 75°C operating range for harsh industrial environments.

With 4 GB DDR4 SDRAM, 8 GB eMMC storage and 512 KB MRAM for data logging, this CPU module suits substations, remote monitoring and process automation applications. It mounts on a DIN rail, with optional rack mounting available through a separate kit, and is programmed using the IEC 61131-3 languages.

Features

- Linux-based RTU and controller platform
- IEC 61131-3 programming support
- Wide -40 to 75°C operating temperature range
- Conformal coating for harsh environments
- Dual Gigabit Ethernet ports
- Two software-selectable RS-232/422/485 serial ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Arm Cortex-A53 quad-core, 1.6 GHz
- OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
- Memory: 4 GB DDR4 SDRAM, 512 KB MRAM for logger
- Storage: 8 GB eMMC preinstalled (4 GB reserved for users)
- Ethernet: 2 x 10/100/1000BaseT(X) RJ45 (2 MACs/IPs), 1.5 kV magnetic isolation
- Serial: 2 x DB9 male, RS-232/422/485 (3-in-1), 300 to 115200 bps
- Programming: IEC 61131-3 languages
- Input current: 0.8 A @ 12 VDC
- Dimensions: 42 x 177 x 134.8 mm
- Weight: 625 g
- Housing: plastic, DIN-rail mounting, optional rack mounting kit
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Conformal coating

FAQs

Q: What programming languages does the 65M-CPU14-IEC-CT-T support?
A: It supports the IEC 61131-3 programming languages.

Q: What operating temperature range does this CPU module support?
A: It operates from -40 to 75°C, and proper airflow is required above 65°C.

Q: What serial interfaces does it provide?
A: It has two DB9 male serial ports, each supporting RS-232, RS-422 or RS-485, at baud rates from 300 to 115200 bps.

Q: Does this module have a conformal coating?
A: Yes, the circuit boards are conformal coated for added protection in harsh industrial environments.

Q: How is the module mounted?
A: It mounts on a DIN rail, and rack mounting is possible with an optional kit.

Q: What operating system does it run?
A: It runs Moxa Industrial Linux 3, which is based on Debian 11 with kernel 5.10.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
