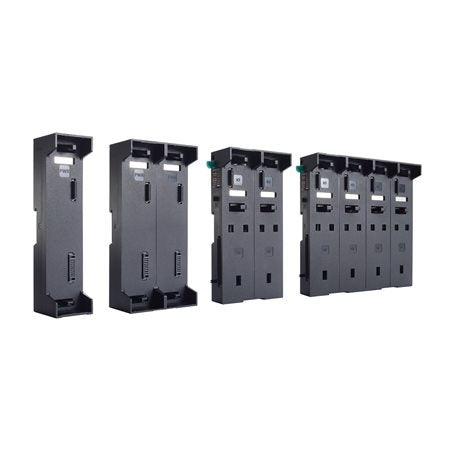

Moxa 65M-BMPW01-CT-T | ioPAC 6500 Power Backplane, 1 Slot, Conformal Coated, -40 to 75C

Authorised Moxa Partner

SKU:65M-BMPW01-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-BMPW01-CT-T is a single-slot power backplane module for the modular, Linux-based ioPAC 6500 controller. It hosts one power module and connects it to the other backplane modules in the system, forming the power foundation of an ioPAC 6500 assembly. The conformal-coated housing is rated for -40 to 75°C, suiting harsh industrial automation, transport and energy deployments.

The fully modular design allows flexible deployment, with tool-free installation and a hot-swappable build. A 2 x 2 pin grid prevents erroneous installation by enforcing the assembly order of power, communication, CPU, expansion and I/O modules. The module is developed according to IEC 62443-4-2 SL2 standards, and a rear grounding spring connects directly to the DIN rail when mounted.

Features

- Tool-free hardware installation and hot-swappable design
- Fully modular design for flexible deployment
- 2 x 2 pin grid design prevents erroneous installation (assembly order PWR > COM > CPU > EXP > IO)
- Developed according to IEC 62443-4-2 SL2 standards
- Grounding spring on the rear connects directly to the DIN rail when mounted
- Conformal coating and -40 to 75°C rating for harsh environments
- Supports Turbo Ring, Turbo Chain, and RSTP/STP network redundancy at the system level

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Slots: 1 (for 1 power module)
- Dimensions: 43 x 177 x 45.5 mm (1.69 x 6.97 x 1.79 in)
- Weight: 162 g (0.36 lb)
- Housing: Plastic
- Operating temperature: -40 to 75°C (-40 to 167°F), proper airflow required above 65°C
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Conformal coated (CT), wide temperature (T)
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: How many power modules does the 65M-BMPW01-CT-T support?
A: It is a single-slot backplane that hosts one power module and connects it to the other backplane modules in the ioPAC 6500 system.

Q: What operating temperature range does this backplane support?
A: It operates from -40 to 75°C (-40 to 167°F). Proper airflow is required when operating above 65°C.

Q: What do the CT and T suffixes in the part number mean?
A: CT indicates a conformal-coated housing for added protection in harsh environments, and T indicates the wide operating temperature range.

Q: Can this module be installed in any position in the ioPAC 6500 assembly?
A: No. A 2 x 2 pin grid prevents erroneous installation and enforces the assembly order of power, communication, CPU, expansion and I/O modules.

Q: Is the module hot-swappable and does it need tools to install?
A: Yes. It uses a tool-free installation and hot-swappable design.

Q: Does it meet any industrial security standards?
A: It is developed according to IEC 62443-4-2 SL2 standards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
