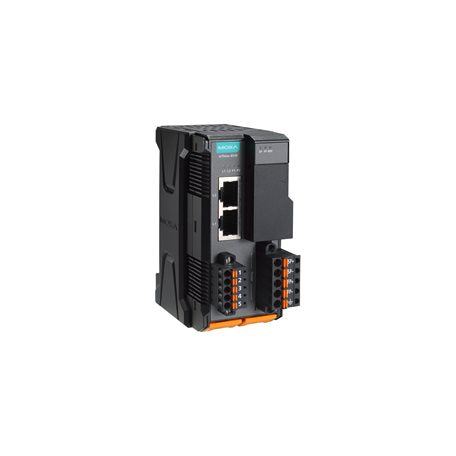

Moxa ioThinx 4510 | Modular Remote I/O Adapter, RS-232/422/485

Authorised Moxa Partner

SKU:ioThinx 4510

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioThinx 4510 is a modular remote I/O adapter with a built-in 3-in-1 serial port (RS-232/422/485) and Modbus RTU gateway function. It converts I/O and serial data to Modbus TCP, SNMP, MQTT and RESTful API, and supports up to 32 ioThinx 4500 Series I/O modules. This standard temperature model operates from -20 to 60°C and mounts on a DIN rail.

The adapter provides two 10/100BaseT(X) Ethernet ports, tool-free installation and removal, and configuration through a web console, the IOxpress Windows utility or the MCC Tool. Security features include HTTPS (TLS 1.2) and SNMPv3, and Class I Division 2 and ATEX hazardous location certifications make it suitable for demanding industrial automation and remote monitoring deployments.

Features

- Tool-free installation and removal
- Web-based configuration and reconfiguration
- Built-in Modbus RTU gateway function
- Supports Modbus TCP, SNMP, RESTful API and MQTT
- SNMPv3, SNMPv3 Trap and SNMPv3 Inform with SHA-2 encryption
- Supports up to 32 ioThinx 4500 Series I/O modules
- HTTPS (TLS 1.2) secure web access
- Class I Division 2 and ATEX Zone 2 certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1 MAC address (Ethernet bypass)
- 1 x RS-232/422 or 2 x RS-485 (2-wire) serial port, spring-type Euroblock terminal
- Supports up to 32 I/O modules (ioThinx 4500 Series 45MR only)
- Protocols: Modbus TCP Server, Modbus RTU Master, SNMPv1/v2c/v3, MQTT, RESTful API
- Serial baudrates: 1200 to 115200 bps, RTS/CTS flow control
- System power input: 12 to 48 VDC, 800 mA @ 12 VDC
- Field power input: 12/24 VDC, 2 A max. output
- Isolation: 3k VDC or 2k Vrms
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 42.3 x 99 x 75 mm, weight 173.5 g
- DIN-rail mounting, plastic housing
- Certifications: Class I Division 2, ATEX, UL 61010-2-201, RoHS, CRoHS, WEEE

FAQs

Q: Which I/O modules are compatible with the ioThinx 4510?
A: It works only with ioThinx 4500 Series (45MR) I/O modules, and supports up to 32 of them. When HTTPS and other services are enabled in firmware v1.4 and higher, up to 8 slots are supported.

Q: What serial interfaces does the ioThinx 4510 provide?
A: It has one serial port configurable as RS-232/422 or as two RS-485 (2-wire) ports, with a spring-type Euroblock terminal connector.

Q: Which protocols does it support?
A: It supports Modbus TCP Server, Modbus RTU Master, SNMPv1/v2c/v3, MQTT and RESTful API.

Q: What is the operating temperature range?
A: This standard temperature model operates from -20 to 60°C. A wide-temperature model, the ioThinx 4510-T, is available for -40 to 75°C environments.

Q: How is the ioThinx 4510 configured and powered?
A: Configuration is via the web console (HTTP/HTTPS), the IOxpress Windows utility or the MCC Tool. System power is 12 to 48 VDC and field power is 12/24 VDC.

Q: Is it suitable for hazardous locations?
A: Yes, it carries Class I Division 2 and ATEX certifications for hazardous location installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
