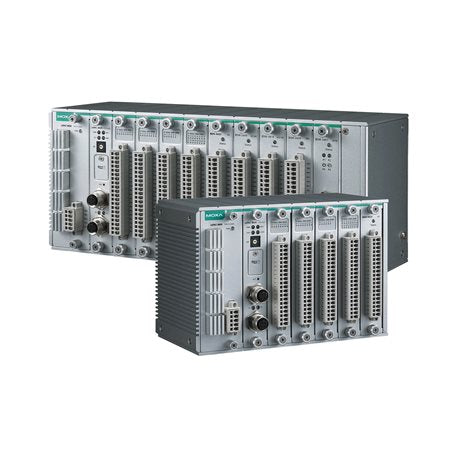

Moxa ioPAC 8600-BM012-T | ioPAC 8600 12-Slot Rugged Backplane Module, -40 to 75°C

Authorised Moxa Partner

SKU:ioPAC 8600-BM012-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioPAC 8600-BM012-T is a 12-slot rugged backplane module for the ioPAC 8600 series of modular programmable controllers, built for rail and other harsh industrial environments. It operates across an extended -40 to 75°C temperature range and uses a metal housing for durable deployment where standard controller chassis would not cope.

The backplane accepts CPU, power and 85M/86M I/O modules, letting you build a controller configuration to suit the application. It supports redundant power modules with dual power inputs and is certified to EN 50121-4 and EN 50155 for railway use, with UL 508 safety approval and wall mounting available with an optional kit.

Features

- Modular CPU, power and backplane design supporting 85M/86M modules
- Tag-centric design with ready-to-run services
- Supports C/C++ and IEC 61131-3 programming languages
- Compact, lightweight design
- Supports redundant power module with dual power inputs
- Compatible with 24 to 110 V DI/O modules and universal power input range modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 slots
- Metal housing
- Dimensions: 436.8 x 132.2 x 100 mm (17.19 x 5.2 x 3.94 in)
- Weight: 4,550 g (10.03 lb)
- Installation: wall mounting (with optional kit)
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 2000 m
- EMC: EN 55032/35, EN 61000-6-2/-6-4; FCC Part 15B Class A
- Railway: EN 50121-4, EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6

FAQs

Q: How many modules can the ioPAC 8600-BM012-T hold?
A: It provides 12 slots for CPU, power and 85M/86M I/O modules, so you can configure the controller to suit the application.

Q: What temperature range does this backplane support?
A: It operates from -40 to 75°C (-40 to 167°F) and can be stored from -40 to 85°C (-40 to 185°F).

Q: Is it suitable for railway applications?
A: Yes. It is certified to EN 50121-4 and EN 50155 for railway environments and meets IEC 60068-2-27 shock and IEC 60068-2-6 vibration standards.

Q: Which programming languages are supported?
A: The ioPAC 8600 platform supports C/C++ and IEC 61131-3 programming languages.

Q: Does it support redundant power?
A: Yes. The ioPAC 8600 series supports a redundant power module with dual power inputs.

Q: How is the backplane mounted?
A: It is designed for wall mounting with an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
