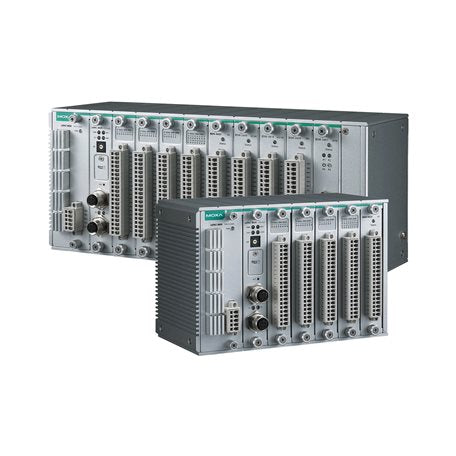

Moxa ioPAC 8600-BM005-T | ioPAC 8600 Rugged Controller Base, 5 Slots, -40 to 75°C

Authorised Moxa Partner

SKU:ioPAC 8600-BM005-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioPAC 8600-BM005-T is a rugged 5-slot controller base (backplane) for the ioPAC 8600 modular programmable controller series. Built in a metal housing with a -40 to 75°C operating temperature range, it suits demanding industrial and railway applications where reliability in extreme conditions is essential.

The base accepts the ioPAC 8600 modular CPU, power and I/O modules, including 85M and 86M modules, and supports a redundant power module with dual power inputs. It carries EN 50155 and EN 50121-4 railway approvals and UL 508 safety certification, with a compact, lightweight 205.65 x 133.35 x 100 mm form factor suited to wall mounting with the optional kit.

Features

- Modular CPU, power and backplane design supporting 85M and 86M modules
- Tag-centric design with ready-to-run services
- Supports C/C++ and IEC 61131-3 programming languages
- Compact, lightweight design
- Supports a redundant power module with dual power inputs
- Compatible with 24 to 110 V DI/O modules and universal power input range modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5 module slots
- Metal housing
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in)
- Weight: 2,560 g (5.64 lb)
- Installation: wall mounting (with optional kit)
- Altitude: 2000 m
- Railway: EN 50121-4, EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- EMC immunity: IEC 61000-4-2, -3, -4, -5, -6, -8

FAQs

Q: How many modules can the ioPAC 8600-BM005-T hold?
A: It provides 5 module slots for ioPAC 8600 series CPU, power and I/O modules.

Q: What temperature range does this base support?
A: It operates from -40 to 75°C (-40 to 167°F), making it suitable for harsh industrial and railway environments.

Q: Is it certified for railway use?
A: Yes. It meets EN 50155 and EN 50121-4 railway standards and also carries UL 508 safety certification.

Q: Which programming languages does the ioPAC 8600 platform support?
A: The platform supports C/C++ and IEC 61131-3 programming languages.

Q: Can I use redundant power with this base?
A: Yes. The ioPAC 8600 platform supports a redundant power module with dual power inputs.

Q: How is the base mounted?
A: It is designed for wall mounting using the optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
