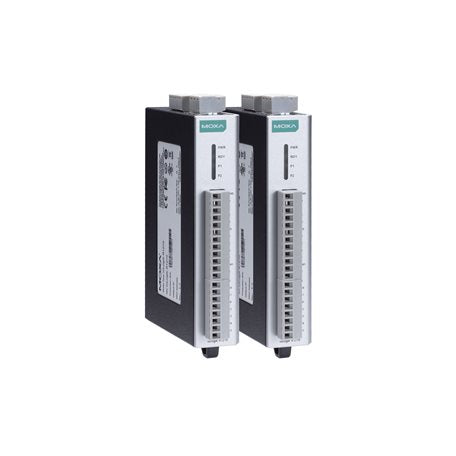

Moxa ioLogik R1241-T | ioLogik R1200 Remote I/O, 4x Analog Output, RS-485

Authorised Moxa Partner

SKU:ioLogik R1241-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik R1241-T is a wide-temperature RS-485 serial remote I/O unit with 4 analog output channels, built for industrial automation and process control. It supports 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA output ranges at 12-bit resolution, and operates from -40 to 85°C, making it suited to harsh and unheated environments such as outdoor cabinets, pump stations and factory floors.

Two RS-485 ports with Modbus RTU server (slave) support provide wiring and computer redundancy, with a built-in repeater for multidrop networks. Communication parameters and firmware can be installed or upgraded over USB or an RS-485 connection, and configuration is handled through the ioSearch utility. The unit mounts on a DIN rail or a wall and accepts a 12 to 48 VDC power input.

Features

- Dual RS-485 remote I/O with built-in repeater
- Dual RS-485 ports allow wiring and computer redundancy
- Supports the installation of multidrop communications parameters
- Communications parameters and firmware can be installed or upgraded via USB
- Firmware can be upgraded through an RS-485 connection
- Configuration via the ioSearch utility
- Wide operating temperature (-40 to 85°C) for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog output channels (0 to 10 VDC, 0 to 20 mA, 4 to 20 mA)
- 12-bit analog output resolution
- Output accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 to 75°C
- Internal load resistor 400 ohms (24 V external power required when loading exceeds 1,000 ohms)
- Voltage output: 10 mA (max.)
- Isolation: 3k VDC or 2k Vrms
- 2 x RS-485 ports, Modbus RTU Server (slave)
- Serial baudrate: 1200 bps to 921.6 kbps
- Serial surge protection 1 kV, ESD 15 kV
- Input voltage: 12 to 48 VDC
- Power consumption: 343 mA @ 24 VDC
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% (non-condensing)
- Dimensions: 27.8 x 124 x 84 mm
- Weight: 200 g
- DIN-rail or wall mounting
- LED indicators: PWR, RDY, P1, P2
- Safety: UL 508; EMC: EN 55032/24
- MTBF: 1,239,293 hrs (Telcordia SR332)

FAQs

Q: What analog output ranges does the ioLogik R1241-T support?
A: It provides 4 analog output channels supporting 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA at 12-bit resolution.

Q: What communication protocol does it use?
A: It communicates as a Modbus RTU server (slave) over its two RS-485 ports, with baudrates from 1200 bps to 921.6 kbps.

Q: What is the operating temperature range?
A: The R1241-T is a wide-temperature model rated for -40 to 85°C (-40 to 185°F), suitable for harsh industrial environments.

Q: What power supply does it require?
A: It runs from a 12 to 48 VDC input via a screw-fastened Euroblock terminal, drawing 343 mA at 24 VDC.

Q: How is the unit configured and updated?
A: Communication parameters and firmware can be installed or upgraded via USB, and firmware can also be upgraded over an RS-485 connection. Configuration is done with the ioSearch utility.

Q: How can it be mounted?
A: The unit supports both DIN-rail and wall mounting, with a compact 27.8 x 124 x 84 mm plastic housing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
