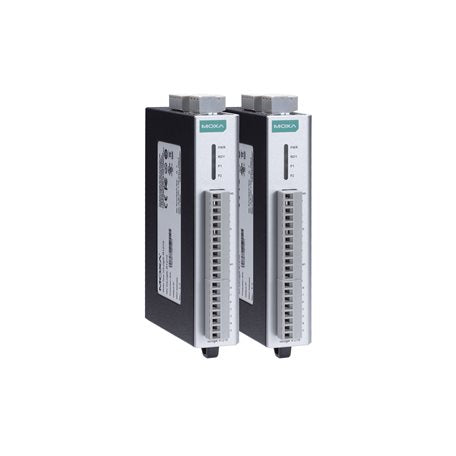

Moxa ioLogik R1240 | Remote I/O Module, 8x AI, RS-485

Authorised Moxa Partner

SKU:ioLogik R1240

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik R1240 is a serial remote I/O module with 8 differential analog input channels that accept voltage or current signals, built for connecting field sensors to a Modbus RTU network. It offers 16-bit resolution, input ranges of 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA, and dual RS-485 ports, in the standard -10 to 75°C temperature version.

The unit operates as a Modbus RTU server (slave) and can be configured and firmware-updated over USB or RS-485 using the ioSearch utility. A built-in repeater function and multidrop parameter installation simplify larger serial deployments, and the compact plastic housing mounts on a DIN rail or wall, powered from 12 to 48 VDC.

Features

- Dual RS-485 remote I/O with built-in repeater
- Supports multidrop communications parameter installation
- Install communications parameters and upgrade firmware via USB
- Upgrade firmware through an RS-485 connection
- Configure and update devices through the ioSearch utility
- Compact housing with DIN-rail or wall mounting
- Screw-fastened Euroblock terminals for I/O and power wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels, differential, voltage or current mode
- 16-bit analog input resolution
- Input ranges: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA with burn-out detection
- Input accuracy: ±0.1% FSR at 25°C, ±0.3% FSR at -10 to 60°C
- Sampling rate: 12 samples/sec total across all channels, 1.5 samples/sec per channel
- Built-in 120 ohm resistor for current input, input impedance 10 mega-ohms (min.)
- 2 x RS-485 serial ports, terminal block, 1200 bps to 921.6 kbps
- Pull high/low resistor selectable: 1 kilo-ohm or 150 kilo-ohms
- Serial surge protection 1 kV, ESD protection 15 kV
- Protocol: Modbus RTU server (slave)
- Power input: 12 to 48 VDC, 216 mA at 24 VDC
- Isolation: 3k VDC or 2k Vrms
- LED indicators: PWR, RDY, P1, P2, plus reset button
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- Mounting: DIN-rail or wall
- Operating temperature: -10 to 75°C, humidity 5 to 95% non-condensing
- Approvals: UL 508, CISPR 32, FCC Part 15B Class A, RoHS, CRoHS, WEEE
- MTBF: 1,239,293 hours (Telcordia SR332)
- Warranty: 5 years

FAQs

Q: What type of signals can the ioLogik R1240 read?
A: It has 8 differential analog input channels that accept voltage or current signals, with ranges of 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA (the 4 to 20 mA range also supports burn-out detection).

Q: Which protocol does it use to communicate?
A: It operates as a Modbus RTU server (slave) over its two RS-485 ports, so it needs a Modbus RTU master such as a PLC, gateway or SCADA system to poll it.

Q: How is the ioLogik R1240 configured and updated?
A: Communications parameters can be installed and firmware upgraded over USB, and firmware can also be upgraded through an RS-485 connection. The ioSearch utility is used to configure and update devices.

Q: What power supply does it require?
A: It runs from a single 12 to 48 VDC input and draws 216 mA at 24 VDC. Power is connected through a screw-fastened Euroblock terminal.

Q: What operating temperature range does this model support?
A: This standard model operates from -10 to 75°C. A separate -T variant is available for wide-temperature environments.

Q: How can it be mounted?
A: The compact plastic housing supports DIN-rail or wall mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
