Moxa ioLogik R1214 | RS-485 Remote I/O Module, 6 DI, 6 Relay

Authorised Moxa Partner

SKU:ioLogik R1214

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

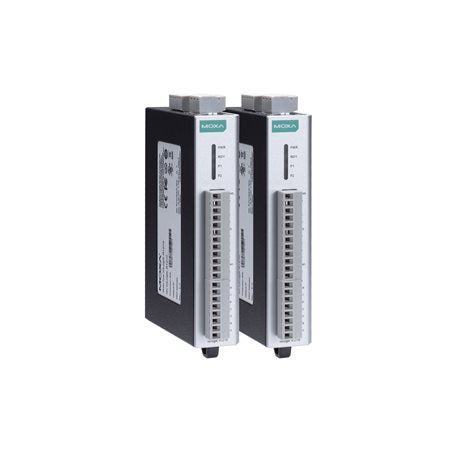

The Moxa ioLogik R1214 is a universal RS-485 remote I/O module with 6 digital inputs and 6 Form A relay outputs, built for DIN-rail installation in standard-temperature industrial environments rated from -10 to 75°C. It communicates over dual RS-485 ports using Modbus RTU Slave, making it a straightforward way to extend I/O to PLCs, SCADA systems and data loggers across factory, utility and building automation sites.

The six digital inputs support dry contact or wet contact (NPN/PNP) wiring and can operate in DI or event counter mode at up to 2.5 kHz, while the power relays are rated for 5,000,000 operations. Serial ports are protected with 1 kV surge and 15 kV ESD protection, and the module accepts a wide 12 to 48 VDC supply. This standard-temperature model suits cabinets and control rooms, with a separate wide-temperature variant available for environments from -40 to 85°C.

Features

- Dual RS-485 ports with a built-in repeater, allowing quick changeover if one port is damaged
- Communication parameters and firmware can be set via USB
- Firmware can be upgraded through an RS-485 connection
- Multidrop communication parameters can be installed
- Easy-to-use software interface for maintenance
- Hardware design reduces deployment effort and supports backup and redundancy

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x digital inputs (dry contact, or wet contact NPN/PNP), DI or event counter mode, 2.5 kHz counter frequency
- 6 x Form A (N.O.) power relay outputs, 0.3 Hz pulse output at rated load, 5,000,000 operations
- 2 x RS-485 (2-wire) serial ports on terminal block, Modbus RTU Slave
- Baud rates 1200 to 921600 bps
- 1 kV surge and 15 kV ESD serial protection
- Power input 12 to 48 VDC, 207 mA @ 24 VDC
- Operating temperature -10 to 75°C, storage -40 to 85°C
- Humidity 5 to 95% non-condensing
- Dimensions 27.8 x 124 x 84 mm, weight 200 g, plastic housing
- DIN-rail or wall mounting
- Isolation 3 kVDC or 2 kVrms
- MTBF 1,239,293 hrs (Telcordia SR332)
- Certifications and standards: UL 508, CE, FCC Part 15B Class A, EN 55032/24, IEC 61000-4-2/3/4/5/6/8
- LED indicators: PWR, RDY, P1, P2

FAQs

Q: What communication protocol does the ioLogik R1214 use?
A: It operates as a Modbus RTU Slave over its two RS-485 (2-wire) serial ports, so it connects to any Modbus RTU master such as a PLC, SCADA system or gateway.

Q: What is the operating temperature range of the ioLogik R1214?
A: This model operates from -10 to 75°C. The -T variant of the ioLogik R1214 is the wide-temperature version, covering -40 to 85°C, for harsher environments.

Q: What input and output types does the ioLogik R1214 provide?
A: It has 6 digital inputs supporting dry contact or wet contact (NPN/PNP) with DI or event counter mode, and 6 Form A (N.O.) power relay outputs rated for 5,000,000 operations.

Q: What power supply does the ioLogik R1214 require?
A: It accepts 12 to 48 VDC and draws 207 mA at 24 VDC. A DC power supply is needed separately.

Q: How is the ioLogik R1214 mounted and configured?
A: It mounts on a DIN rail or a wall. Communication parameters and firmware can be set over USB, and firmware can also be upgraded through the RS-485 connection.

Q: Can the digital inputs count pulses?
A: Yes. Each digital input can run in DI mode or event counter mode, with a counter frequency of up to 2.5 kHz.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
