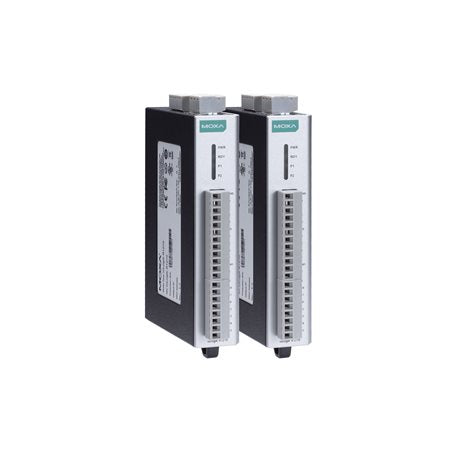

Moxa ioLogik R1214-T | ioLogik R1200 Remote I/O, 6 DIs, 6 Relays, RS-485, -40 to 85°C

Authorised Moxa Partner

SKU:ioLogik R1214-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioLogik R1214-T is an RS-485 serial remote I/O unit from the ioLogik R1200 series, combining 6 digital inputs and 6 Form A power relay outputs in one compact module. This -T variant is rated for -40 to 85°C wide temperature operation, making it suited to outdoor cabinets, factory floors and other harsh industrial environments.

It communicates as a Modbus RTU slave over a 2-wire RS-485 interface with two terminal block ports, so it integrates easily with PLCs, SCADA systems and serial gateways. The digital inputs accept dry contact or wet contact NPN/PNP sensors and can operate as event counters, while the relays handle resistive loads up to 5 A. It runs from a 12 to 48 VDC supply and mounts on a DIN-rail or wall.

Features

- Universal I/O with 6 DIs and 6 relays in a single unit
- Wide operating temperature range of -40 to 85°C
- Modbus RTU slave over RS-485 for easy PLC and SCADA integration
- DI channels can be used as event counters
- Reset button and PWR, RDY, P1 and P2 LED indicators for quick diagnostics
- Serial surge protection (1 kV) and ESD protection (15 kV)
- DIN-rail and wall mounting options

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x digital inputs, dry contact or wet contact (NPN/PNP)
- 6 x Form A (N.O.) power relay outputs
- Relay rating: 5 A resistive load @ 30 VDC, 250 VAC, 110 VAC
- Relay electrical endurance: 100,000 operations @ 5 A; mechanical endurance: 5,000,000 operations
- DI counter frequency: 2.5 kHz, software configurable filtering
- Isolation: 3k VDC or 2k Vrms
- RS-485 serial (2-wire), 2 terminal block ports, 1200 to 921600 bps
- Protocol: Modbus RTU Slave
- Input voltage: 12 to 48 VDC, 207 mA @ 24 VDC
- Operating temperature: -40 to 85°C
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting
- Certifications: UL 508, FCC Part 15B Class A, CISPR 32, EN 55032/24, RoHS, CRoHS, WEEE
- MTBF: 1,239,293 hrs (Telcordia SR-332)

FAQs

Q: What communication protocol does the ioLogik R1214-T support?
A: It operates as a Modbus RTU slave over a 2-wire RS-485 serial interface, with baud rates from 1200 to 921600 bps.

Q: What type of relay outputs does it provide?
A: It has 6 Form A (N.O.) power relay outputs rated for resistive loads of 5 A at 30 VDC, 250 VAC or 110 VAC.

Q: Can it connect to both dry contact and wet contact sensors?
A: Yes. The 6 digital inputs support dry contact and wet contact (NPN or PNP) sensors and can also work as event counters up to 2.5 kHz.

Q: What does the -T in the model name mean?
A: The -T variant is rated for wide temperature operation from -40 to 85°C, suitable for harsh industrial environments.

Q: What power supply does the unit require?
A: It uses a single 12 to 48 VDC input via a screw-fastened Euroblock terminal, drawing 207 mA at 24 VDC.

Q: How is the ioLogik R1214-T mounted?
A: It can be mounted on a DIN-rail or directly on a wall.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
