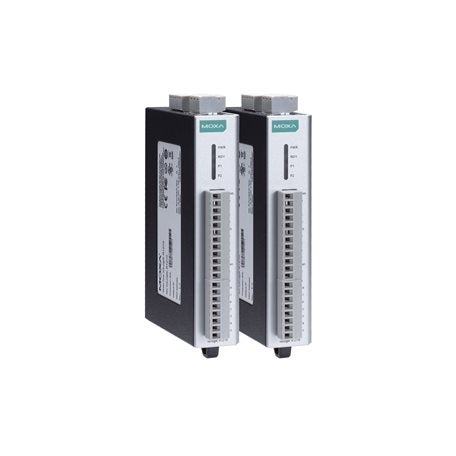

Moxa ioLogik R1212 | Remote I/O Module, 8 DI, 8 DIO, RS-485

Authorised Moxa Partner

SKU:ioLogik R1212

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik R1212 is an RS-485 remote I/O module with 8 digital inputs and 8 software-configurable DIO channels, designed for industrial monitoring and control. It communicates over Modbus RTU as a slave device, making it straightforward to bring field signals into PLC, SCADA and DCS systems, and it operates across a -10 to 75°C temperature range.

Two RS-485-2w ports with a built-in repeater support redundant wiring and dual-PC backup topologies. Screw-fastened Euroblock terminals handle I/O and power connections, and the module mounts on a DIN rail or a wall. Communication parameters and firmware can be configured over USB, and the free ioSearch utility gives quick access to device status and settings.

Features

- Dual RS-485 ports with built-in repeater for redundant wiring or dual-PC backup topologies
- Configure communication parameters and upgrade firmware via USB
- Remote firmware upgrade over the RS-485 connection
- Free ioSearch utility for quick access to device status and settings
- Modbus RTU slave for integration with PLC, SCADA and DCS systems
- 8 DIO channels can be configured in software as inputs or outputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital inputs (DI)
- 8 x configurable DIO channels, software-selectable
- 2 x RS-485-2w ports (Data+, Data-, GND) with built-in repeater
- Protocol: Modbus RTU server (slave)
- Digital input counter frequency: 2.5 kHz
- Isolation: 3k VDC or 2k Vrms
- Input voltage: 12 to 48 VDC, 1 power input
- Power consumption: 187 mA @ 24 VDC
- Operating temperature: -10 to 75°C (14 to 167°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Screw-fastened Euroblock terminals for I/O and power
- DIN-rail or wall mounting
- MTBF: 1,239,293 hrs (Telcordia SR-332)
- Safety: UL 508; EMC: EN 55032/24, FCC Part 15B Class A

FAQs

Q: What communication protocol does the ioLogik R1212 use?
A: It operates as a Modbus RTU server (slave) over its RS-485 ports, so it integrates with PLC, SCADA and DCS systems that act as Modbus RTU masters.

Q: How many I/O channels does the ioLogik R1212 provide?
A: It provides 8 dedicated digital inputs and 8 DIO channels that can be configured in software.

Q: What is the operating temperature range?
A: This model operates from -10 to 75°C. A wide-temperature variant, the ioLogik R1212-T, is available for environments from -40 to 85°C.

Q: What is the purpose of the two RS-485 ports?
A: The dual RS-485 ports include a built-in repeater, which supports redundant wiring or dual-PC backup topologies.

Q: What power supply does it need?
A: It accepts 12 to 48 VDC through a single power input, drawing 187 mA at 24 VDC.

Q: How do I configure the module and update its firmware?
A: Communication parameters and firmware upgrades can be handled over USB, and firmware can also be upgraded remotely over the RS-485 connection. The free ioSearch utility gives access to device status and settings.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
