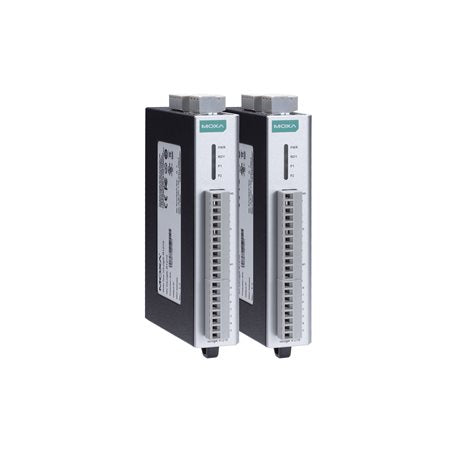

Moxa ioLogik R1212-T | ioLogik R1200 Remote I/O Module, 8 DI + 8 DIO, RS-485, -40 to 85°C

Authorised Moxa Partner

SKU:ioLogik R1212-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik R1212-T is a wide-temperature RS-485 remote I/O module with 8 digital inputs and 8 configurable digital input/output channels, communicating over Modbus RTU. Rated for operation from -40 to 85°C, it suits industrial edge connectivity in harsh environments such as outdoor cabinets, factory floors and utility installations.

The digital inputs support wet contact (NPN/PNP) and dry contact signals and can be used as event counters at up to 2.5 kHz. The DIO channels can be freely configured as inputs or outputs, and two RS-485 ports allow the module to be daisy-chained. It runs from a 12-48 VDC supply and mounts on a DIN rail or wall using terminal block connections.

Features

- Universal I/O module for industrial edge connectivity
- Extended wide-temperature design (-T) for harsh environments
- Digital input channels can be used as event counters
- DIO channels configurable freely as inputs or outputs
- Daisy-chainable via RS-485 (2 ports)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital inputs (wet contact NPN/PNP and dry contact; DI or event counter, 2.5 kHz)
- 8 x DIO channels (configurable as digital outputs)
- RS-485 interface, 2 ports, Modbus RTU
- Supply voltage 12-48 VDC
- Current consumption 187 mA @ 24 VDC
- Operating temperature -40 to 85°C
- DIN-rail or wall mounting
- Terminal block connection
- Dimensions approx. 28 x 124 x 84 mm (W x H x D)

FAQs

Q: What communication protocol does the ioLogik R1212-T use?
A: It communicates over RS-485 using Modbus RTU, and has two RS-485 ports so units can be daisy-chained.

Q: What is the operating temperature range?
A: The -T variant is rated for -40 to 85°C, making it suitable for harsh and outdoor industrial environments.

Q: Can the digital inputs be used as counters?
A: Yes. The digital input channels can be configured as event counters with a frequency of up to 2.5 kHz.

Q: Can the DIO channels be used as outputs?
A: Yes. The 8 DIO channels can be freely configured as digital inputs or outputs to suit your wiring needs.

Q: What power supply does it require?
A: It operates from 12-48 VDC, with a current consumption of 187 mA at 24 VDC.

Q: How is the module mounted?
A: It can be mounted on a DIN rail or directly on a wall, and connections are made through terminal blocks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
