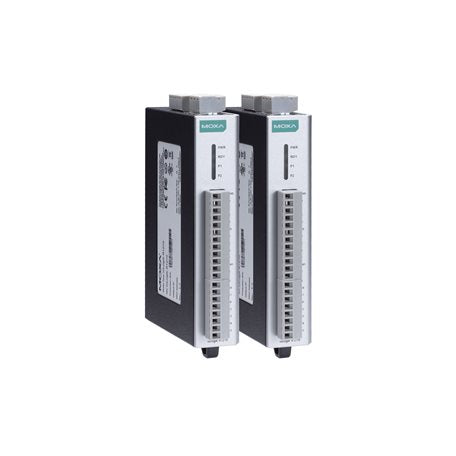

Moxa ioLogik R1210-T | 16-DI RS-485 I/O Module, -40 to 85°C

Authorised Moxa Partner

SKU:ioLogik R1210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik R1210-T is a wide-temperature RS-485 remote I/O module with 16 digital inputs, built for cost-effective industrial monitoring and control over Modbus RTU. Rated for -40 to 85°C operation, this -T variant suits unheated cabinets, outdoor enclosures and other harsh sites where the standard ioLogik R1210 (-10 to 75°C) is not suitable.

It provides dual RS-485 ports with a built-in repeater, supports Modbus RTU/ASCII and DCON protocols, and accepts wet contact (NPN/PNP) and dry contact inputs in either DI or event counter mode. Configuration and firmware upgrades can be done over USB or the RS-485 connection, and the unit mounts on a DIN rail with a screw-fastened Euroblock terminal connector.

Features

- Dual RS-485 remote I/O with built-in repeater
- Supports multidrop installation of communication parameters
- Install communication parameters and upgrade firmware via USB
- Upgrade firmware over the RS-485 connection
- Wide operating temperature (-40 to 85°C) for harsh environments
- Software-configurable digital filtering time interval
- Easy-to-use ioSearch software for status and settings access

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital input channels (wet contact NPN/PNP and dry contact)
- DI or event counter mode, 2.5 kHz counter frequency
- 8 points per COM
- Dual RS-485 ports with built-in repeater
- Protocols: Modbus RTU/ASCII, DCON
- Screw-fastened Euroblock terminal connector
- Isolation: 3k VDC or 2k Vrms
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Power input: 12 to 36 VDC
- Configuration and firmware upgrade via USB
- DIN-rail mounting

FAQs

Q: What is the difference between the ioLogik R1210-T and the standard ioLogik R1210?
A: Both provide 16 digital inputs over RS-485. The -T model is rated for -40 to 85°C, while the standard ioLogik R1210 is rated for -10 to 75°C.

Q: Which protocols does the ioLogik R1210-T support?
A: It supports Modbus RTU/ASCII and DCON over its RS-485 ports.

Q: What types of digital input can it connect to?
A: The 16 digital inputs accept wet contact (NPN/PNP) and dry contact signals, and can operate in DI mode or as event counters up to 2.5 kHz.

Q: How is the ioLogik R1210-T configured and updated?
A: Communication parameters and firmware can be installed via USB, and firmware can also be upgraded over the RS-485 connection. The ioSearch software provides access to status and settings.

Q: What power supply does it require?
A: It operates from a 12 to 36 VDC power input.

Q: How is the module mounted?
A: It is designed for DIN-rail mounting and uses a screw-fastened Euroblock terminal connector for wiring.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
