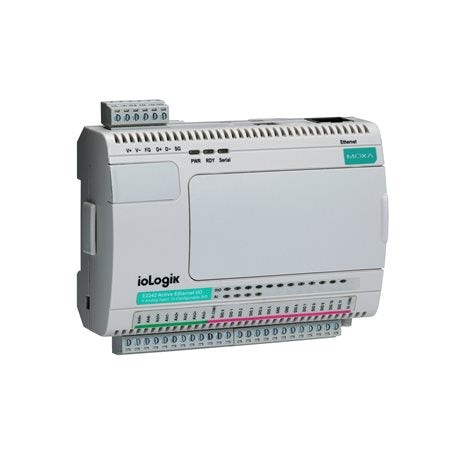

Moxa ioLogik E2262 | ioLogik E2200 Ethernet Remote I/O, 8 TC, 4 DO, Click&Go

Authorised Moxa Partner

SKU:ioLogik E2262

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E2262 is an Ethernet remote I/O unit with 8 thermocouple inputs and 4 digital outputs, built for temperature monitoring and simple control in industrial automation. It supports thermocouple types J, K, T, E, R, S, B and N with 16-bit resolution, and the 4 sink-type digital outputs are rated at 200 mA per channel. This standard temperature model operates from -10 to 60°C.

Front-end intelligence comes from Click&Go control logic with up to 24 rules, allowing PC-free event-driven reports and alarms over email, TCP/UDP or SNMP traps. It communicates over Modbus TCP and SNMP v1/v2c/v3, includes an RS-485-2w serial port acting as a Modbus RTU master, and mounts on a DIN rail or a wall. A wide-temperature -T variant (-40 to 75°C) is available as a separate SKU.

Features

- Click&Go control logic with up to 24 rules for front-end intelligence
- PC-free event-driven reports and alarms via email, TCP/UDP or SNMP traps
- Modbus TCP server and SNMP v1/v2c/v3 support
- Active communication with MX-AOPC UA Server
- Peer-to-peer communications save time and wiring costs
- Web browser configuration and ioAdmin Windows utility
- MXIO library simplifies I/O management for Windows or Linux
- Virtual channels for average and deviation of temperature sensors via ioAdmin
- Over-current, over-temperature and over-voltage protection on digital outputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x thermocouple input channels (J, K, T, E, R, S, B, N)
- 4 x digital output channels, sink type, 200 mA per channel
- Millivolt input ranges: ±19.532 mV, ±39.062 mV, ±78.126 mV
- 16-bit resolution
- Sampling rate: 12 samples/sec across all channels (1.5 samples/sec per channel)
- Pulse output frequency: 1 kHz
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- 1 x RS-485-2w serial port (Modbus RTU Master)
- Isolation: 3k VDC or 2k Vrms
- Input voltage: 12 to 36 VDC, 160 mA @ 24 VDC
- Screw-fastened Euroblock terminals for I/O and power
- Real-time clock with battery backup
- Dimensions: 115 x 79 x 45.6 mm, weight 250 g
- DIN-rail and wall mounting
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Safety: UL 508
- MTBF: 341,063 hrs (Telcordia SR332)

FAQs

Q: Which thermocouple types does the ioLogik E2262 support?
A: It supports types J, K, T, E, R, S, B and N, as well as millivolt inputs of ±19.532 mV, ±39.062 mV and ±78.126 mV.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C. A wide-temperature -T variant rated -40 to 75°C is available as a separate SKU.

Q: Can it operate without a PC or PLC?
A: Yes. Click&Go control logic supports up to 24 rules and can send event-driven reports and alarms over email, TCP/UDP or SNMP traps without a PC.

Q: Which protocols and management options are supported?
A: It supports Modbus TCP server, SNMP v1/v2c/v3, SNMP trap, Moxa AOPC, the MXIO library and CGI commands. Configuration is via the ioAdmin Windows utility or a web console.

Q: What are the digital outputs rated for?
A: There are 4 sink-type digital outputs, each rated at 200 mA, and they can be used as standard DO or as pulse outputs up to 1 kHz.

Q: What power supply does it need?
A: It runs from 12 to 36 VDC via a screw-fastened Euroblock terminal and draws 160 mA at 24 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
