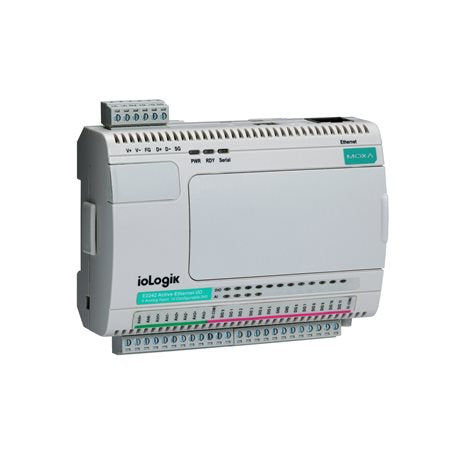

Moxa ioLogik E2262-T | Smart Ethernet Remote I/O, 8 TCs, 4 DOs, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E2262-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E2262-T is a rugged universal controller and smart Ethernet remote I/O unit with 8 thermocouple inputs and 4 digital outputs, built around Click&Go control logic. This wide-temperature model operates from -40 to 75°C, making it suited to temperature monitoring and control in harsh industrial environments, energy and facility monitoring, and machine OEM applications.

A wide set of OT and IT protocols, including Modbus TCP, SNMP and Moxa AOPC, supports integration into IIoT applications, while an RS-485 serial port, real-time clock with battery backup and DIN-rail or wall mounting simplify deployment.

Features

- Click&Go control logic with active monitoring technology
- Supports a versatile set of OT/IT protocols for IIoT applications
- Suited to energy monitoring, facility monitoring and machine OEM applications
- Rotary switch (0 to 9) and reset button
- Screw-fastened Euroblock terminal connectors
- Wide-temperature (-T) model for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x thermocouple input channels
- 4 x digital output channels (sink type, DO or pulse output)
- DO current rating: 200 mA per channel
- DO pulse output frequency: 1 kHz
- DO over-current protection: 0.65 A per channel at 25°C
- DO over-temperature shutdown: 175°C (min.)
- Control logic language: Click&Go
- Isolation: 3k VDC or 2k Vrms
- 1 x RS-485 serial port (terminal block), 1200 to 115200 bps
- Modbus TCP Server (Slave), functions 1, 2, 3, 4, 5, 6, 15, 16
- Protocols: SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands, BOOTP, DHCP Client, HTTP, SMTP, SNTP
- Real-time clock with battery backup
- Power input: 12 to 36 VDC, 160 mA at 24 VDC
- Dimensions: 115 x 79 x 45.6 mm
- Weight: 250 g
- Installation: DIN-rail or wall mounting
- Operating temperature: -40 to 75°C

FAQs

Q: What operating temperature range does the ioLogik E2262-T support?
A: As a wide-temperature (-T) model, it operates from -40 to 75°C, suitable for harsh industrial environments.

Q: How many thermocouple inputs and digital outputs does it provide?
A: It provides 8 thermocouple input channels and 4 sink-type digital output channels, each rated at 200 mA, with DO or pulse output operation.

Q: Which protocols does the ioLogik E2262-T support?
A: It supports Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands, BOOTP, DHCP Client, HTTP, SMTP and SNTP.

Q: What is Click&Go logic?
A: Click&Go is the control logic language used by this unit, allowing local control rules to run on the device without a separate controller.

Q: What power supply does it require?
A: It accepts a 12 to 36 VDC power input and draws 160 mA at 24 VDC.

Q: How is the unit mounted?
A: It can be installed on a DIN rail or mounted on a wall, and connects through screw-fastened Euroblock terminals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
